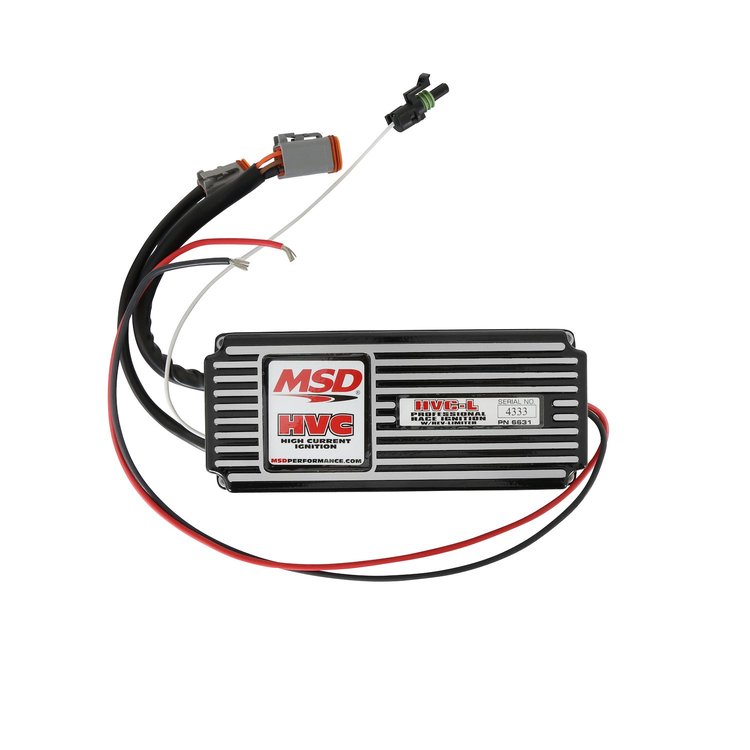

6 HVC-L Ignition Control Built-In Fast Rev Limiter

Name: 6 HVC-L Ignition Control Built-In Fast Rev Limiter
Brand: MSD IGNITION
SKU: 121-6631
Price: 853.95 USD
Availability: InStock

^$853⁹⁵$949.95You Save$96.00

Ships on Sep 04, 2026

Lowest Price Guarantee

Circle Track & Road Racing

Built-In Fast Rev Limiter
NASCAR-Approved Deutsch Connectors
CARB Approval: Non-Emissions Controlled
Black

WARNING FOR 6632: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

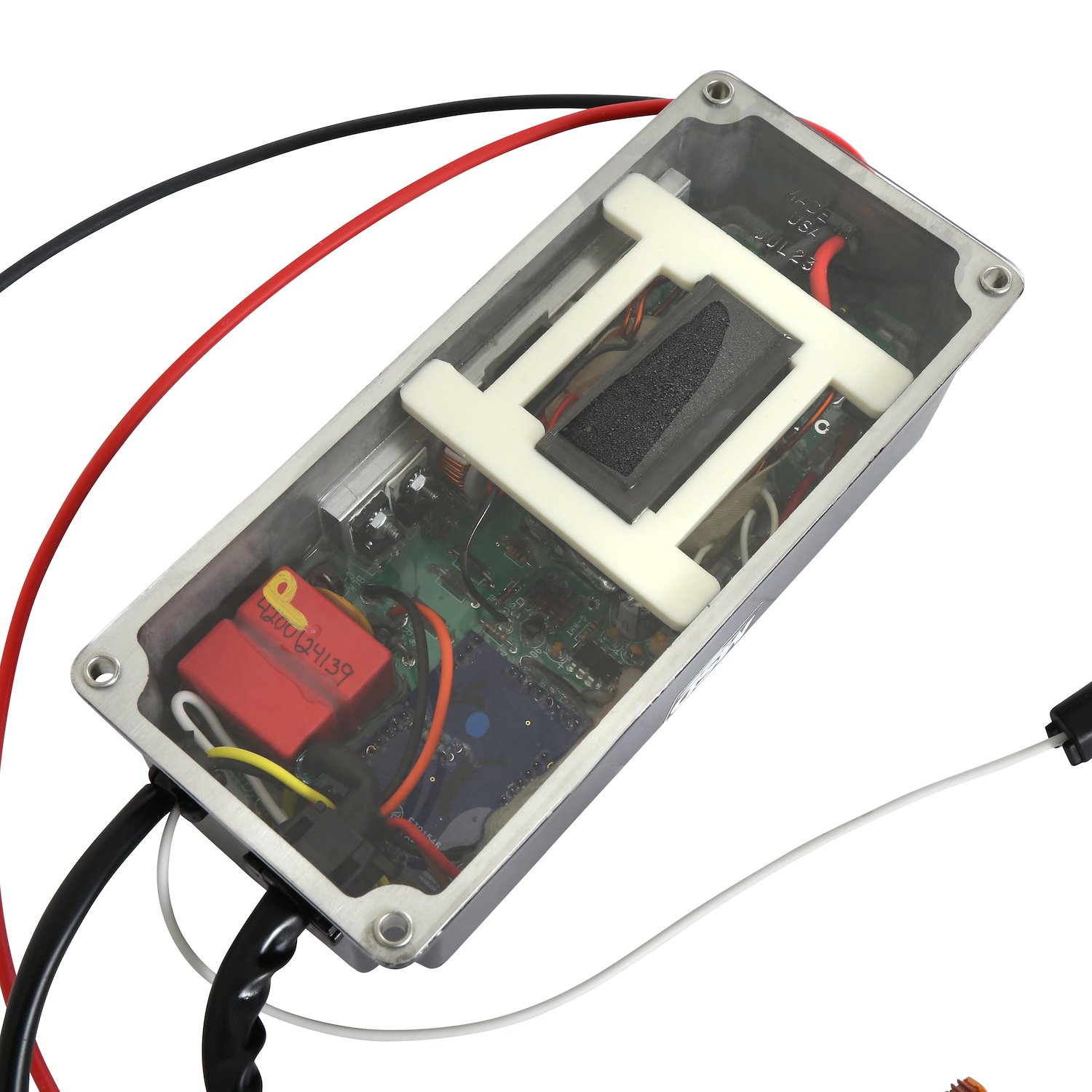

Professional race teams have been relying on the power and endurance of our 6 HVC Ignition Control and will be excited to see the addition of a rev limiter! The 6 HVC-L Ignition has a built-in rev limiter that will save the engine from overrev damaged caused by spins, missed shifts or driver misfortune. This means there is no need to mount an external rev control (i.e., less wiring and reduced weight)! The advanced component design and circuitry of the 6 HVC Ignitions produce incredible voltage with high current output. Internally there is an efficient heat sync, solid component mounting and it's all encased in a clear epoxy. The rpm limit is adjustable with plug-in modules and the wiring is routed into NASCAR approved Deutsch style MSD connectors.

Operating Specifications
Spark Energy: 150 mJ per spark
Primary Voltage: 550 volts
Secondary Voltage: 40,000 volts (tested with 6HVC Coil)
Spark Series Duration: 20° crankshaft rotation
RPM Range: 15,000 RPM with 14.4 volts
Voltage Required: 12-18 VDC Negative Ground
Current Draw: .7 amps per 1,000 RPM
Size: 8" L x 4" W x 2.25" H
Weight: 5.1 lbs
Note: Not legal for sale or use on pollution-controlled vehicles.
Includes built-in Fast rev limiter
Must be used with HVC Coil PN 8250
Built-in reverse polarity protection circuit
150 millijoules per spark up to 15,000 RPM
550 primary voltage output to coil
Accepts breaker points, amplifier and magnetic pickup trigger inputs
Multiple sparks for 20 degrees of crankshaft rotation

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

Part TypeIgnition Box

BrandMSD IGNITION

Package Height3.2

Package Width8.2

Package Length10.9

Weight4.95 PG

Part CategoryPerformance Parts

Ignition Box OutputCapacitive discharge

Rev LimiterYes

QuantitySold individually

Cd Voltage Output To Coil550 V
