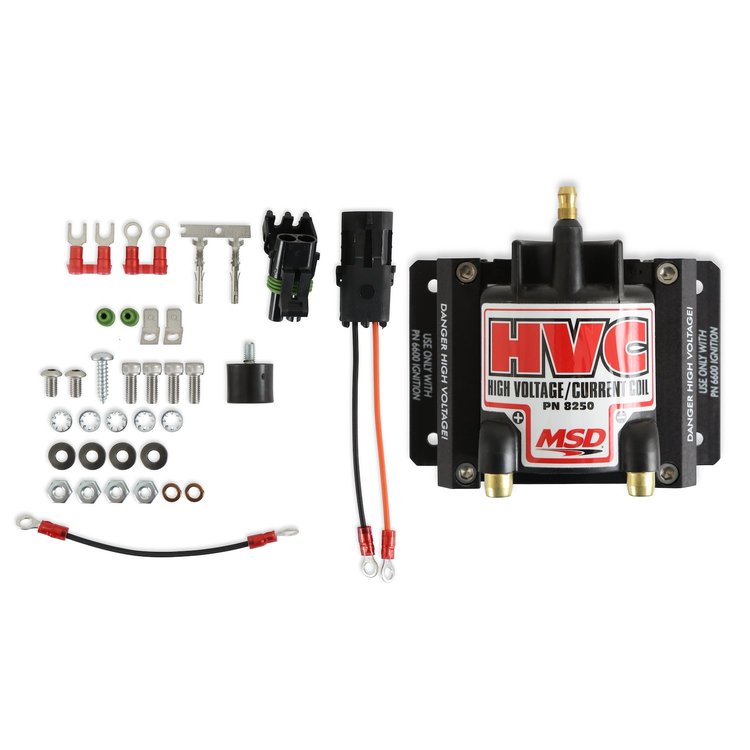

MSD 6 HVC Coil
• For Use With 6 HVC Ignitions
• Must Be Used With 121-6631

  The HVC Coil is designed exclusively for the HVC Professional Racing Ignition Control. The E-Core design of the HVC ignition coil is more efficient in producing more output with less loss. MSD 6 HVC Coil must be used with 121-6631)
  Coil Specs:
• Turns ratio: 100:1
• Primary resistance: .07 OHMs
• Secondary resistance: 360 OHMs
• Inductance: 3 mH
• Maximum voltage: 34,000 Volts (Tested with 6HVC Ignition)
• Peak current: 600 mA
• Spark duration: 200 uS

  Features:


• E-Core design produces more voltage and current while running 50% cooler than canister coils
• Massive laminations and windings are engineered for less energy loss
• Delivers high voltage to ionize the plug gap while the spark glows with high current
  Note: Not legal for sale or use on pollution-controlled vehicles.
• E-Core design produces more voltage and current while running 50 Percent cooler than canister coils
• Massive laminations and windings are engineered for less energy loss
• Delivers high voltage to ionize the plug gap while the spark glows with high current

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
