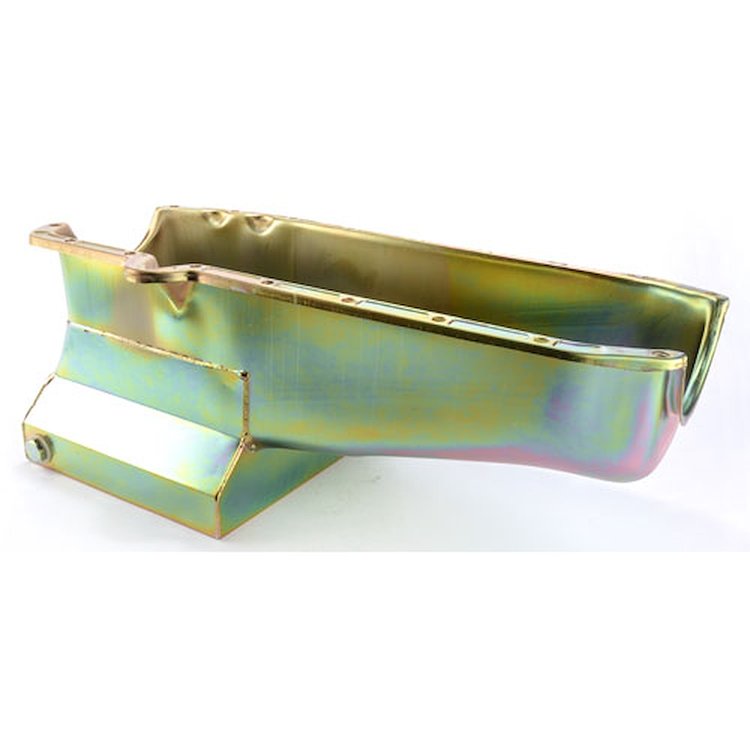

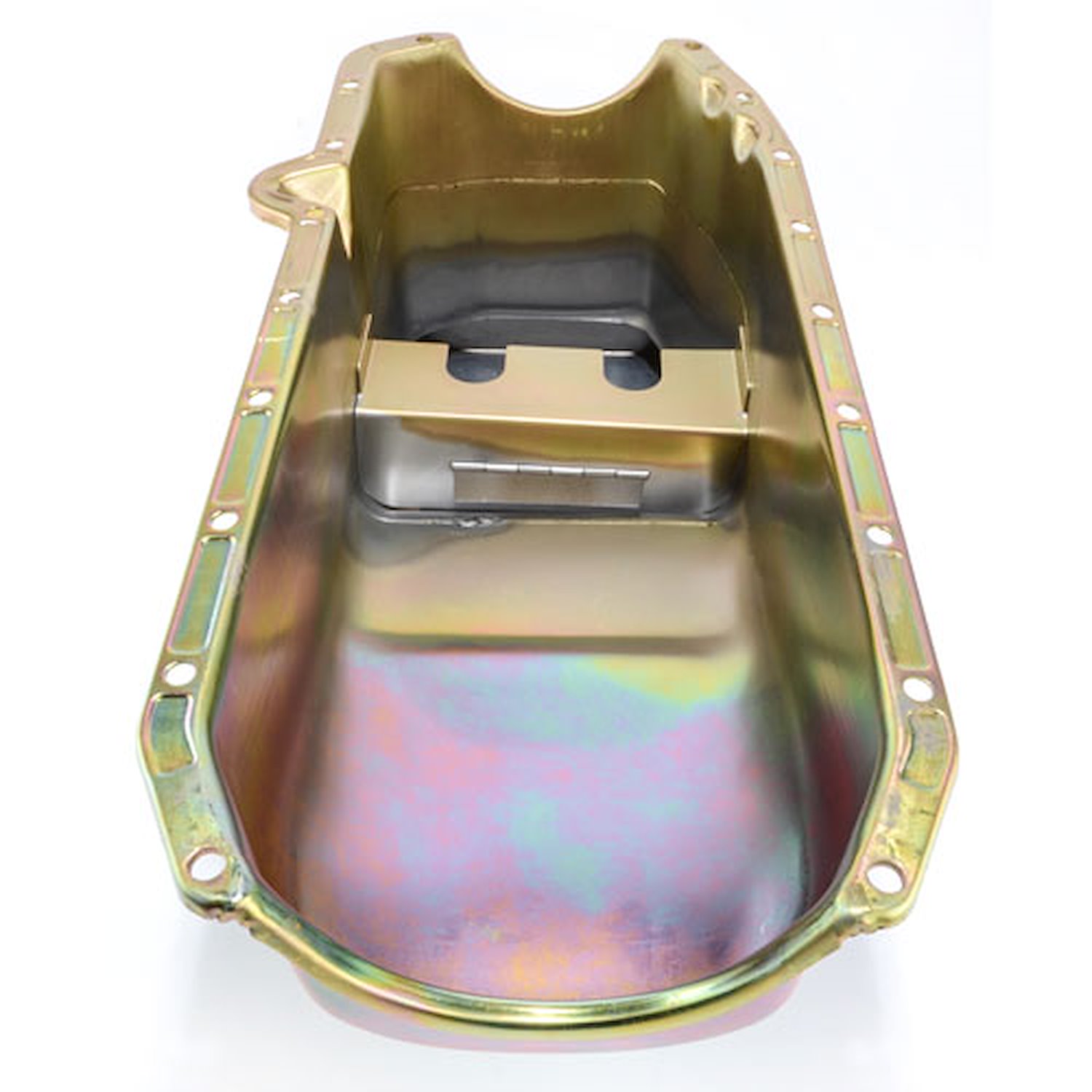

Street & Strip II Oil Pan for 1980-1985 Small Block Chevy (2-Piece Rear Main)
InfoVehicle Info Needed
JEGSPART NUMBER: 555-502011

Street & Strip II Oil Pan for 1980-1985 Small Block Chevy (2-Piece Rear Main)

$16799$184.99You Save$17.00
3 left in stock
ShippingShips Tomorrow
Lowest PriceLowest Price Guarantee

Small Block Chevy
Street & Strip II Oil Pan
  • 1980-1985 Small Block Chevy (2-Piece Rear Main)
  • Fits Most Chassis Except 1962-1967 Chevy II
  • Right-Hand Dipstick
  • 7 Quarts Plus Filter

    Dimensions

    JEGS 555-502011 Street & Strip II Oil Pan Features:

    • Zinc-plated steel
    • Ideal for street or strip applications
    • Low-profile design for more ground clearance
    • Oil control baffles reduce windage for HP gains
    • 7 or 6-quart capacity plus filter (noted in descriptions below)

      • Low-Profile Oil Pans That Increase Horsepower

      JEGS Street & Strip II Oil Pans have a low profile that provides ground clearance and sufficient oil capacity for most high-performance engines. Oil control baffles help with windage reduction to improve horsepower.

    Part TypeOil Pan
    Product LineJEGS Street & Strip II Oil Pans
    BrandJEGS
    Package Height10.7
    Package Width12.3
    Package Length24.3
    Weight10.85 PG
    Part CategoryPerformance Parts
    Oil Pan Capacity7 quarts
    Hardware IncludedNo
    Sump StyleWet
    Pickup IncludedNo
    Drain Plug Thread Size (In.)1/2-20
    MaterialSteel
    Maximum Stroke With Oe Rod3.75 in (95.25 mm)
    Gaskets IncludedNo
    Oil Pan Depth8.375 in (212.7 mm)
    Rear Main Seal Style2-piece
    Sump LocationRear
    Crank Scraper IncludedNo
    Windage Tray IncludedNo
    Dipstick LocationPassenger side
    Part FitmentSemi Universal
    FinishGold iridited
    Stroker ClearancedNo
    Package Qty1
    Package TypeEA
