Vehicle Info NeededMOROSOPART NUMBER: 710-20200

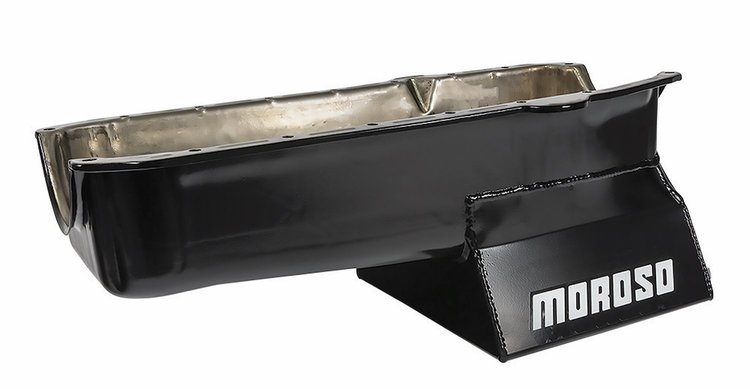

20200 Street/Strip Oil Pan for 1980-1985 Small Block Chevy
$29699
8 left in stock
Ships Tomorrow
Lowest Price GuaranteeSmall Block Chevy
Street/Strip Oil Pan1980-1985 Small Block Chevy Passenger-Side Dipstick Wet Sump With 2-piece rear main seal Kicked-Out Sump Wet Sump 7-quart capacity 8.25" Depth Black Finish
- Fits most chassis (except 1962-67 Chevy II, V8 Vega and Monza)
- Accepts up to 4.125 in. stroke with most steel rods
- Fits 4 Bolt Main Caps Including Front and Rear
- Kicked-out style sump provides additional ground clearance
- Trap door baffle for improved oil control
- Compatible with most starter/flywheel combinations
- Will clear most stock exhaust
- Will clear Borla, Hedman and Hooker headers
Notes:
- Oil pan rail is missing one bolt hole around the oil filter. This hole is missing by design to gain stroke clearance in that area and does not compromise the gasket seal performance.
- Oil pan capacities do not include oil filter capacity
Recommended Pickups:
- 710-24170 -- Fits Moroso Small Block Chevy Race Pump 710-22101 and Stock Style Pumps
- 710-24350 -- Fits Moroso Small Block Chevy HV Race Pump No 710-22111 and Stock Style Hi-Volume pumps
- 710-24320 -- Fits Moroso Big Block Chevy Race Pump Nos 710-22150, 710-22160, or 710-22162 and Mellings 689-M77HV
- 710-24360 -- Fits Mellings 689-M155HV
Part TypeOil Pan
BrandMOROSO
Package Height9.0
Package Width15.5
Package Length23.5
Weight12.95 PG
Part CategoryPerformance Parts
Oil Pan Capacity7 quarts
Hardware IncludedNo
Dipstick ProvisionYes
Sump StyleWet
Pickup IncludedNo
Drain Plug Thread Size (In.)1/2-20
Engine Make/SizeChevy Small Block
Kickout PositionDriver and passenger side
Oil Pan MaterialSteel
Maximum Stroke With Oe Rod3.8 in (96.52 mm)
Gaskets IncludedNo
Rear Main Seal Style2-piece
Sump LocationRear
Kicked OutYes
Stroker ClearancedYes
BaffledYes
QuantitySold individually
Oil Pan FinishBlack
Oil Pan Depth8.25 in (209.6 mm)
Crank Scraper IncludedNo
Windage Tray IncludedNo
Oil Pan StyleStreet/Strip
Dipstick LocationPassenger side
Part FitmentDirect Fit
Vendor Part Number20200
Package Qty1
Package TypeEA
