Made in USA

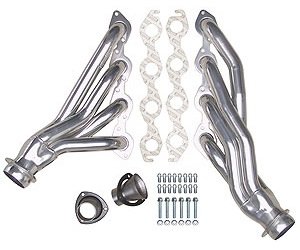

Standard Duty HTC Coated Shorty Headers 1965-81 Chevy Passenger Car 396, 402, 454, 502
InfoVehicle Info Needed
HEDMANPART NUMBER: 500-68616

Standard Duty HTC Coated Shorty Headers 1965-81 Chevy Passenger Car 396, 402, 454, 502

$64499
2 left in stock
ShippingShips Today
Lowest PriceLowest Price Guarantee

GM Cars
    Standard Duty HTC Coated Shorty Headers
  • 1965-81 Chevy Passenger Car 396, 402, 454, 502
  • 1-3/4" Tube, 3" Collector

  • For 396, 402, 454, and 502 engines (also 427 but only in Camaro)
  • Without smog injection or injection heads
  • Modification to stock exhaust required to retain catalytic converter
  • Shorty with maximum ground clearance
  • Not recommended for use with aluminum heads
  • Not legal for sale or use in California on pollution-controlled vehicles
  • Due to cylinder heads (aluminum), Generation 6 BB-Chevy 502 will have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.

    Applications
  • 1965-72 Chevrolet Biscayne
  • 1965-74 Chevrolet Bel Air & Impala
  • 1966-74 Chevrolet Caprice
  • 1967-81 Chevrolet Camaro
  • 1968 Chevrolet Chevy II
  • 1968-73 Chevrolet Chevelle
  • 1968-77 Chevrolet El Camino
  • 1969-72 Chevrolet Brookwood & Townsman
  • 1969-79 Chevrolet Nova
  • 1970-77 Chevrolet Monte Carlo
  • 1973-74 Chevrolet Laguna
  • 1973-77 Chevrolet Malibu

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

Part TypeHeader
BrandHEDMAN
Package Height8.5
Package Width16.5
Package Length29.65
Weight24.0 PG
Part CategoryPerformance Parts
Header FinishSilver ceramic coated
Tube DirectionDown Swept
QuantitySold as a pair
Bolts/Studs IncludedYes
Transmission Mount IncludedNo
Header MaterialSteel
Gaskets IncludedYes
Weld-UpNo
Collector AttachmentBall and socket flange
Flange StyleStandard
TunedNo
Collector Diameter3 in (76.2 mm)
Motor Mounts IncludedNo
Part FitmentSemi Universal
Reducers IncludedYes
ApplicationAutomotive
Primary Tube Gauge18-gauge
Header StyleShorty
Cross Over Pipe IncludedNo
Catalytic Converter(S) IncludedNo
Primary Tube Diameter1.75 in (44.5 mm)
Vendor Part Number68616
Package Qty1
Package TypeEA
