Vehicle Info NeededEDELBROCKPART NUMBER: 350-29087

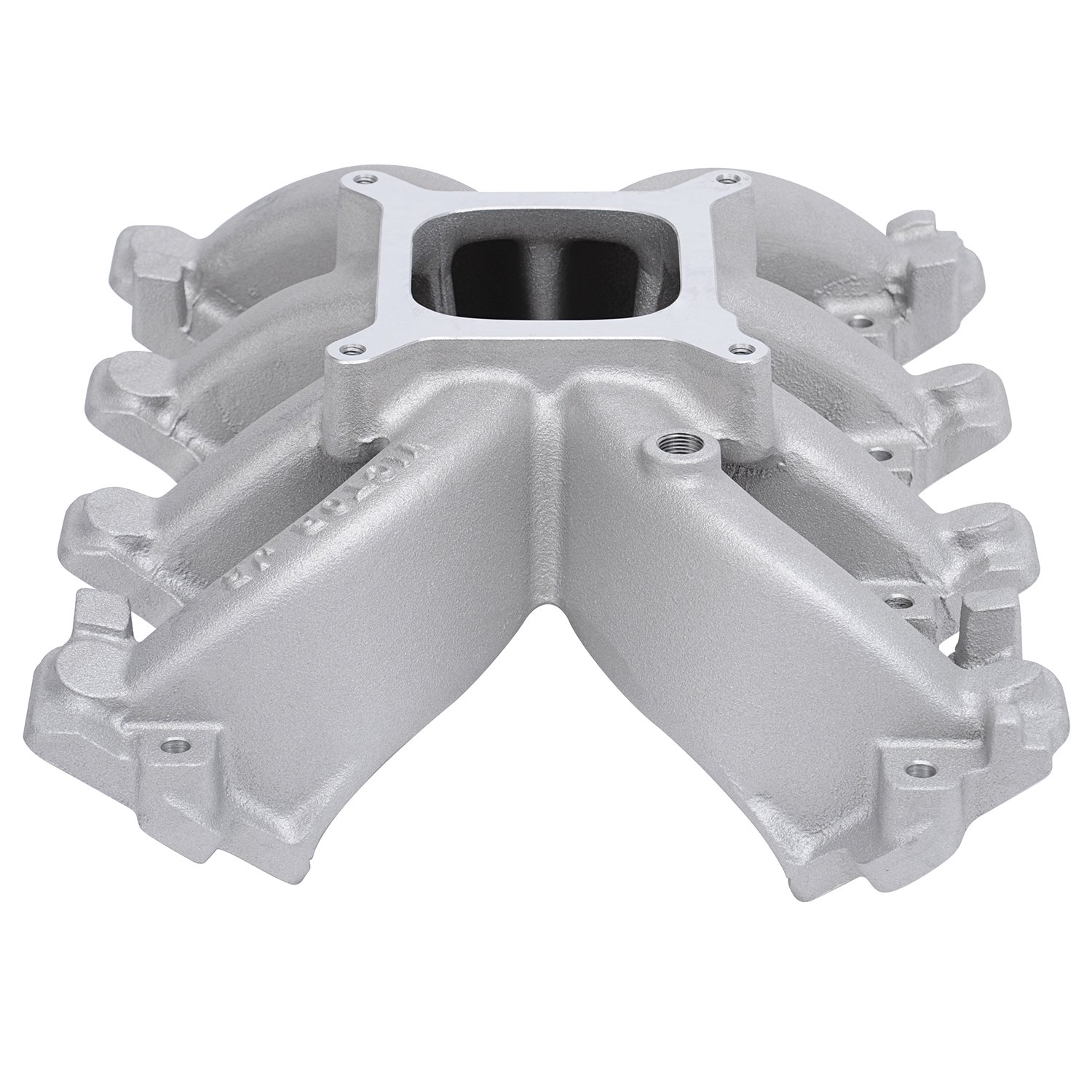

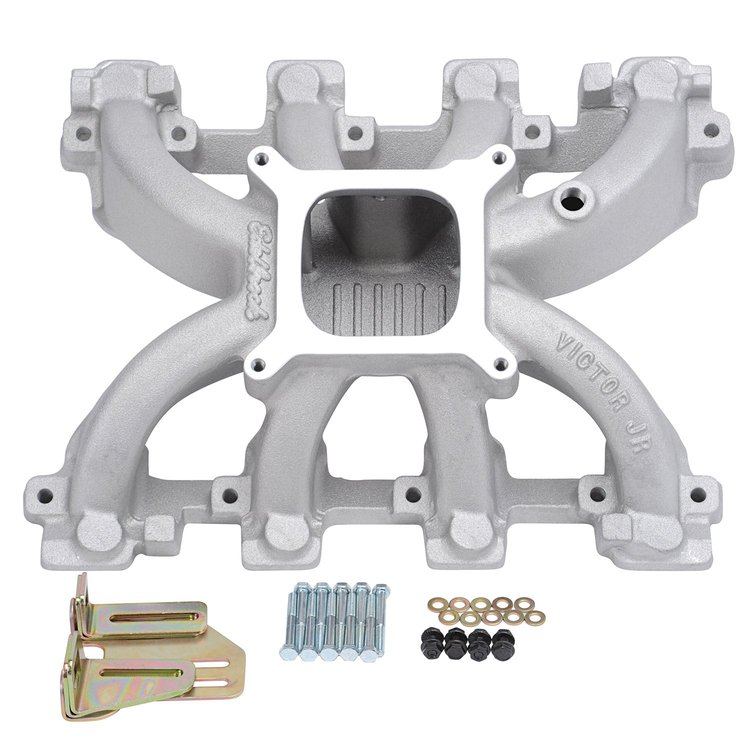

Victor Jr. LS1 Intake Manifold Gen III LS1/LS2
$44995
3 left in stock
Ships Today
Lowest Price GuaranteeChevy LS Victor Jr.
- GM Gen III LS
- 3500-7500 RPM Range
- 4-bbl Square-Bore Carburetor Flange
- Cathedral Port
- Intake Only
This high-rise single plane intake is capable of supporting up to 600 hp. The Victor Jr. LS1 intake accepts a square bore carburetor. Most applications will require hood modification.Installation Notes - Port Exit Dimensions: .98" Wide x 2.74" Tall
- Uses LS1/LS6-style individual port O-ring seals
- Recommended intake gasket; Jegs 555-210800
- Manifold Height: (A) 4.95' , (B) 4.95'; Carb pad height = 4.95'
- View Manifold 'A/B' Measurement Guide.
- Intake manifold only
- Use timing control module 350-91238with LS1 24x reluctor wheel(crank trigger) applications only
- LS1(24x) applications can be identified by the rear mounted cam position sensor that is black in color
- LS2 applications with 58x reluctor wheel(crank trigger) use FAST ignition controller 244-3013122
- LS2(58x)applications can be identified by the timing cover mounted cam position sensor that is grey in color
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeIntake Manifold
BrandEDELBROCK
Package Height7.6
Package Width15.3
Package Length23.5
Weight16.75 PG
Part CategoryPerformance Parts
Engine Block StyleStock/OEM standard Deck
UsageRacing
Number Of CarbsOne
Intake MaterialAluminum
PositionN/A
Intake StyleSingle plane
EmissionWithout EGR
QuantitySold individually
Cylinder Head TypeStandard
Intake FinishNatural
Carburetor QuantityOne
Engine Make/SizeGM LS
Intake Section IncludedComplete
Basic Operating Rpm Range3,500-7,500
EgrWithout EGR
Rpm Range3500-7500
Intake Manifold Height6.07 in (154.178 mm)
Vendor Part Number29087
Package Qty1
Package TypeEA
