![300-132BK Single Plane Mid-Rise Carbureted Intake Manifold GM LS1/LS2/LS6 Cathedral Port [Black Finish]](https://www.jegs.com/images/mini_750/500/510/510-300-132bk.jpg)
HOLLEYPART NUMBER: 510-300-132BK

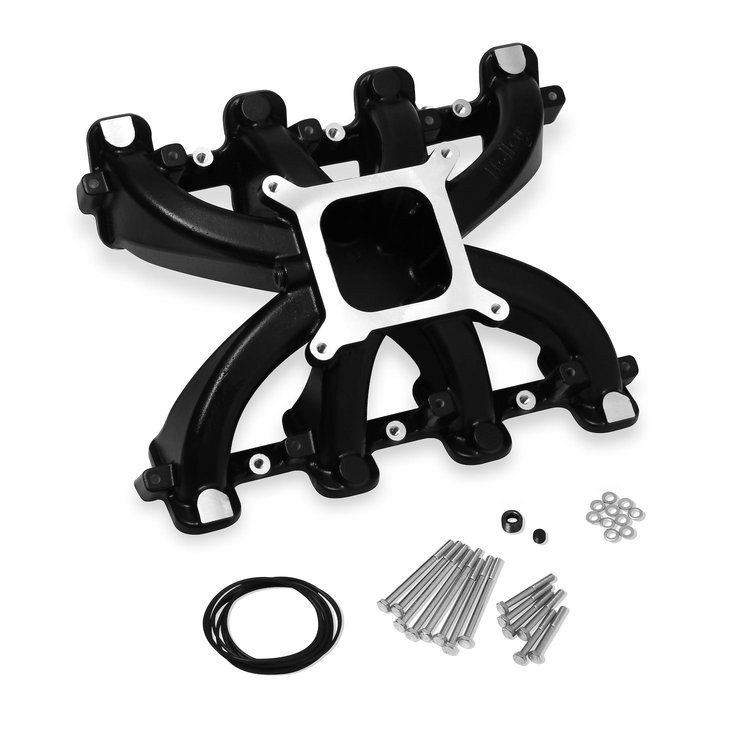

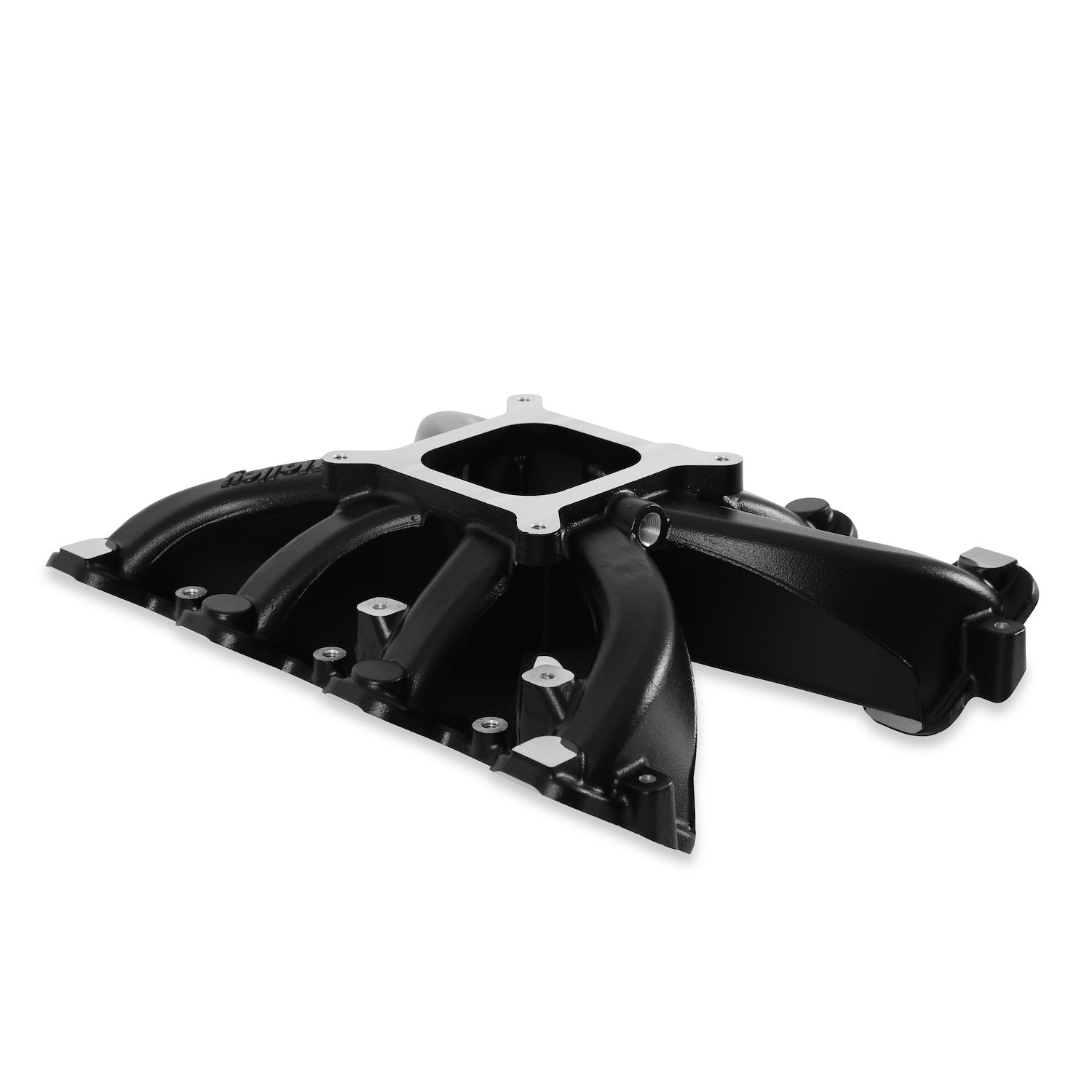

300-132BK Single Plane Mid-Rise Carbureted Intake Manifold GM LS1/LS2/LS6 Cathedral Port [Black Finish]
$54995
2 left in stockCarbureted IntakesGM LS1 / LS2 / LS6 Cathedral Port
Single Plane Mid-Rise Carbureted Intake ManifoldGM LS1/LS2/LS6 Cathedral Port Square Bore Carb Flange 2500-7000 RPM Black Finish
Designed for performance-minded LS engines with a 2,500-7,000 rpm power band Cast aluminum construction with consistent wall thickness throughout and strong mounting flanges Constant cross-sectional area produces a broad torque curve Accepts a carburetor with a Holley 4150 square bore flange The lowest carb flange height possible for improved hood clearance Ideal manifold for the centrifugal blower, turbocharger or nitrous power adders Weight: 11.5 lbs Port Size: 2.66"H x 0.92"W Carb Mounting Flange Height from Lifter Valley Cover Flange: 4.95" Carb Flange: Standard Holley 4150, accepts up to 1.75" diameter throttle bores Vacuum Port Thread: 3/8" NPT MAP Sensor Port Thread: 1/8" NPT
Holley 300-132BK Single Plane Mid-Rise Carbureted Intake Manifold GM LS1/LS2/LS6 Cathedral Port Features:
Holley 300-132BK Single Plane Mid-Rise Carbureted Intake Manifold GM LS1/LS2/LS6 Cathedral Port Includes:
- Zinc plated hex head cap mounting bolts & washers
- 3/8" NPT hex socket pipe plug (to block the manifold vacuum port if necessary)
- 1/8" NPT hex socket pipe plug (to block the MAP sensor port if necessary)
- (8) Viton O-ring cylinder head mounting flange gaskets
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeIntake Manifold
BrandHOLLEY
Package Height7.2
Package Width14.5
Package Length22.9
Weight14.75 PG
Part CategoryPerformance Parts
UsageStreet/Strip
Number Of CarbsOne
PositionUpper
EmissionWithout EGR
Rpm Range2500-7000
Cylinder Head TypeCathedral Port
Part FitmentSemi Universal
Engine Make/SizeGM LS
Vendor Part Number300-132BK
Package Qty1
Package TypeEA
