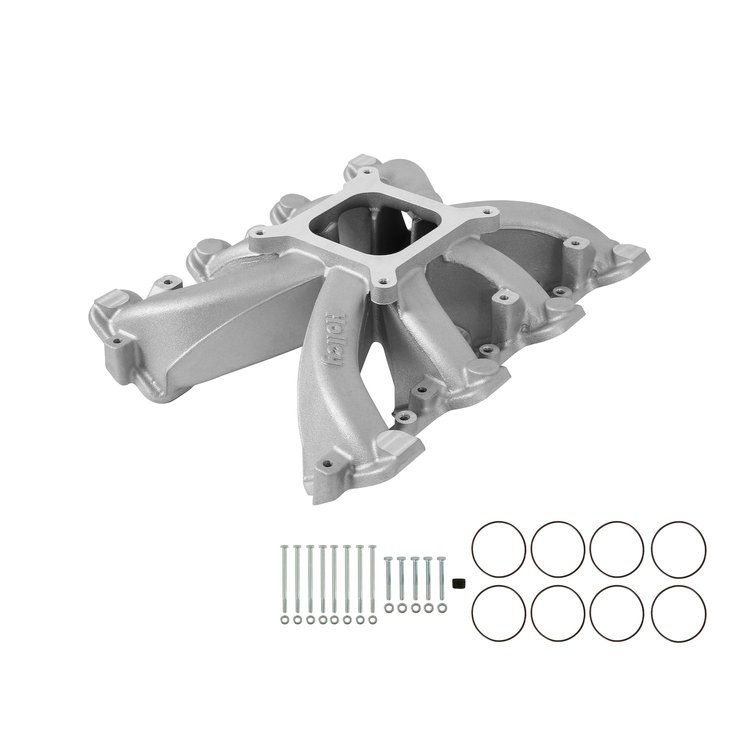

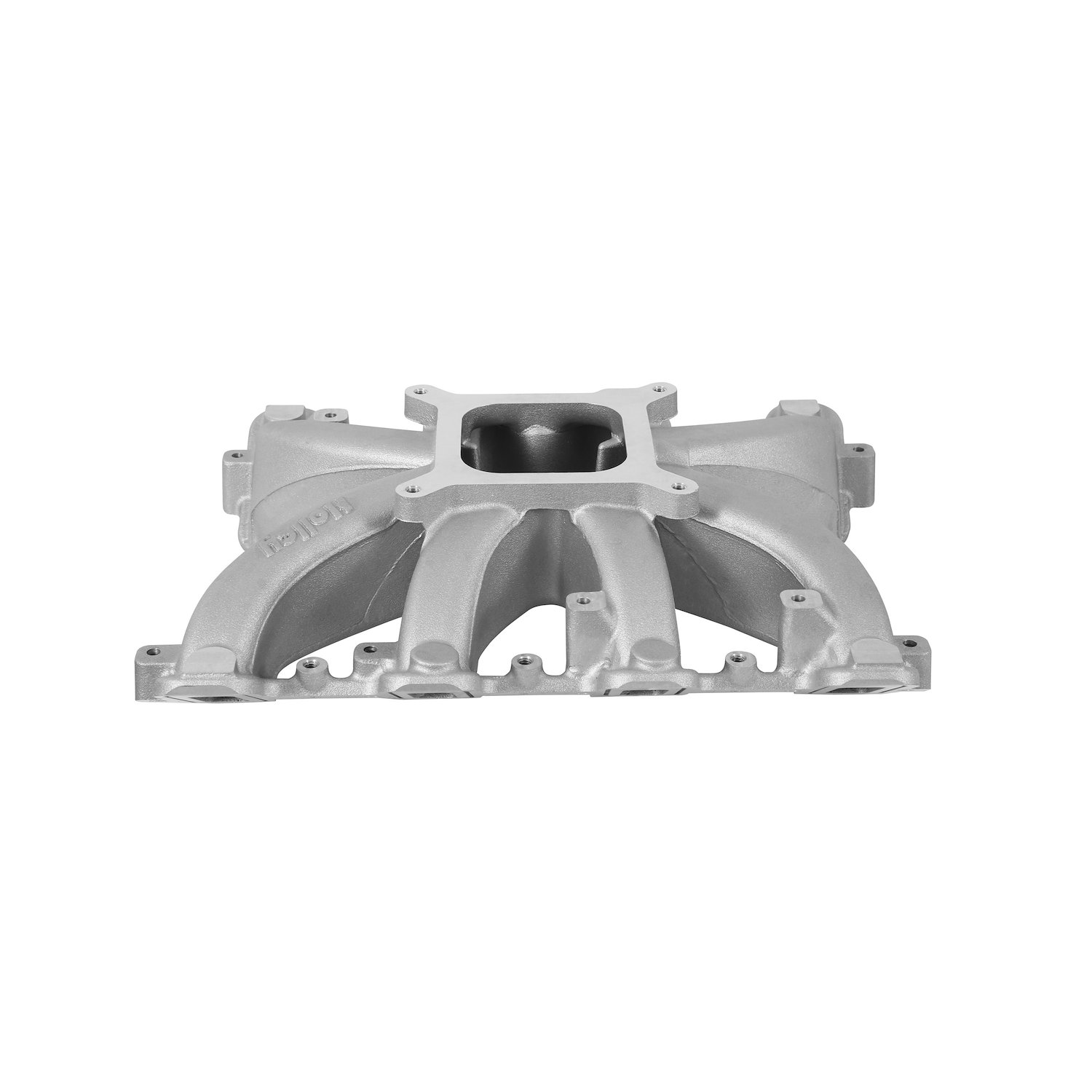

300-132 Single Plane Mid-Rise Carbureted Intake Manifold GM LS1/LS2/LS6 Cathedral Port
InfoVehicle Info Needed
HOLLEYPART NUMBER: 510-300-132

300-132 Single Plane Mid-Rise Carbureted Intake Manifold GM LS1/LS2/LS6 Cathedral Port

$44995
4 left in stock
ShippingShips Today
Lowest PriceLowest Price Guarantee

Carbureted Intakes
  • GM LS1 / LS2 / LS6 Cathedral Port
  • Single Plane Mid-Rise Carbureted Intake Manifold
  • GM LS1/LS2/LS6 Cathedral Port
  • Square Bore Carb Flange
  • 2500-7000 RPM
  • Natural Finish

    Holley 300-132 Single Plane Mid-Rise Carbureted Intake Manifold GM LS1/LS2/LS6 Cathedral Port Features:

  • Designed for performance-minded LS engines with a 2,500-7,000 rpm power band
  • Cast aluminum construction with consistent wall thickness throughout and strong mounting flanges
  • Constant cross-sectional area produces a broad torque curve
  • Accepts a carburetor with a Holley 4150 square bore flange
  • The lowest carb flange height possible for improved hood clearance
  • Ideal manifold for the centrifugal blower, turbocharger or nitrous power adders
  • Weight: 11.5 lbs
  • Port Size: 2.66"H x 0.92"W
  • Carb Mounting Flange Height from Lifter Valley Cover Flange: 4.95"
  • Carb Flange: Standard Holley 4150, accepts up to 1.75" diameter throttle bores
  • Vacuum Port Thread: 3/8" NPT
  • MAP Sensor Port Thread: 1/8" NPT
  • Holley 300-132 Single Plane Mid-Rise Carbureted Intake Manifold GM LS1/LS2/LS6 Cathedral Port Includes:

    • Zinc plated hex head cap mounting bolts & washers
    • 3/8" NPT hex socket pipe plug (to block the manifold vacuum port if necessary)
    • 1/8" NPT hex socket pipe plug (to block the MAP sensor port if necessary)
    • (8) Viton O-ring cylinder head mounting flange gaskets

    Emissions Note:

    This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

    CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

    Part TypeIntake Manifold
    BrandHOLLEY
    Package Height7.5
    Package Width14.0
    Package Length23.5
    Weight14.65 PG
    Part CategoryPerformance Parts
    UsageStreet/Hi-Performance
    Number Of CarbsOne
    PositionUpper
    EmissionWithout EGR
    Rpm Range2500-7000
    Cylinder Head TypeCathedral Port
    Part FitmentSemi Universal
    Engine Make/SizeGM LS
    Vendor Part Number300-132
    Package Qty1
    Package TypeEA
