Dimensions

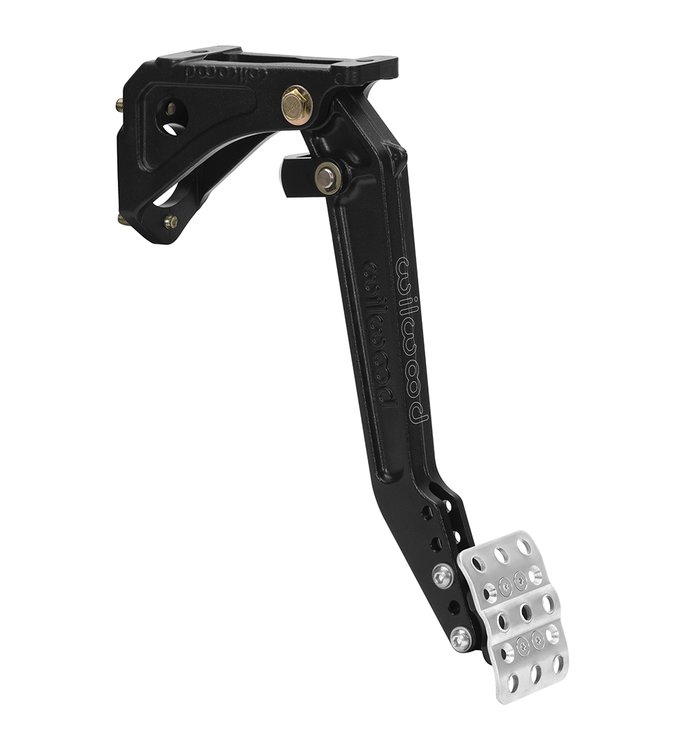

Wilwood 340-16381 Adjustable Ratio Clutch Pedal Assembly Features:

• Made from lightweight aluminum
• Pedal head adjusts vertically to bring a 6.25:1, 6.63:1, or 7.00:1 ratio
• Clutch master cylinder mounts directly to the assembly through the firewall
• Non-skid waffle pads can be laterally adjusted 1/2 inch in either direction for driver comfort
• Pin & clevis pushrod attachment system is utilized for a bind-free operation and guarantees the slightest possible misalignment angle

Wilwood 340-16381 Adjustable Ratio Clutch Pedal Assembly Note:

• Works with any Wilwood 2.25 in. verticle mount flange, single outlet master cylinders
