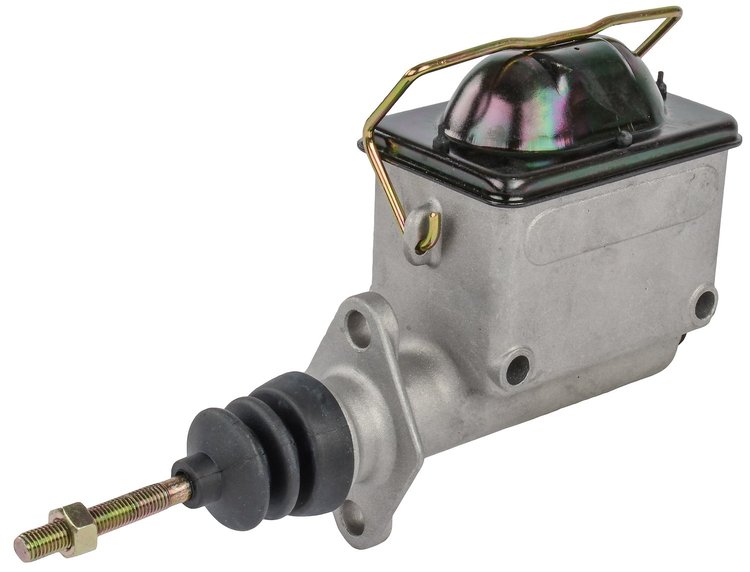

High-Volume Aluminum Brake Master Cylinder [7/8 in. Bore]

Name: High-Volume Aluminum Brake Master Cylinder [7/8 in. Bore]
Brand: JEGS
SKU: 555-631222
Price: 33.97 USD
Availability: InStock

^$33⁹⁷$39.99You Save$6.02

More than 10 available

Ships Today

Lowest Price Guarantee

High-Volume Brake Master Cylinder

Universal

8.2 oz. Fluid Capacity

7/8 in. Piston Bore Diameter

1 7/16 in. Pushrod Stroke

1/8 in.-27 NPT Ports

Aluminum Body

Sold Individually

Whether your building a race car or street machine the JEGS 631222 universal high-volume brake master cylinder will give you plenty of additional stopping power. Its light weight and universal design allows for easy mounting on any vehicle.

Features:

Universal Style and 2-Bolt Mounting Flange Makes Installation a Breeze
Single Fluid Reservoir
8.2 oz. High-Volume Fluid Capacity
Light Weight Die-Cast Aluminum Body
Specially Designed 7/8 in. Piston Bore Diameter & Internal Components for Extreme Braking Conditions
Standard 1/8 in.-27 NPT Fluid Ports for Simple Brake Line Installation
Steel Cap and Retainer with Rubber Gasket for a Tight Reservoir Seal
2-Bolt Mounting Flange Makes Mounting a Breeze
Adjustable Pushrod allows for a Precise Brake Pedal Position

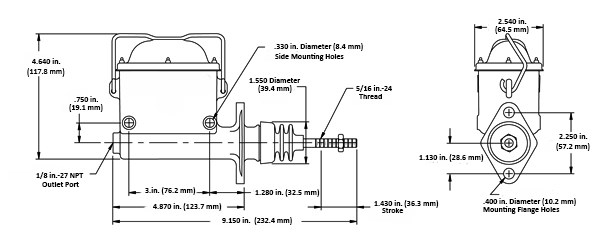

Specifications:

Master Cylinder Housing
- Length: 4 7/8 in. from mounting flange to outlet port
- Height: 5 1/2 in. From bottom of mounting flange to reservoir cap retaining clip
- Width: 2 3/8 in. Body
- Mounting Flange: 2-bolt, .400 in. Dia. x 2.250 in. center to center of mounting holes
- Side Mounting Pattern: 2-bolt, .330 Dia. x 3 in. center to center of mounting holes
- Piston Bore Diameter: 7/8 in.
- Fluid Reservoir: 3 3/8 in. I.D. L x 2 1/16 in. I.D. W x 2 3/16 in. deep at top of piston bore
Pushrod:
- 5/16 in.-24 Thread x 3 1/4 in. Long. End of rod to piston bore opening

Performance Brake Stopping Power

JEGS High-Volume Master Cylinders are made from high-quality die-cast aluminum, machined and assembled with top quality components to provide reliable stopping power. The 8.2 oz. brake fluid volume is more than 25% additional capacity compared to other master cylinders which will prevent; excessive pad wear, high temperatures and pressure loss. JEGS Master Cylinder bore diameters are designed to provide a tight, solid seal while the internal makeup ensures a constant supply of fluid, eliminates aeration, provides fast retraction, and speeds up fluid recovery.

Part TypeMaster Cylinder

Product LineJEGS High-Volume Brake Master Cylinders

BrandJEGS

Package Height3.1

Package Width5.4

Package Length10.2

Weight1.4 PG

Part CategoryPerformance Parts

Master Cylinder Stroke1.43 in (36.322 mm)

Hardware IncludedNo

Remote ReservoirNo

Mounting Flange Center To Center Distance (In.)2.25
