• SmartWire module
• 8-button keypad
• Programming cable
• Interface cable

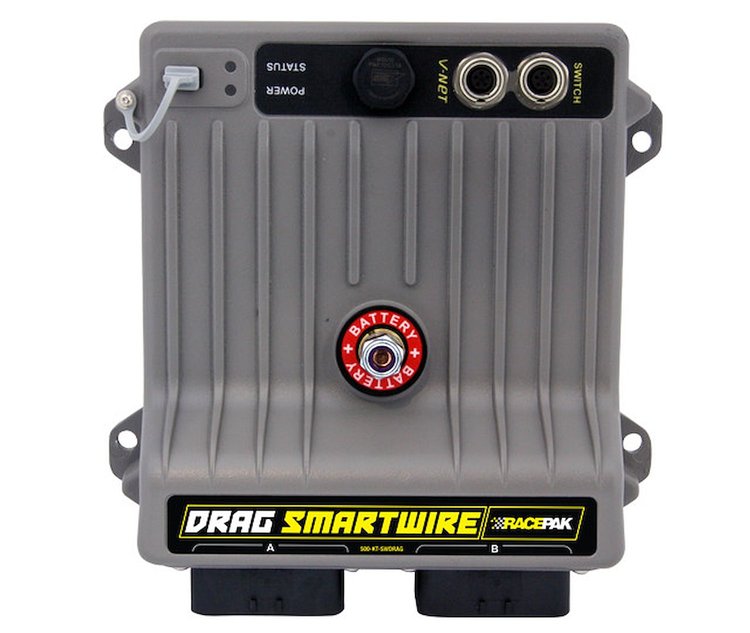

The 500-KT-SWDRAGK8 Drag Smartwire Power Control Module with Keypad simplifies race car wiring while delivering modern control capabilities. Built on Racepak's V-Net architecture, this solid-state PDM connects directly to the vehicle battery and manages up to 30 output circuits with 12 configurable inputs. A USB interface and free Datalink II software allow full user configuration, including power settings, logic rules, and current trip thresholds. Included in this version is an 8-button Racepak keypad for manual activation of configured outputs, with CAN bus communication to the main module. Designed to reduce wiring clutter, weight, and diagnostic complexity while enhancing performance and control precision on the track.

Racepak 500-KT-SWDRAGK8 Features:

• 30 total output channels (8x 20A, 22x 10A)
• 12 hardwired voltage/ground triggered inputs

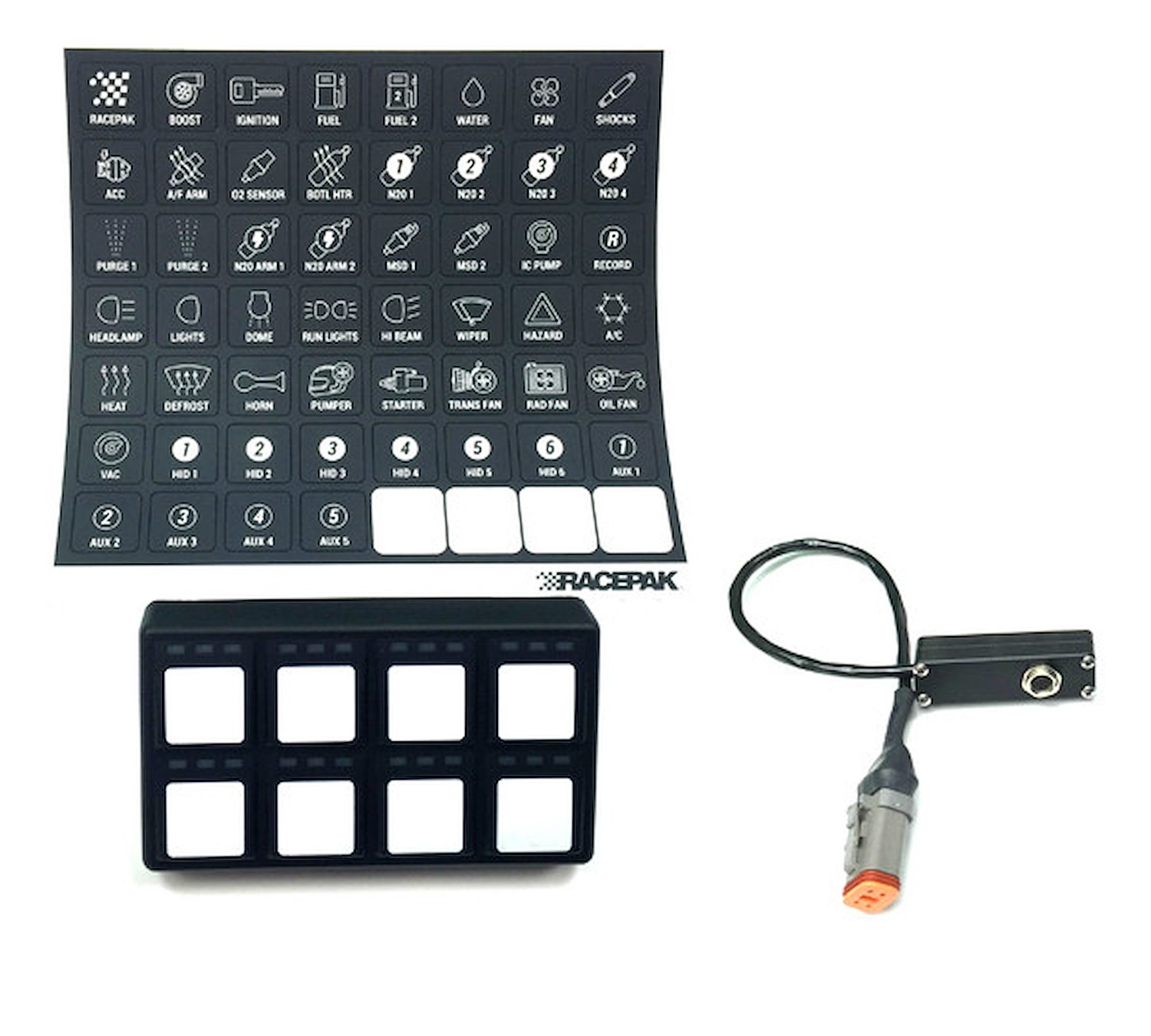

• 8-button keypad for remote manual control
• Solid-state design with built-in overcurrent protection
• Free Datalink II software for full USB programming
• 125A total system capacity
• Works with 12–16V automotive systems
• Test mode for verifying input/output states
• CAN connectivity for optional accessories and logging
• Compact enclosure with multiple connector types

Emissions Note:

This part is legal for sale or uses on Emissions Controlled Vehicles, Uncontrolled (Non-Emissions Controlled) Vehicles, and Racing Use Only Vehicles because it does not affect vehicle emissions and is not covered by emissions regulations.
