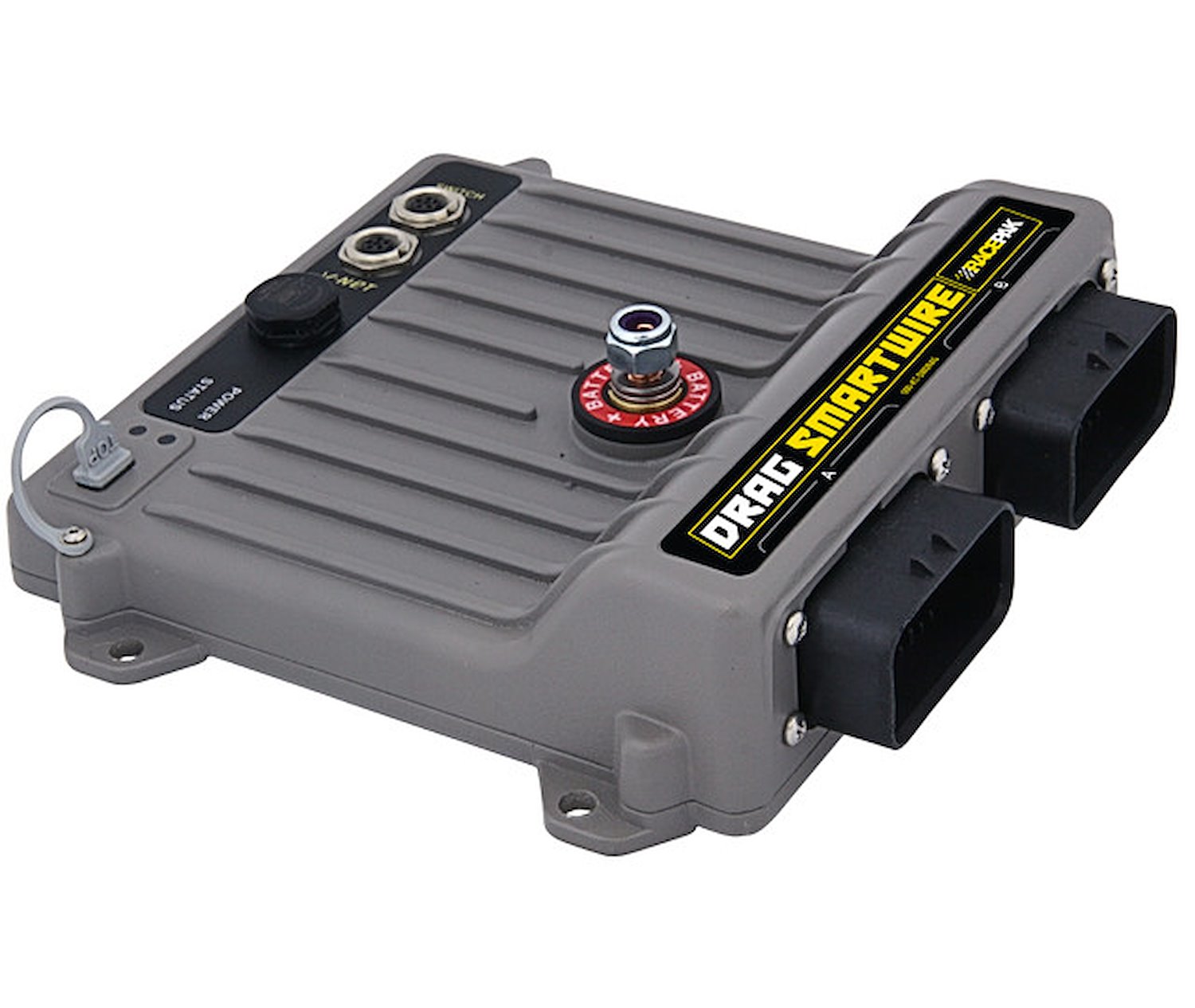

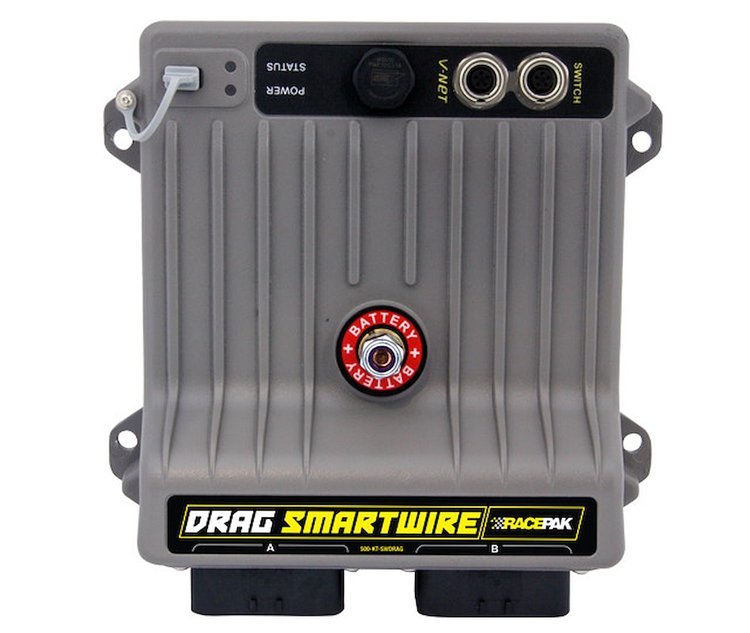

The 500-KT-SWDRAG Drag Smartwire Power Control Module streamlines drag car wiring by replacing bulky fuse and relay panels with a compact, programmable solid-state solution. Designed around Racepak's V-Net architecture, it delivers rapid response control for high- and low-amp circuits, supports 12–16V systems, and integrates directly with other Racepak V-Net components. This kit includes an 8-channel switch panel and all required cabling.

Racepak 500-KT-SWDRAG Features:

• 125A total current capacity
• 8 high-amp (20A) and 22 low-amp (10A) outputs
• 12 hardwired switch inputs (voltage or ground triggered)
• Data logging: volts, amps, and on/off state
• Test mode for verifying input/output operation
• USB-programmable via free Datalink II software
• Includes Smartwire harness, 8-channel panel, switch cable, and USB programming cable
• Compact design: 6 in. x 5.5 in. x 1.5 in.
• Racepak V-Net and Switch CAN bus connectivity

Emissions Note:

This part is legal for sale or uses on Emissions Controlled Vehicles, Uncontrolled (Non-Emissions Controlled) Vehicles, and Racing Use Only Vehicles because it does not affect vehicle emissions and is not covered by emissions regulations.
