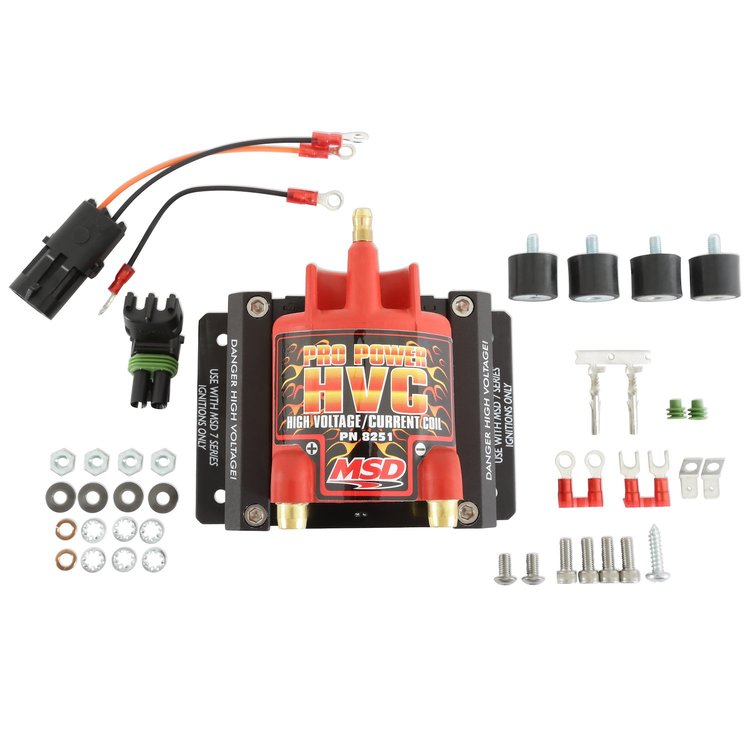

MSD 8251 Pro Power HVC Ignition Coil Specifications:

• Turns ratio: 85:1
• Primary resistance: .04 OHMs
• Secondary resistance: 86 OHMs
• Inductance: 1 mH
• Maximum voltage: 45,000 Volts (Tested with 7AL-2 Ignition)
• Peak current: 1.1 Amp
• Spark duration: 150 uS
• Weight: 3.75 lbs.

MSD 8251 Pro Power HVC Ignition Coil Features:

• Efficient E-core winding design produces more voltage and current
• 85:1 turns ratio and lower primary resistance produce high voltage output
• Windings are encased in red epoxy and secured with extruded brackets
• Spark plug style terminal and threaded brass primary studs
• Supplied with rubber shock mounts

FAQ

Does it matter what ignition coil I use?

• Yes, choosing the right coil impacts performance.
• MSD 8251 coil ensures efficient spark delivery.

What coil do I use for electronic ignition?

• MSD 8251 is ideal for electronic ignition setups.
• Matches well with MSD 4217 for enhanced performance.

Does an MSD Ignition use a coil?

• Yes, MSD Ignition systems utilize high-performance coils.
• MSD 8251 is an example, optimizing spark delivery.

What type of ignition is MSD?

• MSD is known for its high-energy ignition systems.
• Utilizes advanced technology for superior performance.

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
