Vehicle Info NeededMSD IGNITIONPART NUMBER: 121-5520

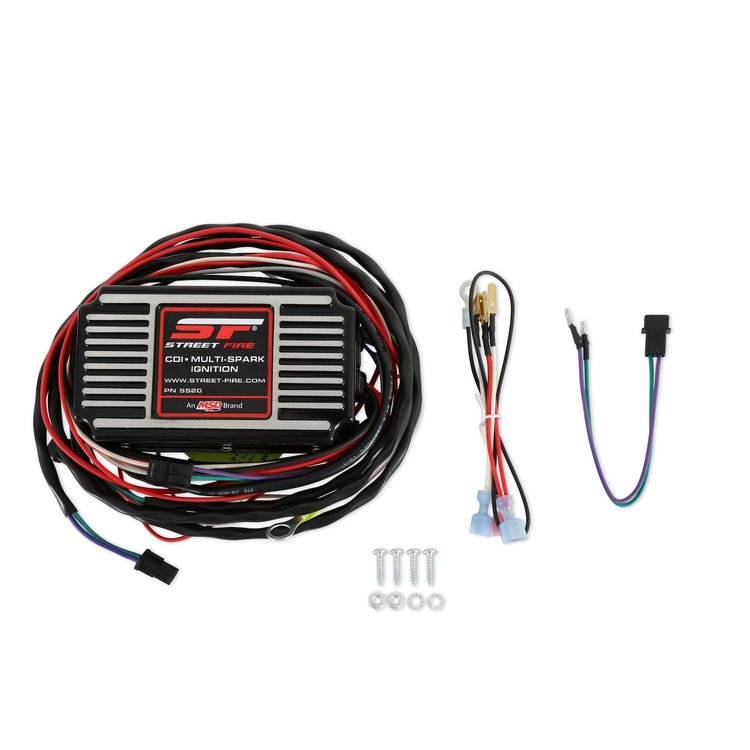

5520 Street Fire CDI Ignition with Rev Limiter Soft Touch Rev Control without RPM Modules
$24995
2 left in stock
Ships Today
Lowest Price GuaranteeIgnition
- Street Fire CDI Ignition with Rev Limiter
- Soft Touch Rev Control without RPM Modules
- Spark Energy: 95 mJ
- CARB E.O. #D-40-43
- Capacitive Discharge Technology
- Compatible on 4, 6, and 8-cylinder engines
- Adjustable rev limiter for overrev protection
- Multiple sparks improve start & idle
- Full power output at high RPM
- Easily connects to points, amplifiers, and magnetic pickup distributors
- 50-state legal via CARB E.O. #D-40-43_Operating Specifications
Spark Energy 95 mJ per spark Primary Voltage 435 volts Secondary Voltage 43,000 volts (Tested with Blaster Coil) Spark Series Duration 20° crankshaft rotation RPM Range 15,000 RPM with 14.4 volts Voltage Required 10-18 volts (negative ground) Current Draw 0.7 amp per 1000 RPM Size 6" L x 3.5" W x 1.75" H Weight 1.5 pounds
Part TypeIgnition Control Module
BrandMSD IGNITION
Package Height2.3
Package Width8.1
Package Length11.0
Weight2.23 PG
Part CategoryPerformance Parts
Current Draw0.7 amps per 1,000 rpm
Carb Eo NumberD-40-43 (pdf)
Warranty1-year
Rev LimiterYes
QuantitySold individually
Overall Length6 in (152.4 mm)
Spark Output (Millijoules)95 Millijoules
Data AcquisitionNo
CircuitryDigital
Rpm15,000
Coil IncludedNo
Minimum Operating Voltage10 V
Ignition Box OutputCapacitive discharge
Cd Voltage Output To Coil435 V
Part FitmentSemi Universal
Timing RetardNone
Ignition Box ColorBlack
Maximum Operating Voltage18 V
Vendor Part Number5520
Package Qty1
Package TypeEA
