Vehicle Info NeededMOROSOPART NUMBER: 710-20511

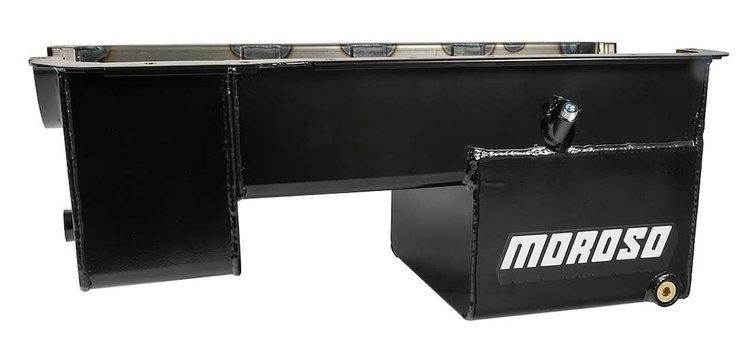

Street/Strip Oil Pan Ford 289-302
$45799
1 left in stock
Ships Tomorrow
Lowest Price GuaranteeSmall Block Ford
Street/Strip Oil PanFord 289-302 Fits Ford Rear Sump applications (Except Mustang II) Rear Wet Sump 7-quart capacity 9 in. Depth Fabricated Steel Black Powder-Coated Finish
Features:
- Accepts 3.400 in. stroke
- Billet end seals for greater sealing
- Will clear 289-302 4-bolt main caps including 4-bolt rear
- Oil sump retaining system·
- Includes O-ring drain plugs
Recommended Oil Pump & Pickups:
High-Performance Oil Pans
Moroso Street/Strip Oil Pans are for street-performance vehicles that occasionally see track time. Some tanks are modified with either a deep or a kicked-out sump for increased capacity to improve oil control under hard acceleration and help the engine run cooler. Moroso has designed these oil pans for simple bolt-on installation in a production chassis.
Part TypeOil Pan
Product LineMoroso Street/Strip Oil Pans
BrandMOROSO
Package Height10.9
Package Width11.4
Package Length27.2
Weight18.0 PG
Part CategoryPerformance Parts
Oil Pan Capacity7 quarts
Hardware IncludedNo
Dipstick ProvisionYes
BaffledYes
Sump StyleWet
Pickup IncludedNo
Drain Plug Thread Size (In.)1/2-20
QuantitySold individually
Oil Pan FinishBlack powder-coated
Oil Pan MaterialSteel
Maximum Stroke With Oe Rod3.5 in (88.9 mm)
Gaskets IncludedNo

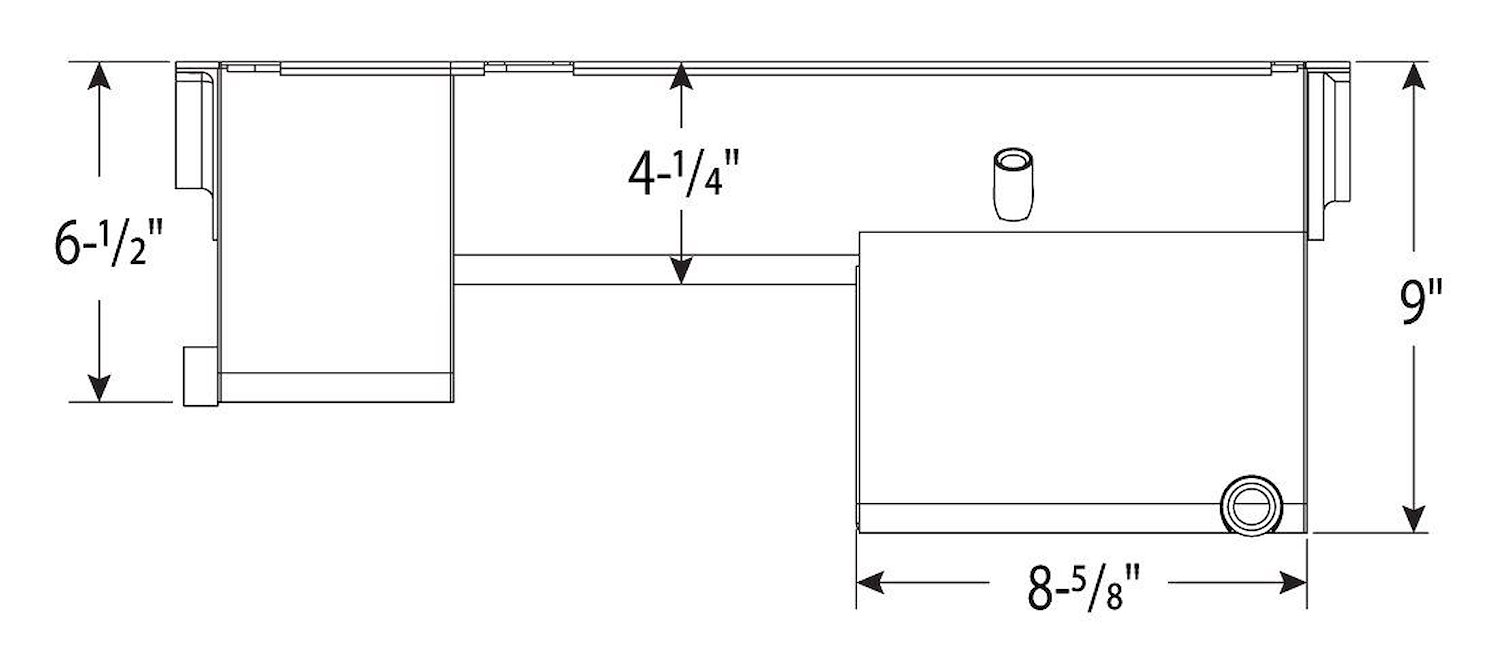

Oil Pan Depth9 in (228.6 mm)
Sump LocationRear
Crank Scraper IncludedNo
Windage Tray IncludedNo
Dipstick LocationDriver
Part FitmentDirect Fit
Kicked OutNo
Stroker ClearancedYes
Vendor Part Number20511
Package Qty1
Package TypeEA
