Vehicle Info NeededMILODONPART NUMBER: 697-31167

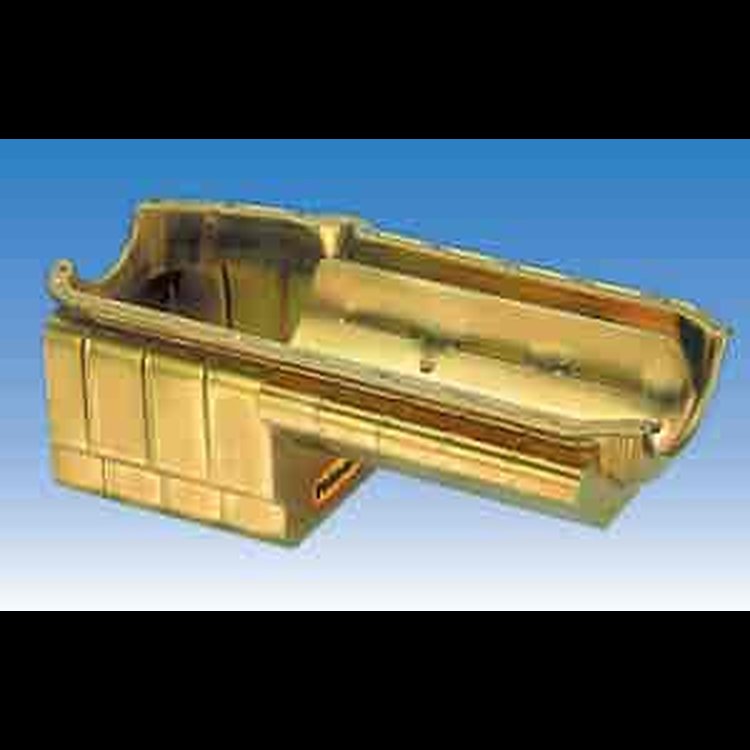

Drag Racing Oil Pan Small Block Chevy (1955-79)
$61095
Ships on Sep 04, 2026
Lowest Price GuaranteeSmall Block Chevy
- Drag Racing Oil Pan
- Small Block Chevy (1955-79)
- Left Hand Dipstick
- Pan Capacity: 5 Quarts Plus Filter
- Front Depth: 4-1/4"
- Rear Depth: 8-1/4"
Used in stock framed cars where maximum power output is needed. Designed to fit into cross membered cars such as Camaros and Chevelles with only a reasonable amount of cross member modification. This horsepower style pan incorporates lightweight, steel construction with a full kick- out and full-length louvered tray assembly which gives maximum horsepower output.
NOTE: For engines over 430 cubic inches or engines that see nitrous or blown use, the Extreme Duty pickup 697-18316 must be used.
Milodon's Drag Racing Oil Pans are designed to provide maximum performance and lubrication for your engine during adverse conditions like rapid acceleration. Each pan features a sump and baffling that is engineered to give you more horsepower and oil control. Milodon's distinctive gold irridated finish ensure long lasting durability and reliabilty.
Features:
- Provides maximum performance and lubrication
- Ample oil supply under rapid acceleration
- Sump and baffling for full oil control
Show More
- Gold irridated finish
- Includes magnetic drain plug
JEGS Easy Kits are designed by JEGS Professionals to help you get all the performance parts you need.
Part TypeOil Pan
Product LineMilodon Drag Racing Oil Pans
BrandMILODON
Package Height8.7
Package Width12.2
Package Length25.3
Weight12.6 PG
Part CategoryPerformance Parts
Oil Pan Capacity5 quarts
Hardware IncludedNo
Dipstick ProvisionYes
BaffledYes
Sump StyleWet
Pickup IncludedNo
Drain Plug Thread Size (In.)1/2-20
QuantitySold individually
Oil Pan FinishGold iridited
Kickout PositionDriver and passenger side
Oil Pan MaterialSteel
Maximum Stroke With Oe Rod4 in (101.6 mm)
Gaskets IncludedNo
Oil Pan Depth8.25 in (209.6 mm)
Rear Main Seal Style2-piece
Sump LocationRear
Crank Scraper IncludedNo
Windage Tray IncludedYes
Dipstick LocationDriver
Part FitmentSemi Universal
Kicked OutYes
Stroker ClearancedYes
Vendor Part Number31167
Package Qty1
Package TypeEA
