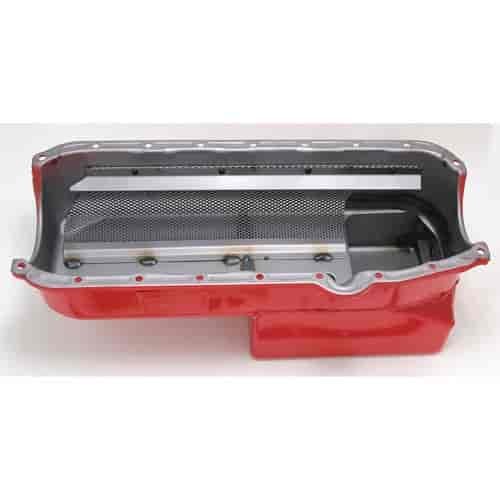

Econo Series Drag Race & Marine Oil Pan 1955-78 Small Block Chevy 283-400
InfoVehicle Info Needed
HAMBURGER'SPART NUMBER: 497-1088

Econo Series Drag Race & Marine Oil Pan 1955-78 Small Block Chevy 283-400

$31499
2 left in stock
ShippingShips Tomorrow
Lowest PriceLowest Price Guarantee

Econo Series Drag Race & Marine Oil Pans
    Econo Series Drag Race & Marine Oil Pan
  • 1955-78 Small Block Chevy 283-400
  • Pan Depth: 8" - Wet Sump
  • Pan Capacity: 7 Quarts
  • Includes Gasket & Pickup

    Applications: Street Rods, Drag Race Cars and Boats with rear sump oil pan.

    Must Use Gasket 497-3001

    Pickup (included): 497-2508

    Recommended oil pumps:
  • Melling 689-10550, 689-M55, or
  • Chevrolet 809-14044872 (high volume)
Part TypeOil Pan
BrandHAMBURGER'S
Package Height10.6
Package Width12.4
Package Length25.3
Weight11.5 PG
Part CategoryPerformance Parts
Oil Pan Capacity7 quarts
Dipstick PortDriver Side
Hardware IncludedNo
Dipstick ProvisionYes
BaffledYes
Pickup IncludedYes
QuantitySold individually
MaterialSteel
Oil Pan FinishRed painted
Crank Shaft Wiper IncludedYes
Oil Pan MaterialSteel
Maximum Stroke With Oe Rod3.875 in (98.425 mm)
Gaskets IncludedYes
Oil Pan Depth8 in (203.2 mm)
Rear Main Seal Style2-piece
Sump LocationRear
Crank Scraper IncludedYes
Windage Tray IncludedYes
Dipstick LocationDriver
Part FitmentSemi Universal
Kicked OutNo
FinishRed Painted
Stroker ClearancedYes
Vendor Part Number1088
Package Qty1
Package TypeEA
No Questions
No Reviews
Please click here to download the instructions PDF file
