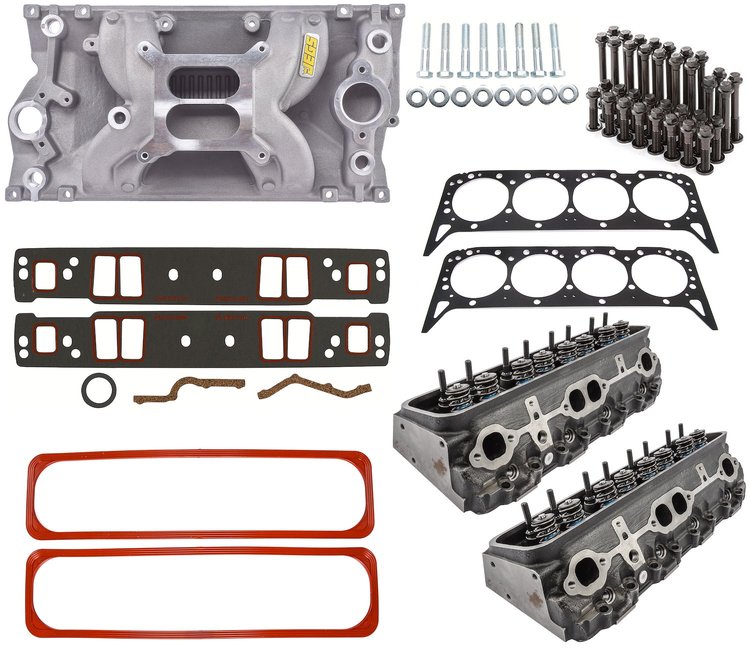

![Vortec Cylinder Head & Cool Gap Intake Manifold Kit for 1996-2002 Chevy Small Block 5.7L Engine [Satin Dual Plane]](https://www.jegs.com/images/mini_750/500/555/555-514080k2.jpg)
Vehicle Info NeededJEGSPART NUMBER: 555-514080K2
Vortec Cylinder Head & Cool Gap Intake Manifold Kit for 1996-2002 Chevy Small Block 5.7L Engine [Satin Dual Plane]
$1,50341
More than 10 available
Ships Tomorrow
Lowest Price Guarantee5.7L V8
Vortec Cylinder Heads & Intake Manifold Kit1996-2002 Chevy w/5.7L Engine Includes:
- Cylinder Heads
- Head bolts
- Head Gaskets
- Valve Cover Gaskets
- Satin Cool Gap Dual Plane Intake Manifold
- Intake Gasket Set
- Intake Bolts
JEGS 555-514080K2 Vortec Cylinder Head & Intake Manifold Kit Includes:
- (2) JEGS Small Block Chevy Cast Iron Vortec Cylinder Head for 1996-2002 Chevy 5.7L 555-514080
- (1) JEGS Head Bolt Kit for Small Block Chevy 555-83400
- (2) JEGS High-Temp Cylinder Head Gasket for Small Block Chevy 555-210041
- (1) JEGS Valve Cover Gaskets 1986-2002 Small Block Chevy with Center-Bolt Style Valve Covers 555-210076
- (1) JEGS Cool Gap Intake Manifold for Small Block Chevy with 1996-2002 Vortec L31 Cast Iron Heads, Dual Plane [Satin] 555-513036
- (1) JEGS Intake Manifold Gasket Set for Small Block Chevy 1985-1989 5.0/5.7L TPI & 1996-2002 5.7L L31 Vortec Engines 555-210003
- (1) JEGS Intake Manifold Bolts for 1996-2002 Small Block Chevy w/5.7L L31 Vortec Heads 555-83201
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Improve Compression and Increase HP
JEGS Cast Iron Vortec Cylinder Heads have fast-burn combustion chambers and high-velocity intake and exhaust ports, providing excellent performance straight out of the box.
Part TypeCylinder Head
Product LineJEGS Cast Iron GM Vortec Cylinder Heads
BrandJEGS
Part CategoryPerformance Parts
Cylinder Head MaterialCast iron
Intake Gaskets IncludedYes
Valve Cover Gaskets IncludedYes
Rocker Arm Nut Thread Size (In.)3/8"-24
Exhaust Valves IncludedYes
Intake Valve Length4.910 in (124.714 mm)
Intake Manifold IncludedYes
Engine Make/SizeChevy 5.7L (Vortec)
Retainers IncludedYes
Cylinder Head Gaskets IncludedYes
Guideplates IncludedNo
Valve Locks IncludedYes
Cylinder Head Bolts IncludedYes
Cylinder Head FinishNatural
Maximum Valve Lift0.475 in (12.065 mm)
Valve Lock Style7-degree
Number Of Springs Per ValveSingle
Valve Springs IncludedYes
Spark Plug StyleStraight
Guideplate Pushrod Size0.313 in (7.95 mm)
Intake Valves IncludedYes
QuantitySold as a kit
Valve Stem Seals IncludedYes
Intake Valve Diameter1.94 in (49.276 mm)
Exhaust Valve Length4.910 in (124.714 mm)
Exhaust Runner Volume (Cc)61
Intake Manifold Bolts IncludedYes
Outside Diameter Of Outer Spring1.25 in (31.8 mm)
Combustion Chamber Volume (Cc)64
Rocker Arm Studs IncludedYes
Cylinder Head StyleAssembled
Valve Stem Diameter11/32 in (8.73125 mm)
Part FitmentSemi Universal
Intake Runner Volume (Cc)170
Exhaust Valve Diameter1.5 in (38.1 mm)
Package Qty1
Package TypeEA
