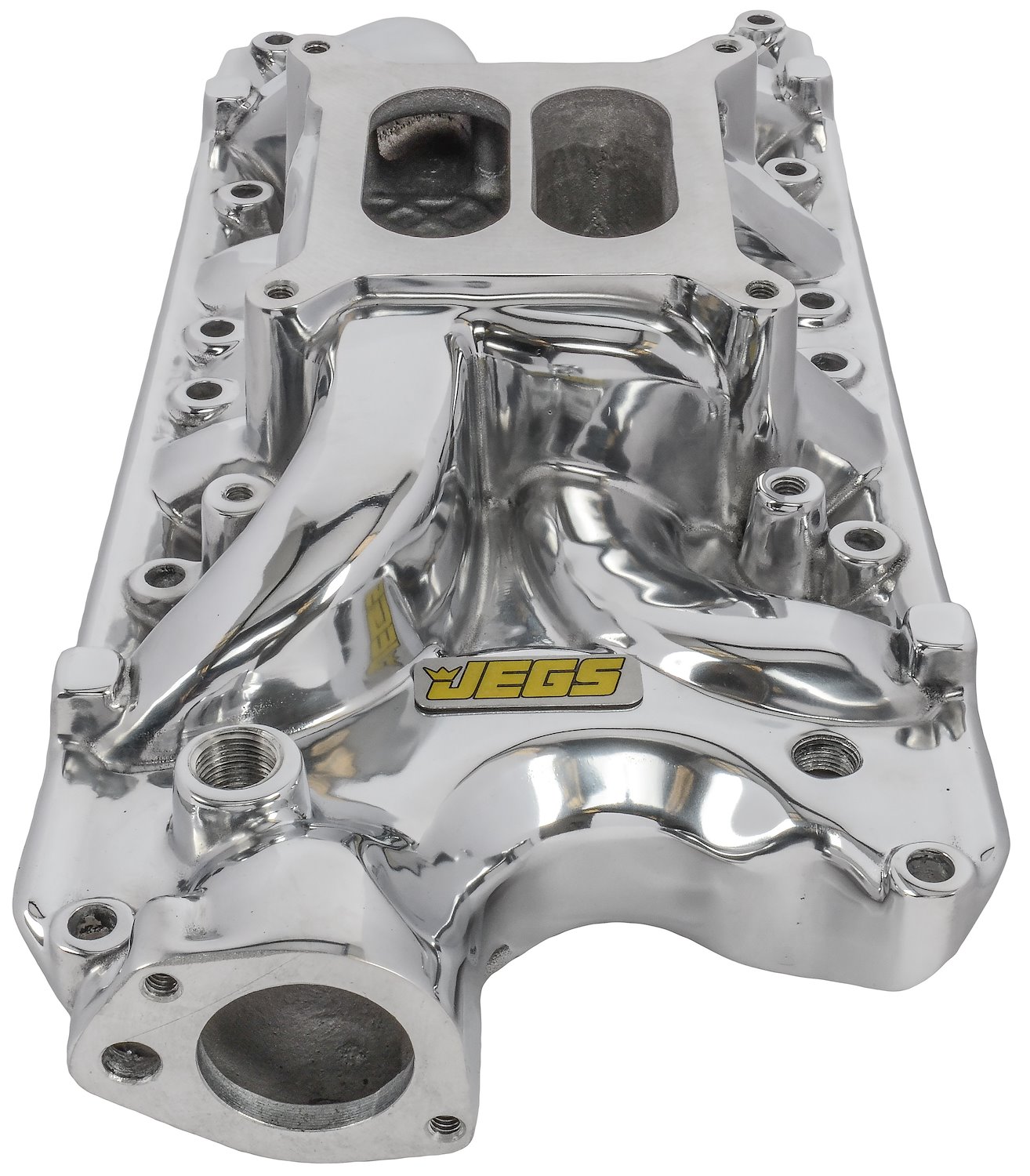

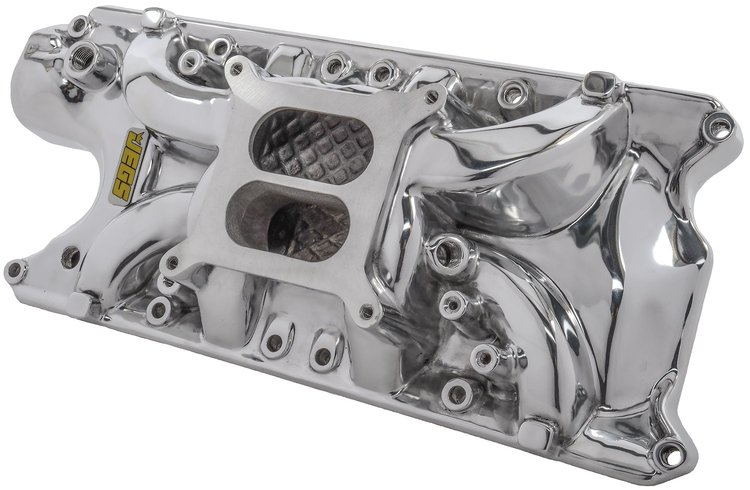

Intake Manifold for 1962-1985 Small Block Ford 260, 289 & 302 (Except Boss 302), Dual Plane 4-BBL [Polished]

Name: Intake Manifold for 1962-1985 Small Block Ford 260, 289 & 302 (Except Boss 302), Dual Plane 4-BBL [Polished]
Brand: JEGS
SKU: 555-513018
Price: 275.99 USD
Availability: InStock

^$275⁹⁹$298.09You Save$22.10

6 left in stock

Ships Today

Lowest Price Guarantee

Small Block Ford Intake Manifolds

Intake Manifold

1962-1985 Small Block Ford 260, 289 & 302 (Except Boss 302)

Dual Plane

4-BBLL Square Bore 4150/4160 Mounting Flange (non-EGR)

RPM Range: Idle to 6000 RPM

Cast Aluminum

Polished Finish

Port exit dimensions: 1.030 in. x 1.810 in.
Recommended Intake Gasket: JEGS p/n 555-210200
Intake gasket port matching is recommended for optimum performance
Estimated runner length - Shortest: 5 in.
Estimated runner length - Longest: 7 in.
Manifold height: (A) 3.960 in., (B) 4.850 in.
Click here to determine the carburetor pad height.
Aftermarket 4-bbl carbs are not compatible with Ford Auto Overdrive Transmission (AOD) unless used with JEGS Throttle Cable Bracket & Springs p/n 555-157050
It will not fit 255ci engines
No provision for divorced or heated choke
Stock/stamped steel valve covers may require 3/16" (or thicker) valve cover gaskets. We recommend 555-21120 or 555-210270 for adequate runner clearance.

JEGS Carb Recommendations/Notes
Carburetors
		570 CFM	670 CFM	770 CFM
		Up to 300 HP	300 to 400 HP	400 to 500 HP
Manual Choke		510-0-81570	510-0-81670	510-0-81770
Electric Choke		510-0-80570	510-0-80670	510-0-80770
Carburetor Studs
555-15840	1-1/2" Studs	Suggested for carb and gasket only
555-15841	2" Studs	Suggested for carb and 1/2" spacer
555-15842	2-1/2" Studs	Suggested for carb and 1" spacer
555-15846	3-1/2" Studs	Suggested for carb and 2" spacer
Carburetor Base Gaskets
555-16100	Open
555-16105	4-Hole
Intake Manifold Bolts
555-83210	Ford 289-351W

Carburetor Fuel Inlet Lines & Fittings
Carburetor Spacers
Fuel Filters
Carburetor Linkage, Choke Kits & Components

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

Part TypeIntake Manifold

BrandJEGS

Package Height5.5

Package Width13.6

Package Length23.4

Weight14.6 PG

Part CategoryPerformance Parts

Engine Block StyleStock/OEM standard deck

Intake MaterialCast Aluminum

Intake StyleDual plane

Gasket Or Seal IncludedNo
