![Intake Manifold Kit for 1962-1985 Small Block Ford 260, 289 & 302 (Except Boss 302), Dual Plane 4-BBL [Black]](https://www.jegs.com/images/mini_750/500/555/555-513006k.jpg)
Vehicle Info NeededJEGSPART NUMBER: 555-513006K

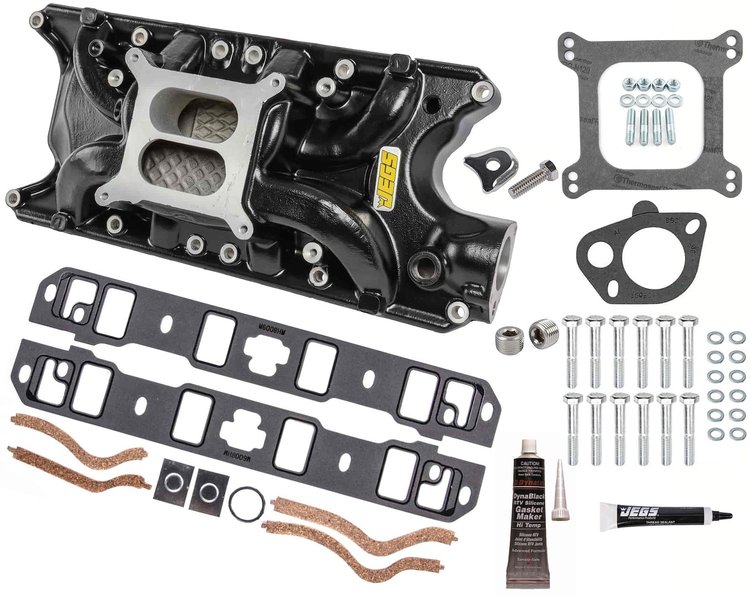

Intake Manifold Kit for 1962-1985 Small Block Ford 260, 289 & 302 (Except Boss 302), Dual Plane 4-BBL [Black]
$32210
8 left in stock
Ships Today
Lowest Price GuaranteeSmall Block Ford Intake Manifolds
Intake Manifold Kit1962-1985 Small Block Ford Includes:
- Intake Manifold
- Intake Gaskets
- Intake Bolts
- Distributor Hold Down
- Carb Stud Kit
- Carb Base Gasket
- Thermostat Gasket
- Pipe Plugs
- Thread Sealant
- RTV
JEGS 555-513006K Small Block Ford Intake Manifold Kit Includes:
- (1) JEGS Intake Manifold for 1962-1985 Small Block Ford 260, 289 & 302 (Except Boss 302), Dual Plane 4-BBL [Black] 555-513006
- (1) JEGS Intake Manifold Gaskets Ford 260-351W 555-210200
- (1) JEGS Intake Manifold Bolts for Small Block Ford 289-302-351W 555-83210
- (1) JEGS Chrome Distributor Hold-Down for Small Block Ford 289-302-351W 555-40692
- (1) JEGS Carburetor Stud Kit [1 1/2 in. Long] 555-15840
- (1) JEGS Carburetor Base Gasket Square Flange 555-16100
- (1) JEGS Thermostat Gasket 555-53285
- (1) JEGS Stainless Steel Pipe Plugs 1/2 in. NPT 555-100454
- (1) JEGS Black RTV Temperature Resistant up to 625 Degrees F [3.8 oz. Tube] 555-28035
- (1) JEGS Thread Sealant 1/2 oz Tube 555-28011
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Dual-Plane Performance Intake
JEGS Champion Series 331 Dual Plane Aluminum Intake Manifolds feature the latest machining techniques to ensure the highest-quality performance. The cast aluminum intake manifold construction yields a lighter, more consistent casting for smoother intake runners, optimal fuel atomization, and improved fuel & air distribution to the cylinders—resulting in more power!
Part TypeIntake Manifold
Product LineJEGS Champion Series 331 Performance Dual Plane Aluminum Intake Manifolds
BrandJEGS
Part CategoryPerformance Parts
Engine Block StyleStock/OEM standard deck
UsageStreet/Hi-Performance
Hardware IncludedYes
Intake MaterialCast Aluminum
Intake StyleDual plane
Gasket Or Seal IncludedYes
EmissionWithout EGR
QuantitySold as a kit
Port Width1.030 in (26.162 mm)
Mounting Hardware IncludedYes
Cylinder Head TypeStandard
Intake FinishBlack powdercoated
Carburetor QuantityOne 4-BBL
Engine Make/SizeFord Small Block
Port Height1.81 in (46 mm)
Basic Operating Rpm RangeIdle-6,000
EgrWithout EGR
Rpm RangeIdle-6000
Part FitmentSemi Universal
Intake Manifold Height4.405 in (111.887 mm)
Package Qty1
Package TypeEA
