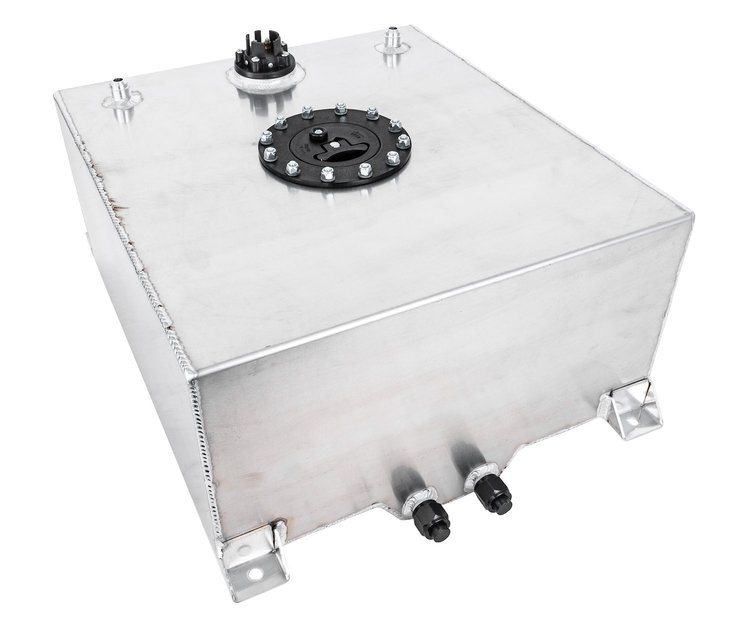

JEGS 555-15387 15-Gallon Fuel Cell Features:

• Constructed from high-quality .090 in. wall thickness aluminum
• Polished for great looks and long life
• Specifications: 18 in. L x 20 in. W x 9 in. H and a sump depth of 2 in.
• Mounting tabs located on each of the four corners

JEGS 555-15387 15-Gallon Fuel Cell Includes:

• (1) 0-90 ohm sending unit bolted into the top of the cell
• (2) -10 AN male outlet fittings welded into the bottom of the cell
• (1) -10 AN male return fitting welded into the top of the cell
• (1) -10 AN vent fitting welded into the top of the cell

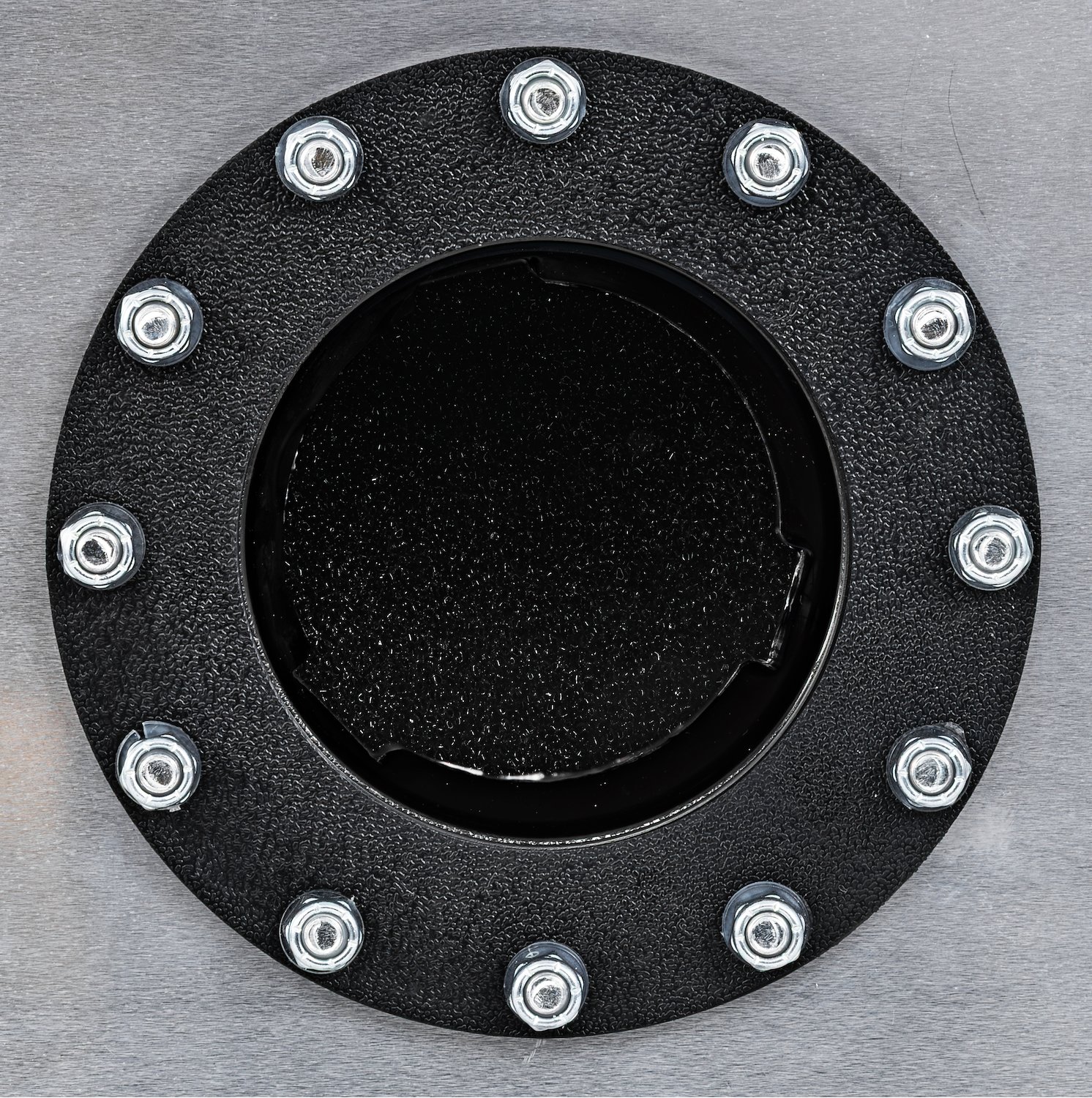

• Flush mount cap

JEGS 555-15387 15-Gallon Fuel Cell Note:

• This fuel cell does not have a roll-over vent valve, either vent or return port on the top of the cell can be used as a return connection. The current foam in this cell is only compatible with gasoline-based fuels and must be removed when using Alcohol, Methanol, and Ethanol-based fuels (E-85, E-89, E-90, E-100, etc.), since the water content in alcohol-based fuels may cause the foam to break down. A roll-over vent valve is available for purchase separately. We recommend JEGS -10 AN external mount valve 555-15379

FAQ

What is the best aluminum for fuel cells?

• The JEGS 15387 15-gallon Fuel Cell, crafted from high-grade aluminum, ensures durability and resistance to corrosion, making it an excellent choice for performance and reliability. Upgrade to the polished aluminum finish for both style and substance.

How thick should an aluminum fuel cell be?

• No less than 0.090 inches for smaller tanks and for larger tanks should be no less than .125 inches. The JEGS 15387 15-gallon Fuel Cell is engineered with 0.090 in thickness which is an ideal thickness, balancing strength, and weight for optimal performance in various applications. Review the specifications to ensure the perfect thickness for your specific needs.

How big is a 15-gallon fuel cell?

• 18 in. L x 20 in. W x 9 in. H and capacity of 15 gallons. The JEGS 15387 15-gallon Fuel Cell provides a generous 15-gallon capacity, offering ample fuel storage for extended rides or races without sacrificing space or weight. Explore the dimensions to confirm suitability for your vehicle.

Are aluminum fuel cells safe?

• Yes, the JEGS 15387 15-gallon Fuel Cell, constructed from quality aluminum, prioritizes safety. It meets industry standards, ensuring secure and reliable fuel containment for your peace of mind. Drive confidently with a fuel cell that prioritizes both safety and performance.

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
