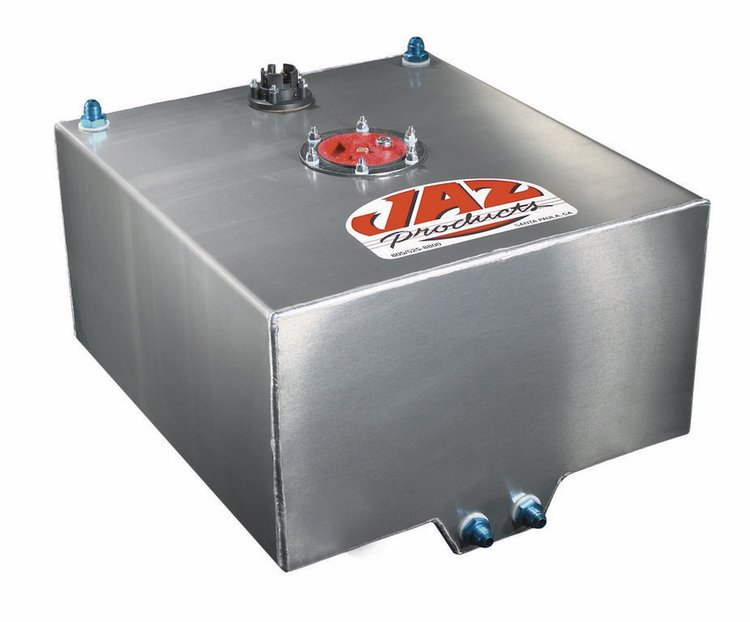

Aluminum Fuel Cell 15-Gallon 0-90 ohm with Foam
- Aluminum Fuel Cell
- 15-Gallon
- Flush Mount Aircraft-Style Cap Assembly
- 0-90 ohm Sending Unit
- With Safety Foam
- 20" L x 18" W x 10" H
- 5051 aluminum TIG welded
- Safety foam filled
- Aircraft style flush mount assembly
- Two AN-8 fast flow outlet fittings in the sump
- One AN-8 return fitting
- One AN-8 tip over valve vent fitting
- 0-90 ohm sending unit installed
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
JAZ Products maintains their own equipment and molds, producing only the highest quality fuel cells. Their Aluminum Fuel Cells are constructed from 5051 grade, tig welded aluminum with mounting tabs for exceptional quality over the competition. Each aluminum fuel cell features a flush mounted aircraft-style cap assembly or low pro drag fill cap assembly. Available with foam, JAZ only uses the best safety foam on the market, which has up to a 10x longer service lifespan than that of other non-fuel approved foams. All aluminum fuel cells exceed SFI 28.1 and are accepted by most sanctioning organizations.
Show More
Features:
- 5051 grade, tig welded aluminum
- Includes mounting tabs
- Flush mounted aircraft-style cap assembly or Low pro drag fill cap assembly
- Aviation safety foam
- Two AN-8 outlet fittings
- One AN-8 return fitting
- One AN-8 vent fitting
- 28.1 SFI
Note: Although these fuel cells exceed SFI 28.1, only fuel cells labeled with SFI certification are actually certified. Only fuel cells that are specifically designed for classes that require SFI certification receive a serial number and SFI label. (Additional charges apply for SFI serial number and label.)
