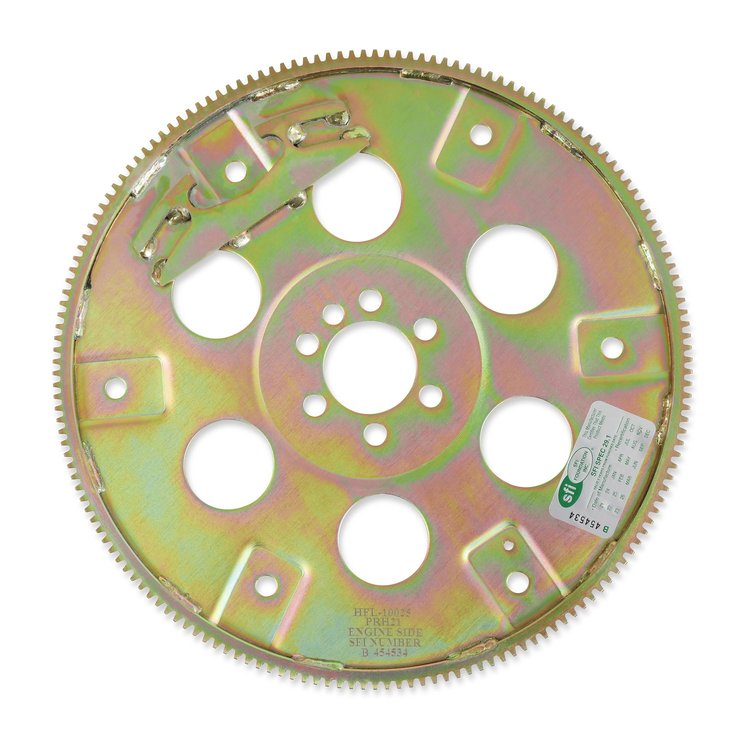

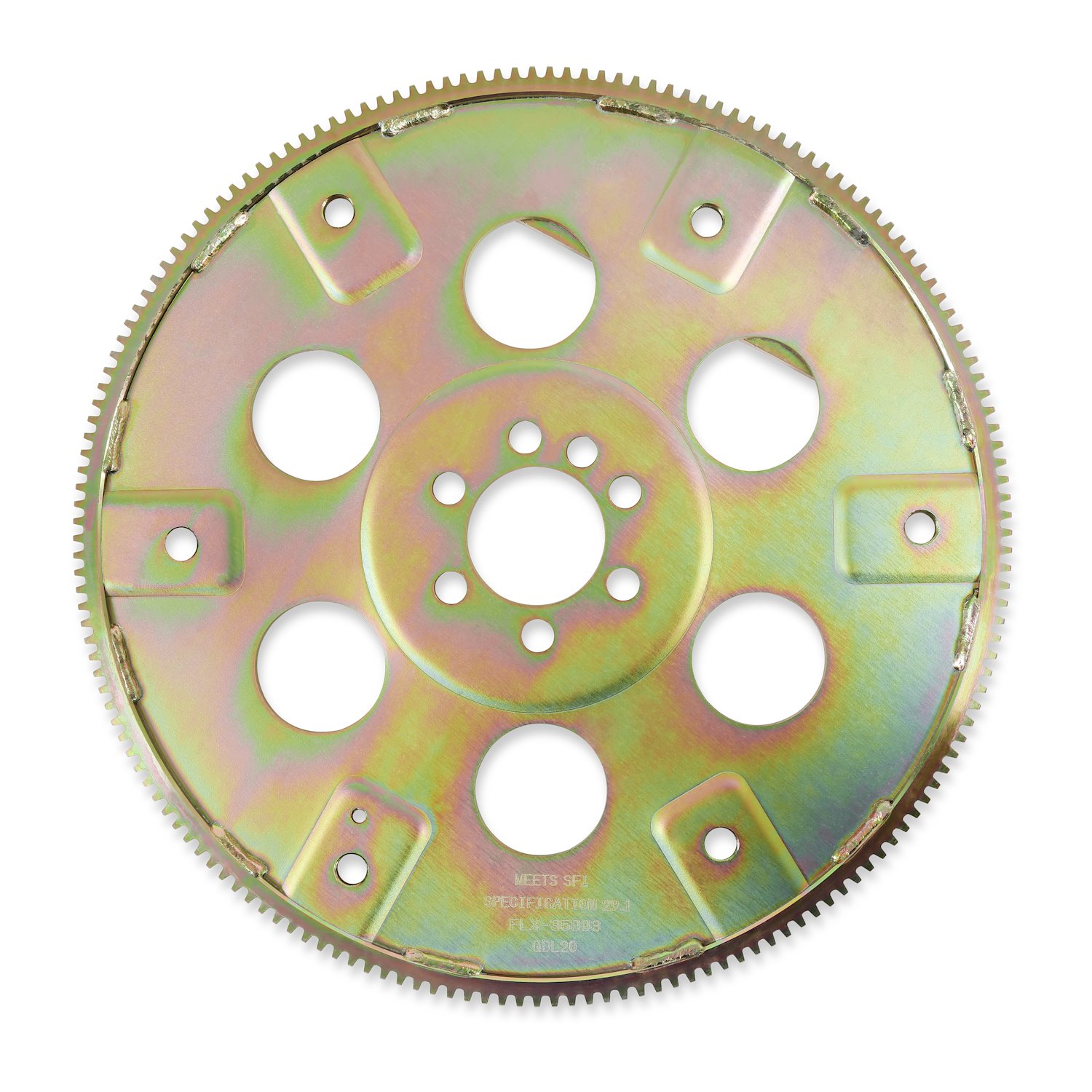

Heavy-Duty Flexplate 1986-97 Chevy V8

Name: Heavy-Duty Flexplate 1986-97 Chevy V8
Brand: HAYS
SKU: 490-10-025
Price: 181.95 USD
Availability: InStock

^$181⁹⁵

2 left in stock

Ships Today

Lowest Price Guarantee

Chevy

External Balance

Heavy-Duty Flexplate

1986-97 Chevy V8

External Balance

1-Piece Rear Main Seal

168-Tooth

10.75''/11.5'' Dual Converter Bolt Pattern

SFI 29.1 Approved

Zinc Dichromate Finish

HAYS / MR GASKET 10-025 Features:

Constructed of thicker than stock steel plate to withstand the stress of high stall speed converters and high RPM enginge Securely welded ring gear with dual bolt pattern for use with either Powerglide or Turbo-Hydromatic transmission Meets SFI specification 29.1 for racing Hays heavy-duty flexplates for high performance and competition engines are constructed of a thicker than stock steel plate, enabling them to withstand the stress of high-stall torque converters and high-RPM engines. While factory stock plates tend to crack around the crankshaft hub when punished under high torque and RPM conditions, the thicker Hays flexplate handles the force. These H.D. flexplates are supplied with a ring gear that is securely welded in place and feature dual bolt patterns for use with either a Powerglide or Turbo-Hydromatic torque converter. All Hays heavy-duty flexplates are zinc-dichromate plated to resist corrosion and are SFI certified under specification 29.1.

S.F.I. 29.1 Certified
168 Tooth Ring Gear
Designed for Externally Balanced Chevy V8 Engines
Zinc Dichromate plated for corrosion resistance
Heavy Duty Design

SFI-Certified Flexplates for Racing

Hay's heavy-duty Flexplates are constructed from thicker-than-stock grade 80 steel and engineered to withstand the force of high-stall torque converters and high-RPM performance and competition engines. This zinc-dichromate plated 29.1 or 29.3 SFI-certified flexplates are supplied with a ring gear that is securely welded in place and feature dual bolt patterns for flexibility in adapting to multiple transmission-style torque converters.

Part TypeFlexplate

Product LineHays Steel SFI Certified Flexplates

BrandHAYS

Package Height1.7

Package Width15.8

Package Length16.1

Weight7.55 PG

Part CategoryPerformance Parts

Ring Gear Tooth Quantity168-tooth

Flexplate MaterialSteel

Sfi Certification29.1

Rear Main Seal Style1-piece
