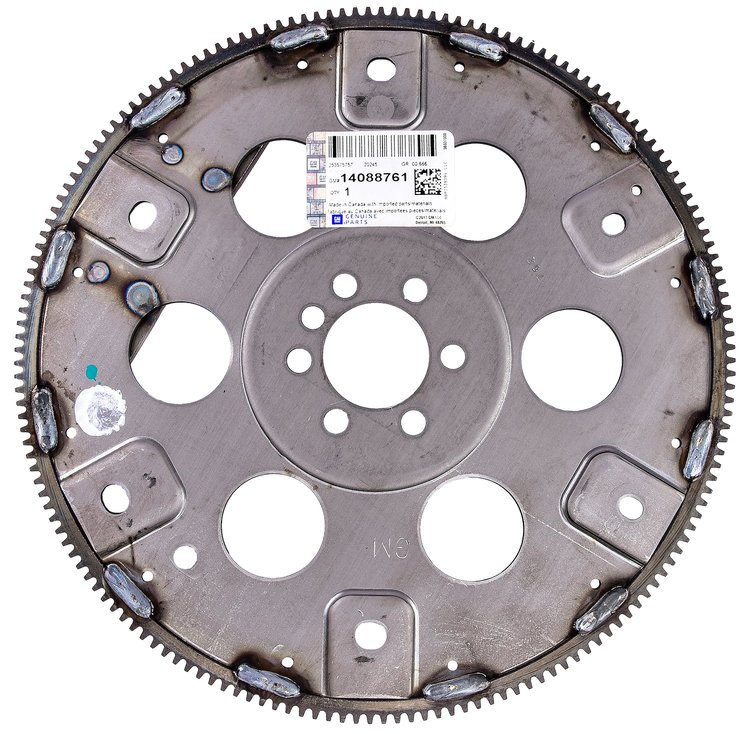

Flexplate for 1986-up Chevy V8 and 90 degree V6
InfoVehicle Info Needed
CHEVROLET PERFORMANCEPART NUMBER: 809-14088761

Flexplate for 1986-up Chevy V8 and 90 degree V6

$17999
ShippingShips on Sep 11, 2026
Lowest PriceLowest Price Guarantee

GM Flexplates
Flexplate
  • 1986-up Chevy V8 and 90 degree V6
  • One-Piece Rear Seal
  • External Balance
  • 14 in. Outside Diameter
  • 3 in. Crank Flange Bolt Pattern
  • 10.750 in. and 11.500 in. Torque Converter Bolt Pattern
  • 168-tooth Ring Gear
  • Sold Individually

    Chevy 14088761 Dimensions:

    • Fits 1986-up Chevy Small Block and 90 degree V6
    • Outside Diameter: 14 in.
    • Crank Flange Bolt Pattern: 3in.
    • Converter Bolt Pattern: 10.750 in. & 11.500 in.
    • Starter Ring Gear Teeth: 168
    • Fits engines with a one-piece crank seal

    Note: Torque converters for TH350 and TH400 transmissions are produced with both 10.750 in. and 11.500 in. diameter converter bolt patterns. To identify the correct pattern, measure from the converter center to an attaching bolt hole and then multiply this dimension by 2.

    • Quality Flexplates for Automatic Transmissions

      At the opposite end of the crankshaft from the balancer is the flexplate, which connects the engine to the automatic transmission through the torque converter assembly. Flexplates help transfer power from the engine to the wheels. Chevrolet Performance offers both internally and externally balanced Chevy flexplates. It is critical that you use the correct design for your specific engine application. Engines with one-piece crankshaft seals require externally balanced flexplates (except for ZZ427, ZZ572/620, ZZ572/720R and the Anniversary Edition 427).

      Show More

      Note: Torque converters for TH350 and TH400 transmissions are produced with both 10.75" and 11.50" diameter converter bolt patterns. To identify the correct converter bolt pattern, measure from the converter center to an attaching bolt hole and then multiply this dimension by 2.

    Part TypeFlexplate
    Product LineChevrolet Performance Flexplates
    BrandCHEVROLET PERFORMANCE
    Package Height3.6
    Package Width16.0
    Package Length16.3
    Weight6.65 PG
    Part CategoryReplacement Parts
    Ring Gear Tooth Quantity168-tooth
    Flexplate MaterialSteel
    Rear Main Seal Style1-piece
    QuantitySold individually
    Part FitmentDirect Fit
    Safety RatingNot SFI Approved
    Engine BalanceExternal
    Vendor Part Number14088761
    Package Qty1
    Package TypeEA
