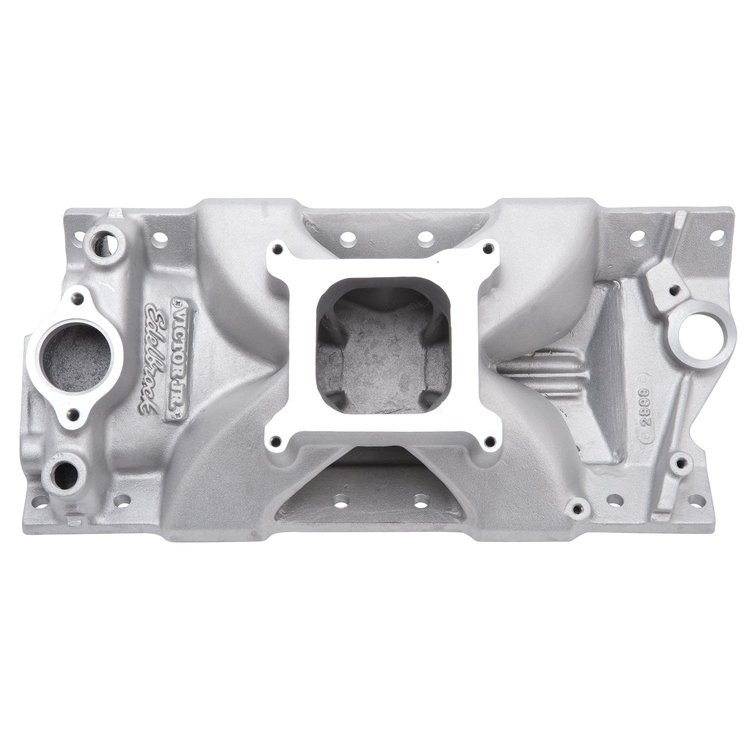

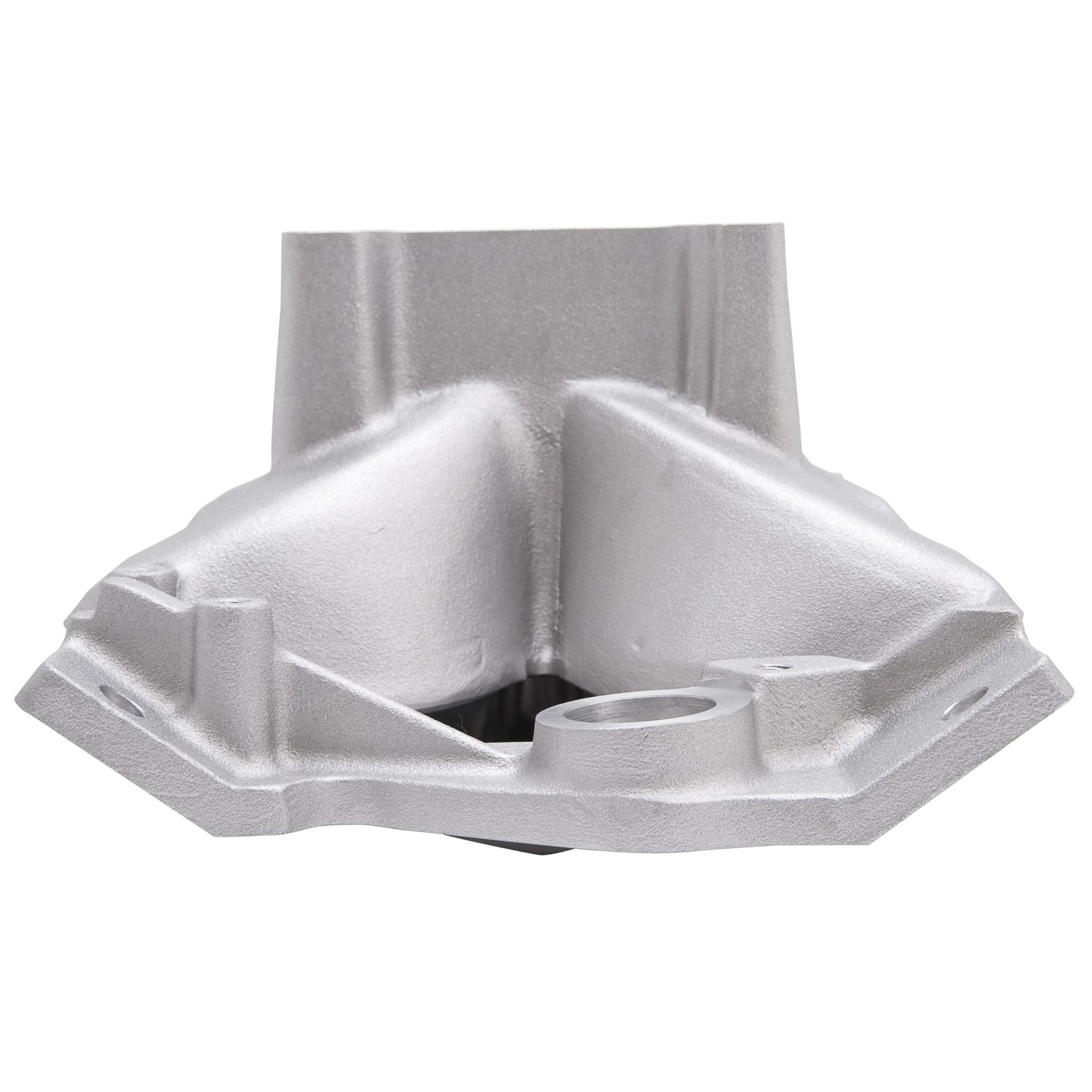

Victor Jr. Tall Intake Manifold Small Block Chevy

Name: Victor Jr. Tall Intake Manifold Small Block Chevy
Brand: EDELBROCK
SKU: 350-2999
Price: 487.95 USD
Availability: InStock

^$487⁹⁵

4 left in stock

Ships Today

Lowest Price Guarantee

Best Value

Save
^$269⁹⁶

555-513026

Intake Manifold for 1955-1995 Small Block Chevy 262-400, Hi-Rise Single Plane [Satin]

^$217⁹⁹

Victor Jr.

Small Block Chevy
4150-style Square Bore Carb Flange
Standard Port Location
3500-8000 RPM Range
1'' taller than Victor Jr. 350-2975, Use when carb spacers are not allowed.
Satin Finish

These versatile manifolds are excellent for many applications from high-performance street to drag/circle track racing. They provide maximum performance for engines with standard port location, iron and aluminum cylinder heads. The low-profile of the #2975 works well in applications with minimal hood clearance and where 1" or 2" spacers can be used for performance tuning. When carb spacers are not allowed, the #2999 should be used. The Victor Jr. Port Matched manifold has CNC-blended port exits that match any competition head using JEGS gasket p/n 555-210001, Edelbrock gasket p/n 350-7201 or Fel-Pro gasket p/n 375-1206.
Installation Notes:
Port exit dimensions: 1.10' x 1.90'
Distance from bolt hole centerline to port roof 0.80'; to port floor 1.10'
Carb pad height = 5.58' with 0° carb angle.
Recommended intake gasket; JEGS 555-210001
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

Since founder Vic Edelbrock Sr. began building performance intake manifolds in 1938, Edelbrock has grown into one of the most trusted names in American high-performance parts, from carburetors and intake manifolds to cylinder heads, crate engines, and EFI systems. JEGS has spent decades supplying Edelbrock components to racers, engine builders, and street enthusiasts, backing this extensive lineup with in-house technical support, fast shipping, and a Price Match Guarantee so you can choose proven Edelbrock parts with confidence.

Professionally Engineered Intake Manifolds

Expertly crafted from cast aluminum, Edelbrock Victor Series Intake Manifolds are engineered in conjunction with leading engine builders and racers from all forms of competition to incorporate a modern design with the latest racing technology. JEGS offers a comprehensive selection of high-performance Edelbrock Victor-style manifolds, so you can choose the best "Victor" to match your carburetor, cams, and heads for a winning formula of horsepower, torque, and RPM. Victor Jr. manifolds are cast with excess mass in appropriate places for custom port matching.

Part TypeIntake Manifold

Product LineEdelbrock Victor Series Intake Manifolds for Small Block Chevy

BrandEDELBROCK

Package Height9.9

Package Width10.9

Package Length22.1

Weight20.35 PG

Part CategoryPerformance Parts

Engine Block StyleStock/OEM standard Deck

UsageRacing

Number Of CarbsOne

Intake MaterialAluminum
