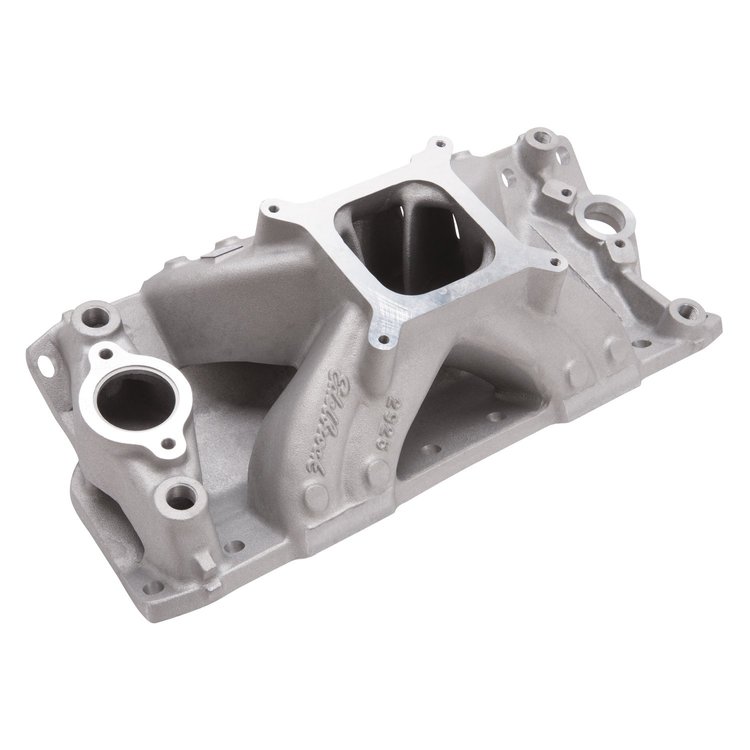

Super Victor Intake Manifold for Small Block Chevy

Name: Super Victor Intake Manifold for Small Block Chevy
Brand: EDELBROCK
SKU: 350-2925
Price: 474.95 USD
Availability: InStock

^$474⁹⁵

2 left in stock

Ships Today

Lowest Price Guarantee

Best Value

Save
^$256⁹⁶

555-513026

Intake Manifold for 1955-1995 Small Block Chevy 262-400, Hi-Rise Single Plane [Satin]

^$217⁹⁹

Super Victor

Small Block Chevy
4150-style Square Bore Carb Flange
Standard Port Location
3500-8000 RPM Range
Satin Finish

The Super Victor p/n 350-2925 is a high performance feature packed small-block racing manifold for standard port location 23-degree cylinder heads. A taller profile with extra long runners that extend into the plenum offers increased volume. The cross-sectional area of the runners are tuned to complement the runner length creating substantial torque increases at 4500-5500 rpm. The Super Victor also has many features that will be appreciated by the serious engine builder, including: Slotted flange bolt holes to allow mating on decked blocks or milled heads. Rear water outlets allow custom cooling system routing. The flange above the intake ports is machined flat to provide a straight-line reference for port-matching layout. A boss for a distributor clamp has been added on the left side, for easier to access when timing an engine. Each runner has a nitrous boss to aid in fogger nozzle installation.
Installation Notes:
Port exit dimensions: 1.20' x 2.00'
Distance from bolt hole centerline to port roof 0.85'; to port floor 1.15'
Carb pad height = 5.50' with 0° carb angle.
Recommended intake gasket: JEGS p/n 555-210001

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

Since founder Vic Edelbrock Sr. began building performance intake manifolds in 1938, Edelbrock has grown into one of the most trusted names in American high-performance parts, from carburetors and intake manifolds to cylinder heads, crate engines, and EFI systems. JEGS has spent decades supplying Edelbrock components to racers, engine builders, and street enthusiasts, backing this extensive lineup with in-house technical support, fast shipping, and a Price Match Guarantee so you can choose proven Edelbrock parts with confidence.

Professionally Engineered Intake Manifolds

Expertly crafted from cast aluminum, Edelbrock Victor Series Intake Manifolds are engineered in conjunction with leading engine builders and racers from all forms of competition to incorporate a modern design with the latest racing technology. JEGS offers a comprehensive selection of high-performance Edelbrock Victor-style manifolds, so you can choose the best "Victor" to match your carburetor, cams, and heads for a winning formula of horsepower, torque, and RPM. Victor Jr. manifolds are cast with excess mass in appropriate places for custom port matching.

Part TypeIntake Manifold

Product LineEdelbrock Victor Series Intake Manifolds for Small Block Chevy

BrandEDELBROCK

Package Height7.6

Package Width14.9

Package Length23.7

Weight19.6 PG

Part CategoryPerformance Parts

Engine Block StyleStock/OEM standard deck

UsageRacing

Number Of CarbsOne

Intake MaterialAluminum
