Vehicle Info NeededDERALEPART NUMBER: 259-18217

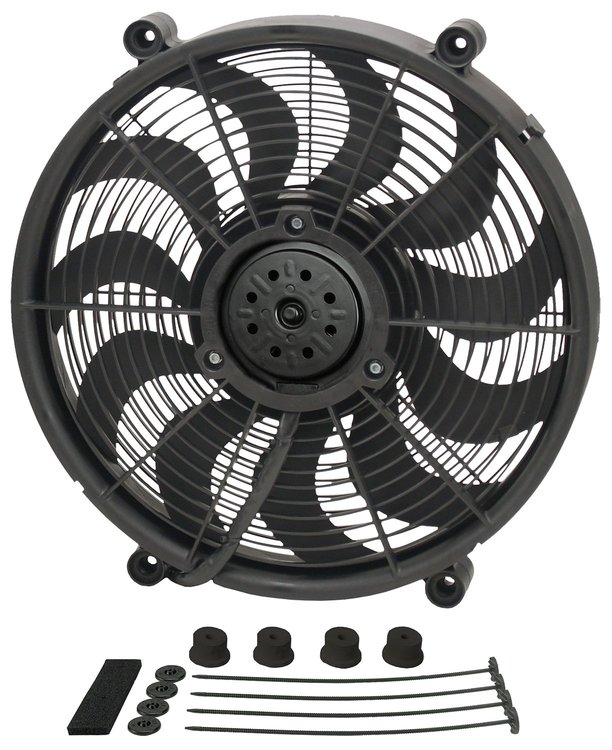

17" High Output Single RAD Electric Fan - Standard Mounting Kit 2400/1800 cfm
$21969
3 left in stock
Ships Today
Lowest Price GuaranteeHigh Output Single RAD Electric Fans with Standard Mounting Kit
- 17'' High Output Single RAD Electric Fan - Standard Mounting Kit
- 2400/1800 cfm
- 23.5/17.4 Amps
- 16-7/8'' W x 16-7/8'' H x 2-5/8'' D
Fan Size: 17'
CFM: 2400 high / 1800 low
Amp Draw: 23.5 high / 17.4 low
Height: 16-7/8'
Width: 16-7/8'
Shroud Depth: 2-5/8'
Overall Depth: 2-5/8'
Mounting: 4 holes; 15-5/8' x 8-7/8'
Designed for maximum performance at high static pressure loads to improve cooling, these accessory electric fans allow you to compliment or replace belt-driven fans that steal horsepower and undermine fuel economy.
Features:
- Use as pusher or puller without flipping blade or changing motor leads
- State-of-the-art symmetrical design
Show More
- High Output 265 watt 2-speed motor
- Ultra-quiet patented skewed blade design
- Multiple mounting options
- Premium - Patented ratchet mounting system
- Standard - Push-through plastic rod mount system
- MADE in the USA
 Premium Mounting Kit |  Standard Mounting Kit |
 |  |
Part TypeElectric Fan
Product LineDerale High Output Single RAD Push & Pull-Style Electric Fans
BrandDERALE
Package Height16.875 in (428.625 mm)
Package Width16.875 in (428.625 mm)
Package Length18.8
Weight8.7 PG
Part CategoryAccessories
Blade MaterialPlastic
Fan QuantitySingle
Number Of Blades11 blades
Air Conditioning Relay IncludedNo
QuantitySold individually
Mounting Hardware IncludedYes
Thickness2.625 in (66.7 mm)
Fan Diameter17 in (431.8 mm)
Blade ColorBlack
Amp Draw23.50 amps
Mounting Brackets IncludedNo
Part FitmentSemi Universal
Maximum Fan Cfm2,400 cfm
Vendor Part Number18217
Package Qty1
Package TypeEA
