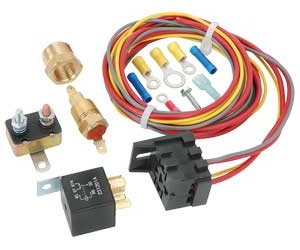

Single Electric Fan Wiring Harness & Relay Kit 30 Amp [200 degrees on 185 degrees off]
InfoVehicle Info Needed
JEGSPART NUMBER: 555-10561

Single Electric Fan Wiring Harness & Relay Kit 30 Amp [200 degrees on 185 degrees off]

$4250$46.99You Save$4.49
More than 10 available
ShippingShips Today
Lowest PriceLowest Price Guarantee

Temperature-Controlled Fan Harness & Relay Kits
Single Electric Fan Wiring Harness & Relay Kit
  • Includes:
    • 200 degrees on 185 degrees off Sensor for 195 degree Thermostat
    • 10-18 Ga. High Temp Cross Link Wire
    • 30 Amp Relay
    • 30 Amp Circuit Breaker
    • Hardware

    • Heavy-duty 10-18 gauge wiring harness
    • Provides continuous supply of voltage preventing drop off common with oe wire
    • Includes: 30-amp relay, 30-amp circuit breaker, 80” of wire, and terminals & connectors
    • Made in usa with high quality materials and assembly
    • Activates radiator cooling fan turning it on at 200° f and off at 185° fahrenheit

      • NOTE: Use liquid PTFE® thread sealing compound to avoid leaks and to prevent galling of threads. Pipe tape can insulate the switch from creating a proper ground which is vital to the operation of the switch.

      Includes:

      • (1) JEGS 30 Amp Relay 555-10557
      • (1) JEGS 30 Amp Circuit Breaker 555-10591
      • (1) JEGS Temperature Sensor with 3/8 in. NPT Threads 555-10563

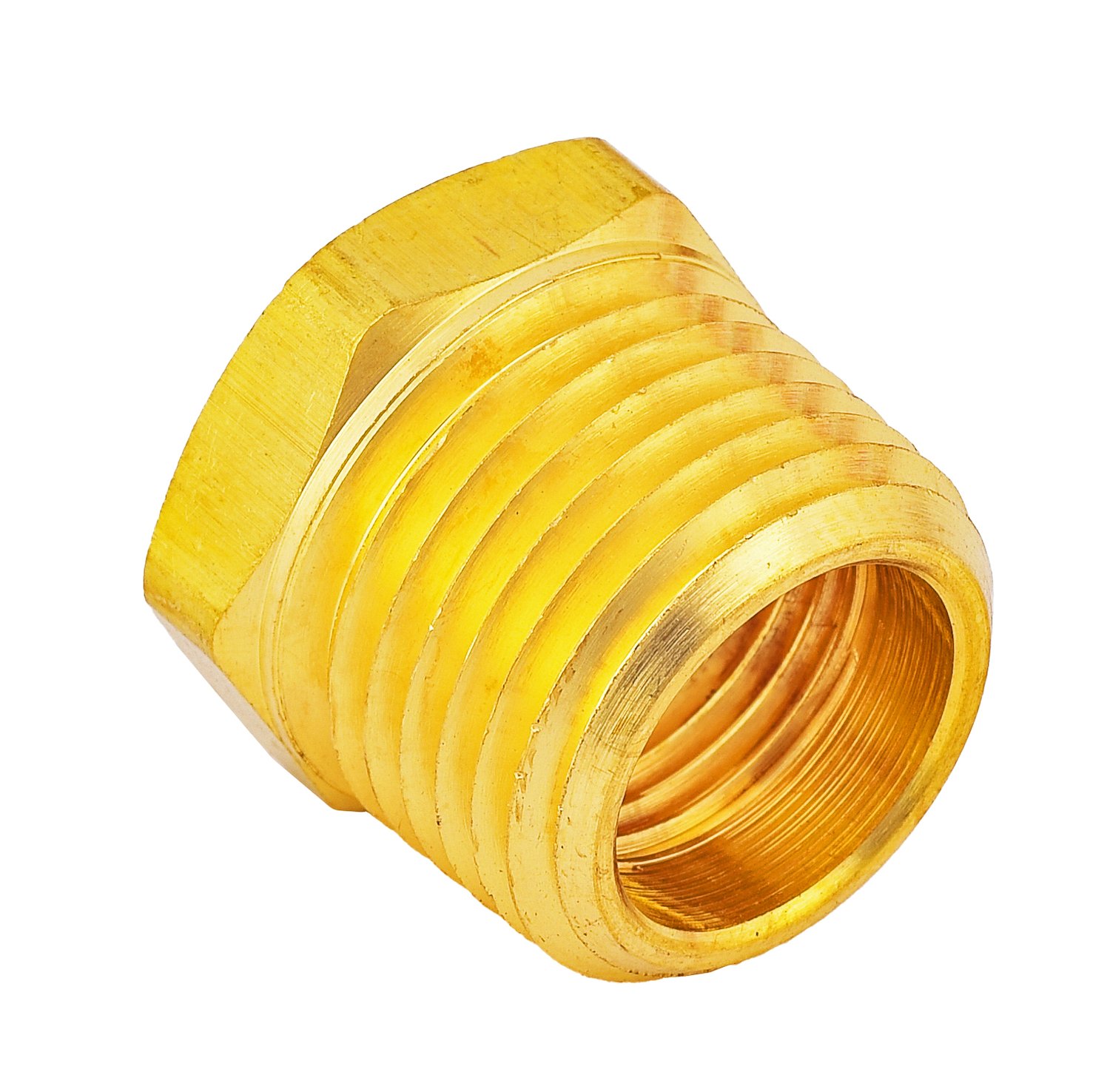

      • (1) JEGS 3/8 in. NPT to 1/2 in. NPT Adapter 555-16094
      • 80 in. of 10-18 Gauge Wire
      • Assorted Terminals & Connectors
    • Part TypeRelay
    BrandJEGS
    Package Height3.3
    Package Width5.4
    Package Length7.8
    Weight1.08 PG
    Part CategoryPerformance Parts
    Wiring Harness IncludedYes
    Amperage Rating30 amps
    Terminal TypeSpade
    Part FitmentUniversal
    Volts12 volts
    PoleSingle
    Package Qty1
    Package TypeEA
    No Questions
    No Reviews
    Please click here to download the instructions PDF file
