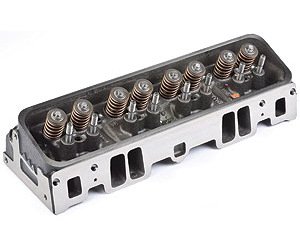

Bow Tie Small Port Cast Iron Vortec Cylinder Head, 185cc Intake Ports
InfoVehicle Info Needed
CHEVROLET PERFORMANCEPART NUMBER: 809-19331470

Bow Tie Small Port Cast Iron Vortec Cylinder Head, 185cc Intake Ports

$1,28979
ShippingShips on Sep 24, 2026
Lowest PriceLowest Price Guarantee

Bow Tie Small Port Vortec Cylinder Heads
  • Small Block Chevy
  • Sold Individually
    • Small Port Cast Iron Vortec Cylinder Head
    • 185cc Intake Ports
    • 65cc Exhaust Ports
    • Completely Assembled
    • Each

    • Use Fel-Pro exhaust gasket #375-1470.
    • 66cc Combustion Chamber
    • 23 Valve Angle
    • 2.000" Intake / 1.550" Exhaust Valves
    • Straight Plug
    • Screw-In Rocker Stud

    Emissions Note:

    This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

    CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

      America's favorite high-performance cast iron small block cylinder heads offer big power and bigger value. Chevrolet Vortec Cylinder Heads' fast burn combustion chamber and high-velocity ports combine to produce big horsepower. Vortec Heads can be mildly ported for additional performance and milled up to .040'' for increased compression ratio. The Vortec Heads come with various intake and exhaust valve sizes to complement the high-velocity port design and your performance needs. Vortec Heads outflow Bow Tie Heads right out of the box and are a 20 to 40 horsepower bolt-on increase over earlier cast iron small block heads.

      Show MoreVortec Heads require a Vortec-style intake manifold due to an improved manifold mounting flange and gasket design and raised intake ports. Modifying the heads to accept early intake manifolds is not recommended. Vortec Cylinder Heads fit all 1955-Present small blocks except LT1/LT4 reverse coolant flow engines and current LS1-style engines.

      JEGS Easy Kits are designed by JEGS professionals so you get all the parts you need.

    Part TypeCylinder Head
    Product LineChevrolet Performance Small Block Chevy Cast Iron Vortec Cylinder Heads
    BrandCHEVROLET PERFORMANCE
    Package Height10.1
    Package Width12.3
    Package Length24.8
    Weight54.0 PG
    Part CategoryPerformance Parts
    Maximum Valve Lift0.53 in (13.462 mm)
    Part FitmentSemi Universal
    Vendor Part Number19331470
    Package Qty1
    Package TypeEA
