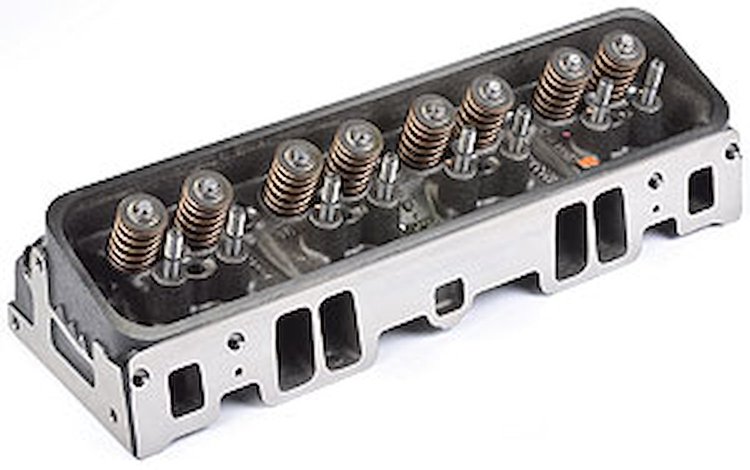

SBC Cast Iron Vortec Cylinder Head 170cc Intake Ports
InfoVehicle Info Needed
CHEVROLET PERFORMANCEPART NUMBER: 809-12558060

SBC Cast Iron Vortec Cylinder Head 170cc Intake Ports

$43799
ShippingShips on Sep 11, 2026
Lowest PriceLowest Price Guarantee

Cast Iron Vortec SBC Head
    Small Block Chevy Cast Iron Vortec Cylinder Head
  • 170cc Intake Ports
  • 64cc Combustion Chambers
  • 1.940'' Int/1.500'' Exh Valves
  • .475'' Max Lift
  • Straight Plug
  • Assembled, Sold Individually

    Technical Specifictions:
  • Intake Valve: 10241743
  • Exhaust Valves: 12550909
  • Valve Spring Retainer: 10241744
  • Intake Seals: 10212810
  • Exhaust Seals: 12564852
  • Valve Springs: 10212811
  • Valve Locks: 24503856
  • Casting Number: 12558062

    America's favorite high-performance cast iron small block cylinder heads offer big power and bigger value. Chevrolet Vortec Cylinder Heads' fast burn combustion chamber and high-velocity ports combine to produce big horsepower. Vortec Heads can be mildly ported for additional performance and milled up to .040'' for increased compression ratio. The Vortec Heads come with various intake and exhaust valve sizes to complement the high-velocity port design and your performance needs. Vortec Heads outflow Bow Tie Heads right out of the box and are a 20 to 40 horsepower bolt-on increase over earlier cast iron small block heads.

    Show MoreVortec Heads require a Vortec-style intake manifold due to an improved manifold mounting flange and gasket design and raised intake ports. Modifying the heads to accept early intake manifolds is not recommended. Vortec Cylinder Heads fit all 1955-Present small blocks except LT1/LT4 reverse coolant flow engines and current LS1-style engines.

    JEGS Easy Kits are designed by JEGS professionals so you get all the parts you need.

Part TypeCylinder Head
Product LineChevrolet Performance Small Block Chevy Cast Iron Vortec Cylinder Heads
BrandCHEVROLET PERFORMANCE
Package Height7.5
Package Width9.5
Package Length23.5
Weight47.83 PG
Part CategoryPerformance Parts
Cylinder Head MaterialCast iron
Intake Port LocationStandard
Exhaust Valves IncludedYes
Locks IncludedYes
Retainers IncludedYes
Lock Style7 degree
Guideplates IncludedNo
Rocker Arms IncludedNo
Oiling StyleThrough pushrod
Rocker Arm Nuts IncludedNo
Cylinder Head FinishNatural
Valve Seats MachinedNo
Valve Seat MaterialSteel
Heat CrossoverNo
Number Of Springs Per ValveSingle
Valve Springs IncludedYes
Spark Plug StyleStraight
Damper Spring IncludedNo
Valve Guides IncludedYes
Cnc-Machined Intake RunnerNo
Intake Valves IncludedYes
QuantitySold individually
Valve Stem Seals IncludedYes
Intake Valve Diameter1.94 in (49.276 mm)
Accessory Bolt Holes DrilledYes
Exhaust Port LocationStandard
Valve Guide MaterialBronze
Outside Diameter Of Outer Spring1.25 in (31.8 mm)
Combustion Chamber Volume (Cc)64
Machined For O-RingNo
Steam Holes DrilledNo
Rocker Arm Studs IncludedYes
Cylinder Head StyleAssembled
Valve Stem Seal StyleUmbrella
Retainer MaterialSteel
Intake Runner Volume (Cc)170
Cnc-Machined Exhaust RunnerNo
Cnc-Machined Combustion ChamberNo
Exhaust Valve Diameter1.5 in (38.1 mm)
Vendor Part Number12558060
Package Qty1
Package TypeEA
