Vehicle Info NeededALLSTAR PERFORMANCEPART NUMBER: 049-ALL81230

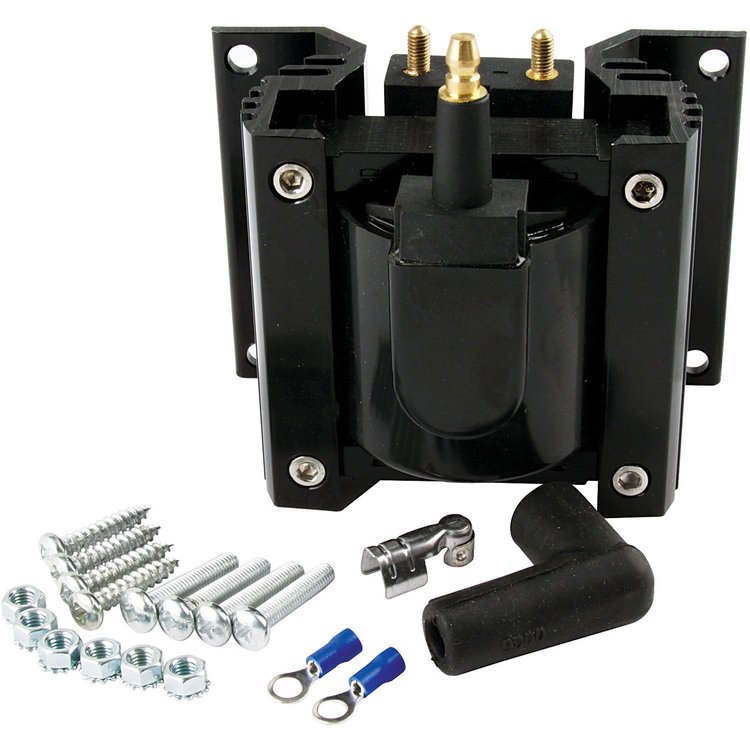

High Output CD Ignition Coil Delivers Up To 48,000 Volts
$5299
Ships on Sep 03, 2026
Lowest Price Guarantee
- High Output CD Ignition Coil
- Delivers Up To 48,000 Volts
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
- Upgrade from stock type coil, or when using capacitive discharge system. 48,000 volt coil is recommended for use with 049-ALL81220 and 049-ALL81222 distributors. Sturdy, high impact housing is epoxy filled to protect against vibration. Extruded aluminum bracket eases mounting. Mounting hardware, anti-vibration mounting pads, ring terminals and high temperature silicone boot are included.
Note: Works with Series 6 ignition systems, Not for use with Series 7 ignition systems.
Part TypeIgnition Coil
Product LineAllstar High Output CD Coil
BrandALLSTAR PERFORMANCE
Package Height4.4
Package Width6.7
Package Length6.8
Weight2.73 PG
Part CategoryPerformance Parts
Primary Resistance0.400 ohms
Coil Wire AttachmentMale/HEI
Coil StyleE-core
QuantitySold individually
Ballast Resistor IncludedNo
Maximum Voltage40,000 V
Turns Ratio65:01:00
Coil ShapeSquare
Mounting Bracket IncludedYes
Inductance7.0 mH
Coil ColorBlack
Coil Wire IncludedNo
Secondary Resistance4.8K ohms
Part FitmentUniversal
Coil Internal ConstructionEpoxy
Vendor Part NumberALL81230
Package Qty1
Package TypeEA
