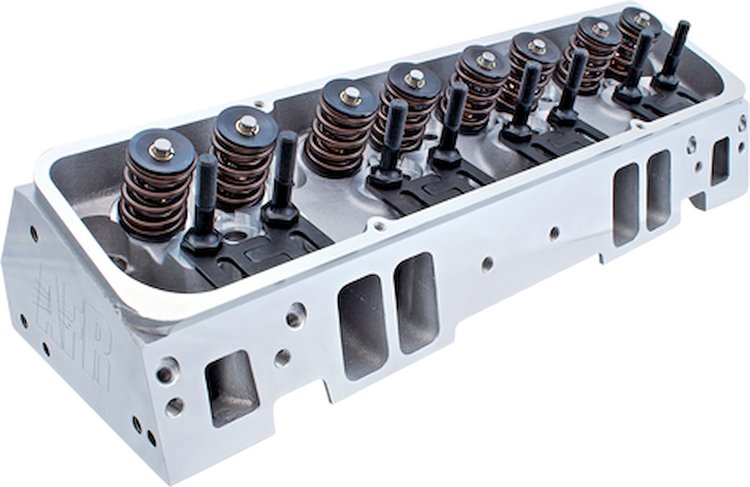

1006 Fully Assembled 195cc Enforcer Cylinder Head, Angle Plug for Small Block Chevy
InfoVehicle Info Needed
AFR - AIRFLOW RESEARCHPART NUMBER: 033-1006

1006 Fully Assembled 195cc Enforcer Cylinder Head, Angle Plug for Small Block Chevy

$64300
2 left in stock
ShippingShips Today
Lowest PriceLowest Price Guarantee

Chevy Small Block
Fully Assembled 195cc Enforcer Cylinder Head
  • 195cc Intake Port Volume
  • Angle Plug
  • 64cc Combustion Chamber
  • 23 Degree Valve Angle
  • A356 Aluminum
  • Sold Individually

    Breakdown of Included Items

    Flow Chart

    AFR 1006 Enforcer Aluminum Head Features:

    • For 350 to 400ci engines operating below 6,000 rpm
    • Intake Port Volume: 195cc
    • Intake Port Dimension: 2.080 in. H x 1.270 in. x 5/16 in. Radius
    • Intake Port Location: Stock
    • Exhaust Port Volume: 76cc
    • Exhaust Port Dimension: 1.380 in. H x 1.420 in. W
    • Exhaust Port Location: Stock
    • Valve Cover Bolt Pattern: Perimeter Bolt
    • Valve Spring Pocket Diameter: 1.580 in. O.D
    • Max Valve Spring Pocket Machining: 1.600 in. O.D
    • Deck Thickness: .450 in.
    • Minimum Bore Diameter: 4.000 in.
    • Reduce Combustion Chamber Size 1 cc by Flat-Milling .006 in. from Deck Surface, Maximum Mill .048 in. to achieve 56 cc
    • Spark Plug Dimensions: 14 mm x .750 in. with Gasket Seat Such as Autolite 417-AR3924

    Emissions Note:

    This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

    CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

    • AFR Enforcer Cylinder Heads

      AFR Enforcer Cylinder Heads are engineered to deliver improved airflow, increased horsepower potential, and dependable street performance for enthusiasts building high-performance small block and big block engine combinations. Designed by AFR Airflow Research, these cylinder heads provide an excellent balance of airflow efficiency, combustion performance, and affordability, making them a popular choice for street performance builds, restoration projects, muscle cars, and weekend racers. Whether you're upgrading a small block Chevy Camaro, building a Ford street machine, or refreshing a classic Mopar muscle car, AFR Enforcer Cylinder Heads offer the performance-focused engineering serious enthusiasts expect from AFR.

      Show More

      Cylinder heads play a critical role in determining engine airflow efficiency, combustion quality, and overall horsepower capability. AFR Enforcer Cylinder Heads are designed using advanced port and chamber technology to improve intake and exhaust flow characteristics compared to restrictive factory castings. Performance enthusiasts appreciate the ability to gain stronger throttle response, improved torque output, and enhanced top-end power while maintaining excellent street drivability and long-term reliability.

      Performance Benefits & Key Features

      AFR Enforcer Cylinder Heads are engineered to optimize airflow velocity and combustion efficiency for naturally aspirated street and mild racing applications. Their precision-designed intake runners and combustion chambers help improve cylinder filling and fuel atomization, contributing to increased horsepower and torque across a broad RPM range.

      Constructed from lightweight aluminum, these cylinder heads help reduce overall engine weight while improving heat dissipation and thermal stability compared to traditional cast iron designs. Enthusiasts benefit from improved cooling efficiency, reduced detonation risk, and enhanced engine responsiveness during aggressive driving conditions.

      These cylinder heads are commonly paired with aftermarket camshafts, intake manifolds, carburetors, EFI systems, and performance exhaust setups to maximize engine output and overall drivability. AFR Enforcer Cylinder Heads are especially popular for street performance builds, Pro Touring projects, drag racing applications, hot rods, and restoration vehicles where dependable power gains and consistent engine performance are priorities.

      Performance enthusiasts also value AFR’s reputation for CNC-inspired airflow development and precision manufacturing quality. The Enforcer series provides an accessible performance upgrade while still delivering the airflow improvements and engineering precision associated with AFR cylinder head technology.

      Fitment, Compatibility & Applications

      AFR Enforcer Cylinder Heads are compatible with a wide variety of GM, Ford, and Mopar V8 engine applications used in muscle cars, classic trucks, street rods, and custom performance vehicles. Popular applications include Camaros, Mustangs, Chevelles, Chargers, Novas, hot rods, and street/strip builds requiring improved airflow and modern cylinder head technology.

      Ideal for street performance enthusiasts, restoration builders, and weekend racers seeking dependable horsepower gains and improved engine efficiency, these cylinder heads deliver the quality and airflow performance expected from AFR Airflow Research. Explore the available AFR Enforcer Cylinder Head options to upgrade your engine with proven airflow technology and enhanced street performance.

    Part TypeCylinder Head
    Product LineAFR Enforcer Cylinder Heads
    BrandAFR - AIRFLOW RESEARCH
    Package Height7.6
    Package Width9.7
    Package Length22.0
    Weight28.47 PG
    Part CategoryPerformance Parts
    Cylinder Head MaterialAluminum
    Intake Port LocationStandard
    Exhaust Valves IncludedYes
    Locks IncludedYes
    Retainers IncludedYes
    Lock Style7 degree
    Guideplates IncludedYes
    Rocker Arms IncludedNo
    Oiling StyleThrough pushrod
    Cylinder Head FinishNatural
    Valve Seats MachinedYes
    Intake Valve Angle23
    Valve Springs IncludedYes
    Spark Plug StyleAngled
    Valve Seat Machine Style3-angle
    Valve Guides IncludedYes
    Cnc-Machined Intake RunnerNo
    Intake Valves IncludedYes
    Combustion Chamber StyleHeart
    QuantitySold individually
    Valve Stem Seals IncludedYes
    Accessory Bolt Holes DrilledYes
    Exhaust Port LocationStandard
    Combustion Chamber Volume (Cc)64
    Exhaust Valve Angle23
    Steam Holes DrilledNo
    Rocker Arm Studs IncludedYes
    Cylinder Head StyleAssembled
    Part FitmentSemi Universal
    Valve Cover Mounting StylePerimeter
    Valve Stem Seal StylePositive stop
    Retainer MaterialChromoly steel
    Intake Runner Volume (Cc)195
    Cnc-Machined Exhaust RunnerNo
    Cnc-Machined Combustion ChamberNo
    Vendor Part Number1006
    Package Qty1
    Package TypeEA
