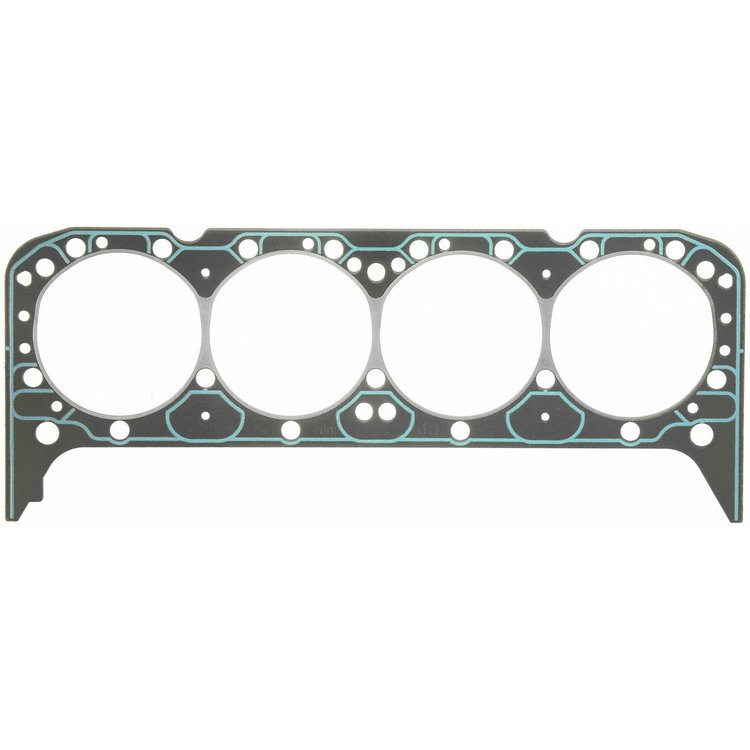

Steel Wire Ring Head Gasket Small Block Chevy

Name: Steel Wire Ring Head Gasket Small Block Chevy
Brand: FEL-PRO
SKU: 375-1003
Price: 49.99 USD
Availability: InStock

^$49⁹⁹

More than 10 available

Ships Today

Lowest Price Guarantee

Best Value

Save
^$25²⁰

555-210040

High-Temp Cylinder Head Gasket for Small Block Chevy (Except LT & LS Engines)

^$24⁷⁹

Small Block Chevy

Steel Wire Ring Head Gasket

Small Block Chevy

Bore 4.166''

Compressed Thickness .041''

Compressed Volume 9.1cc

Fel-Pro 375-1003 Features:

Fel-Pro Performance Gaskets deliver reliable sealing under grueling racing conditions

Fel-Pro Performance head gaskets accommodate the high cylinder pressures and cylinder head movement associated with performance engines.
Inserted within a stainless steel armor surrounding each cylinder, wire ring design provides highly concentrated sealing around the combustion chamber.
Raises combustion sealing force to roughly three times that of standard head gaskets.
Steel wire rings for the greatest combustion seal strength.
Not intended for use in emission controlled vehicles.

Fel-Pro wire ring head gaskets are offered in various bore sizes, thicknesses, and materials to meet any need. Fel-Pro head gaskets are designed to be relied on by the professional racer as well as the Sunday cruiser when it comes to sealing combustion pressure, coolant, and oil under all conditions.

Pre-Flattened Steel Wire Ring Head Gaskets
The strength of steel wire sealing with minimum brinelling of aluminum heads.

Pre-Flattened Copper Wire Ring Head Gaskets
Copper will not brinell aluminum heads, and these Fel-Pro gaskets also offer superior heat dissipation from combustion hot spots.

Loc Wire Ring Head Gaskets
Fel-Pro Loc Wire gaskets are engineered to provide the best sealing available for severe applications. They have oversized wire rings that lock into receiver grooves which must be machined into the cylinder heads. Precise machining is critical to the success of these gaskets.

Note: Each Fel-Pro gasket type is sold 1 per package

Part TypeHead Gasket

Product LineFel-Pro Wire Ring Cylinder Head Gaskets

BrandFEL-PRO

Package Height0.3

Package Width9.0

Package Length26.0

Weight0.5 PG

Part CategoryReplacement Parts

Lock WireNo

QuantitySold individually

Gasket MaterialSteel core laminate
