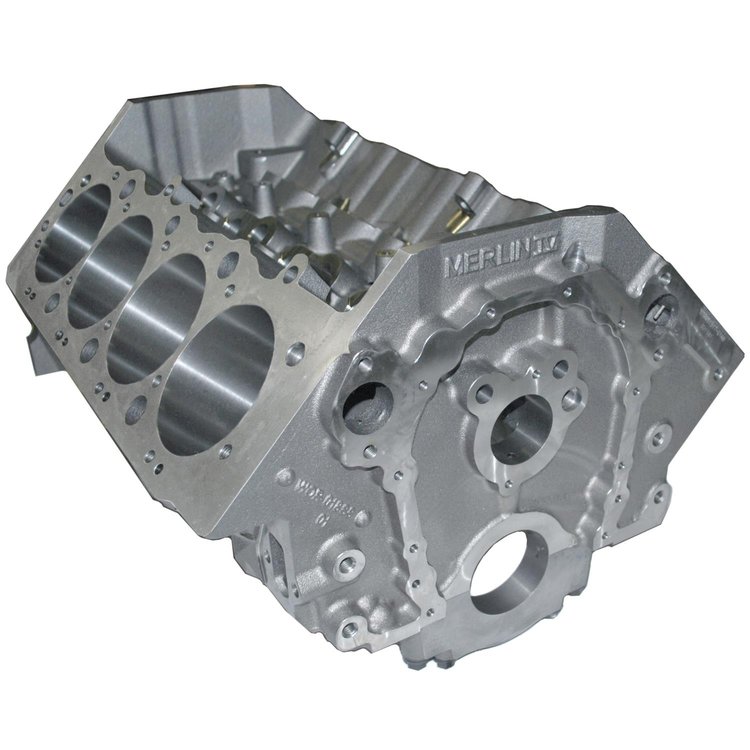

Merlin IV Big Block Chevy Cast Iron Engine Bare Block

Name: Merlin IV Big Block Chevy Cast Iron Engine Bare Block
Brand: WORLD PRODUCTS
SKU: 955-091102
Price: 3842.02 USD
Availability: InStock

^$3,842⁰²

Truck Freight

1 left in stock

Ships Today

Lowest Price Guarantee

4.595 in. Cylinder Bore

Merlin IV Cast Iron Engine Block

Big Block Chevy

2-Piece Rear Main Seal

4.595" Bore

9.800" Deck Height

Standard BBC Camshaft Bearing Journal

Standard BBC Lifter Bore

Nodular Iron Main Caps

Features:

High-Density Cast Iron Construction
Priority Main Oiling
Front Oil Inlet and Restrictor Provision
Bores to 4.625 in. max
Cylinder Walls 0.310 in. @ 4.600 in. Bore
Valley Accommodates OE Roller Lifters or Use +.300 in. Tall Aftermarket Lifters
Clearance for 4.375 in. Stroke - 9.800 in. Deck
Splayed 4-Bolt Main Caps with Dowels & Stepped Register, ARP Fasteners
2-Piece Rear Main Seal
Accepts Standard Big Block Chevy Components
OE-style Fuel Pump & Starter Mounts
Approximately 270 lbs
Rated to 1000+ Horsepower

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

Modern Advancements for a Superior Big Block Chevy

World Products has redesigned the famed Merlin Big Block Chevy casting, incorporating numerous improvements and new features, designated the Merlin IV. New features include thicker main webs and thicker cylinder walls for increased strength and durability. The Merlin IV also has an increased volume priority main oiling system with a front oil feed for dry sump systems and front oil cross over with restrictor provisions to provide racing engines with oil where they need it the most.

Part TypeEngine Block

Product LineWorld Products Big Block Chevy Merlin IV Cast Iron Engine Blocks

BrandWORLD PRODUCTS

Package Height16.0

Package Width22.5

Package Length25.0

Weight250.0 PG

Part CategoryPerformance Parts

Maximum Bore Diameter4.625 in (117.475 mm)

Engine Block Weight (Lbs.)260

Part FitmentSemi Universal

Deck Height9.8 in (248.92 mm)
