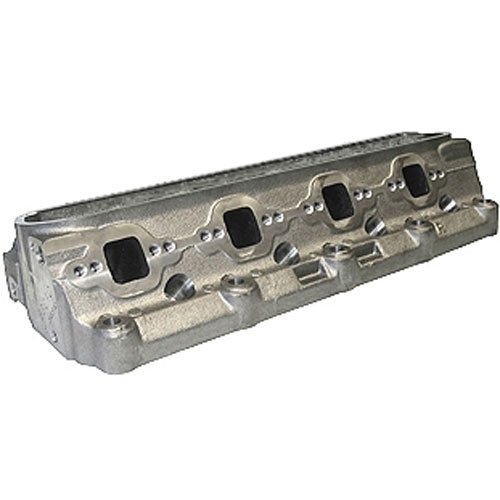

Ford 5.0L Windsor Sr. 200 Cast Iron Cylinder Head
• 200cc Intake Ports
• 64cc Combustion Chambers
• Cut for 2.020'' Int/1.600'' Exh Valves
• Bare Head, Sold Individually


  TECHNICAL SPECIFICATIONS

  Material: High density cast iron
  Valve Seats: Integral intake,hardened steel exhaust
  Valve Guides: Integral cast iron
  Valve Spring Seats: Machined for 1.250' springs
  Valve Size: 2.020' x 1.600' (11/32')
  Rocker Arm Studs: Accepts screw-in studs
  Exhaust Flange: Stock port locations, Dual bolt pattern accommodates large custom headers

  Recommended Installation Items:
  Rocker Arms: Aftermarket roller rocker arms recommended. However, if stock rockers are to be retained, use stud mounted rockers
  Head Gaskets: Fel-Pro #9333PT or #1011-2 or equivalent. CAUTION: #1011-1 is NOT recommended.
  Puhshrods: Requires heat-treated pushrods
  Spark Plugs: Accepts 14mm .460' reach tapered seat 5/8' hex (Champion #670 or #802) or equivalent
  Intake Gasket: Fel-Pro #90361 or equivalent
  Exhaust Gasket: Fel-Pro #1415 or equivalent

  Note: Aftermarket 286/302 heads including Brodix, Edelbrock, Ford Motorsport and World Products with 1/2' bolt hole diameters (block is 7/16' bolt hole), except 397-M-6049-P303 ('P' style head). Require 350-9680 inserts with 350-8552 head bolt or 350-9680 insert with 070-154-3601. If head studs are desired use 070-154-4005 (includes inserts).

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
