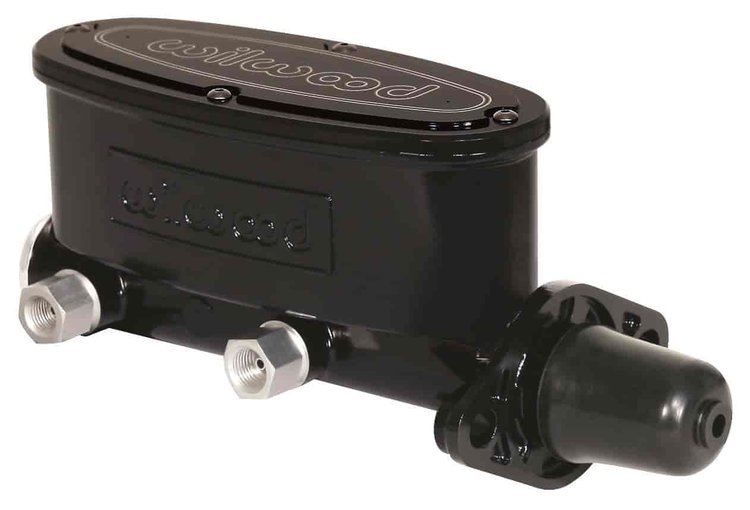

Aluminum Tandem Master Cylinder, 1.00 in. Bore, Black E-Coat

Name: Aluminum Tandem Master Cylinder, 1.00 in. Bore, Black E-Coat
Brand: WILWOOD
SKU: 950-260-8555-BK
Price: 304.85 USD
Availability: InStock

^$304⁸⁵

2 left in stock

Ships Today

Lowest Price Guarantee

1" Bore Master Cylinders

Tandem Master Cylinder

Master Cylinder Bore Diameter: 1.00 in.

Master Cylinder Port Quantity: 2

Reservoir Type: Integral

Mount Hole Center To Center: 3.20-3.40 in.

Weight: 3.000 lb.

Manual or power-assisted applications both work with this 1.00 in. bore tandem aluminum master cylinder, mounting to the common 3.22-3.40 in. flange pattern used on most domestic cars and trucks since the mid-1960s.

Tandem Aluminum Master Cylinder Features:

Dual fluid outlet ports on both sides of the bore.
1.10 in. stroke with a 2:1 volume ratio between the primary and secondary chambers.
High-pressure die-cast body weighs only 3 lb., 75% lighter than most cast iron OE master cylinders.
No pushrod included, for manual applications without a boost pushrod installed.
Pairs with Wilwood's 260-13190 combination proportioning valve kit for a complete brackets-and-lines setup.

Part TypeMaster Cylinder

BrandWILWOOD

Package Height5.2

Package Width5.4

Package Length10.3

Weight3.2 PG

Part CategoryBrakes & Drivetrain

Master Cylinder Stroke1.1 in (27.94 mm)

Hardware IncludedNo

Remote ReservoirNo

Mounting Flange Center To Center Distance (In.)3.220-3.400

Master Cylinder FinishBlack anodized
