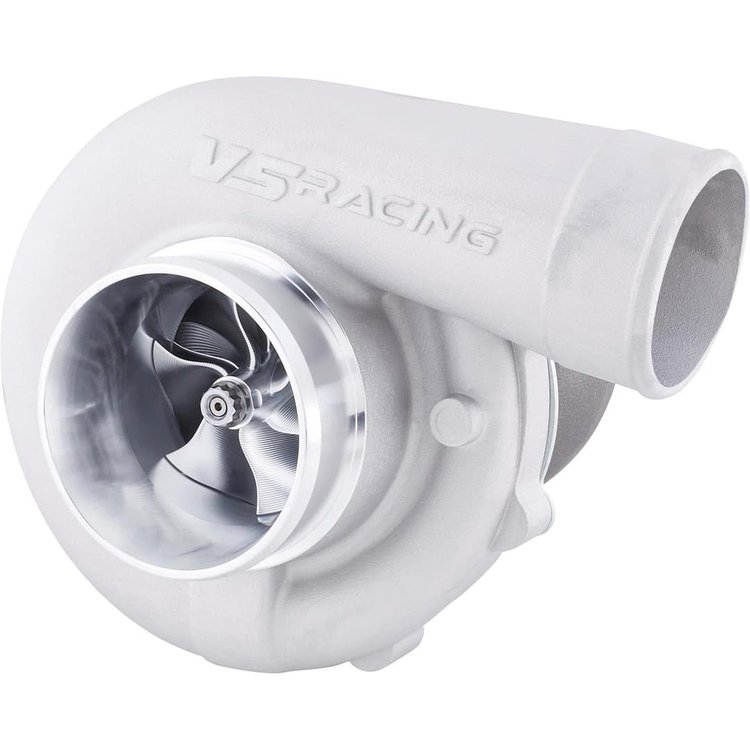

![VSR7875NXT96O Next Gen 7875 Billet T-Series Turbocharger, T4 Inlet Flange, 0.96 A/R Ratio [External Wastegate]](https://www.jegs.com/images/mini_750/600/661/661-j000003.jpg)
Vehicle Info NeededVS RACINGPART NUMBER: 661-J000003

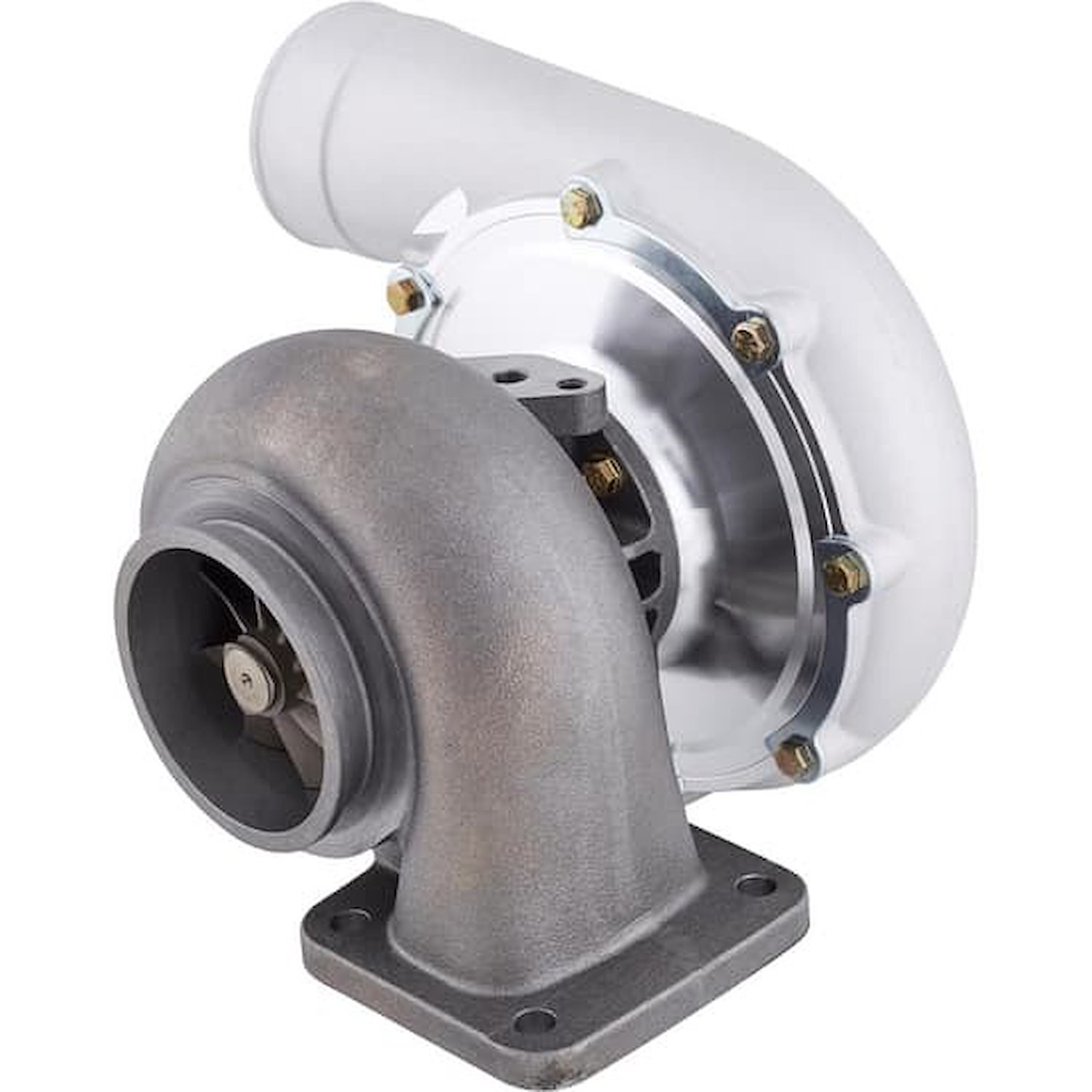

VSR7875NXT96O Next Gen 7875 Billet T-Series Turbocharger, T4 Inlet Flange, 0.96 A/R Ratio [External Wastegate]
$74900
Ships on Sep 16, 2026
Lowest Price GuaranteeT-Series
Next Gen 7875 Billet T-Series TurbochargerInlet Flange: T4 Outlet Flange: 3 in. V-Band A/R Ratio: 0.96 Compressor Wheel Inducer: 78 mm Turbine Wheel Exducer: 75 mm Oil Cooled External Wastegate Natural Finish
VS Racing VSR7875NXT96O Features:
- Works well for single turbo GM LS swap builds or most any V8 engine combination
- Rated to 1,150 flywheel HP
- Bearing Style: Journal Bearing
- Volute Type: Open
- Compressor Outlet Style: Slip Fit
- Ported Compressor Housing: Yes
- Wastegate Actuator Included: No
- Exhaust Adapter Included: No
- Intake Adapter Included: No
- Oil Adapters Included: No
- Compressor Housing Material: Aluminum
- Turbine Housing Material: Cast Iron
- Sold Individually
VS Racing VSR7875NXT96O Notes:
- 3.0 in. Compressor Outlet
Part TypeTurbocharger
BrandVS RACING
Package Height12.6
Package Width14.2
Package Length16.4
Weight23.925 PG
Part CategoryPerformance Parts
Wastegate Actuator IncludedNo
Compressor Outlet StyleSlip Fit
Ported Compressor HousingYes
Compressor Housing MaterialAluminum
Oil Adapters IncludedNo
Bearing TypeJournal Bearing
QuantitySold Individually
Center Housing Cooling TypeOil
Part FitmentUniversal
Volute TypeOpen
Turbine Housing MaterialCast Iron
Maximum Horsepower1,150
Vendor Part NumberVSR7875NXT96O
Package Qty1
Package TypeEA
