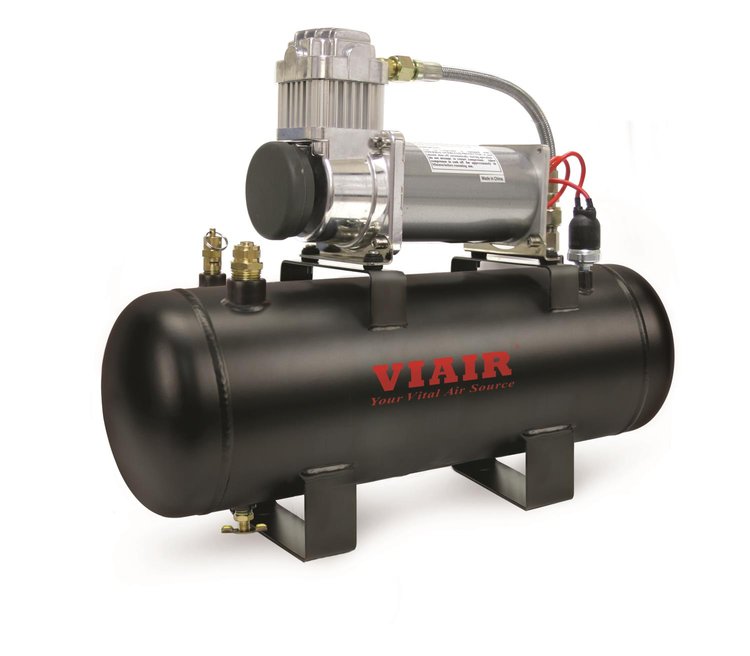

Vehicle Info Needed200 PSI Fast-Fill Air Source Kit 380C Pewter Air Compressor
Ships Tomorrow
Lowest Price Guarantee- 200 PSI Fast-Fill Air Source Kit
- 380C Pewter Air Compressor
- 2.0 Gallon Air Tank
- Pressure Switch (165 PSI On / 200 PSI Off)
- Safety Valve (250 PSI)
- Tank Drain Valve
- Leader Hose with Check Valve
2.0 Gallon Tank, 200 PSI / 1.34 CFM
Air Source Kits provide an all-in-one air source solution in one of four different part numbers, meant specifically for air horns and other moderate pneumatic needs. Air Source kits are equipped with a 150 PSI or 200 PSI-rated compressor mounted atop the air tank and are equipped with a drain valve, properly rated safety valve, appropriately rated pressure switch, and a 1/2-inch NPT outlet port with compression fitting that is 3/8-inch air line-ready, all factory installed.
Show More
The Fast-Fill 200 PSI Air Source Kits come with a powerful, low amp-draw 380C VIAIR compressor mounted on a 200 PSI-rated 2.0 gallon air tank with 5 ports. All 200 PSI Air Source kits come with a pre-wired 165/200 PSI pressure switch. Both kits not only come with the industry's leading 200 PSI compressors but also come with a drain cock, safety valve, 1/2-inch port compression fitting for 3/8-inch air line pre-installed! To use, simply connect the pressure switch to fused power, make a solid ground and connect an air line to the compression fitting. A 40-amp relay and an appropriately-rated fuse is recommended for use with this unit.
Features:
- 12-Volt
- Permanent Magnetic Motor
- Duty Cycle: 100% @ 100 PSI (55% @ 200 PSI)
- Max. Working Pressure: 200 PSI
- Max. Amp Draw: 21 Amps
- Ingress Protection Rating: IP67
- Dimensions: 19"L x 5.9"W x 14.2"H
- Net Weight: 21.05 lbs.
