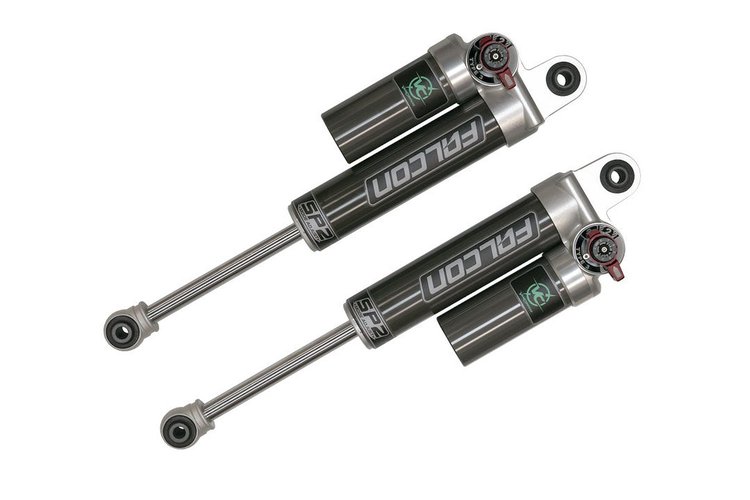

Van Compass 3054 Features:

Tuned shock absorbers are one of the best bang for the buck upgrades for any vehicle. Proper damping can make or break the ride comfort and vehicle control, and low-quality factory units are quickly overwhelmed. Falcon's shocks represent a pinnacle of intelligent design. Built to our specifications and tune, we've applied everything we've learned over the years of tuning custom and modified vehicles to bring increased levels of comfort, compliance, and control to adventure vans and RV's. With a superior damper, we're able to effectively reduce sway from wind and obstacles, while simultaneously controlling large and small bumps more effectively.

The red 3.3 fast adjust knob combines industry leading adjustment range with intuitive and easy compression adjustment while the shock is installed. Position 1 is the lightest setting, great for blasting down washboard roads or rough city streets. Position 2 is a mid-setting with 8 micro adjustments, a great way to dial in the ride and handling setting for daily driver preference. Position 3 is the firmest setting, used for occasional heavy loads or when driving conditions require the most control. The SP2 mode adjust feature is an internal bypass port (free bleed circuit) set during installation. Closing off this port drastically changes the shock rebound and compression characteristics and essentially allows us to put 2 tune profiles into one shock. This setting is chosen when installing the shocks based on vehicle weight and ride preference. The shocks are manufactured as left and right pairs. The 3.3 fast adjust knob is placed in a spot that is easy to see and adjust.

• 10 compression damping settings with the 3.3 fast adjust knob
• 100% bolt on with basic tools
• Internal SP2 free bleed adjustment allows for 2 distinct tune profiles
• Reduced sway and wind buffeting
• Light/Mid shock tune for vans weighing under 8500 lbs
• Enhanced cornering stability
• Increase in comfort and vehicle control
• Controls large and small bumps more effectively than factory shocks
• 2.3" aluminum body dissipates heat and resists corrosion.
• 3/4" diameter hard chromed shaft resists impact and corrosion.
• Full 2" Damper piston (238% increase over stock)
• High pressure nitrogen charge ensures cavitation free operation
• Adjustable: Yes
• Adjustable Compression: Yes
• Adjustable Rebound: No
• Boot Included: No
• Bore Diameter: 2 in.
• Gas Charged: Yes
• Grade Type: Performance
• Internal Construction Type: Monotube
• Lower Mount Type: Eyelet
• Mounting Hardware Included: No
• Recommended Shop Labor Time: 1 hr
• Reservoir Style: Piggyback
• Shaft Diameter: .75 in.
• Shaft Material: Chrome
• Shock Absorber Body End Measuring Point: Center of Eyelet
• Shock Absorber Rod End Measuring Point: Center of Eyelet
• Shock Tune: Light/Mid
• Tube Outside Diameter: 2.3 in.
• Upper Mount Type: Eyelet
