Vehicle Info NeededUNITED ENGINE MACHINEPART NUMBER: 648-IC719.040

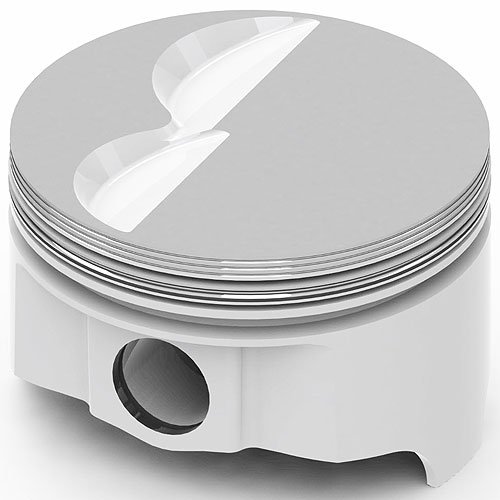

Ford 289/302/393ci Forged Pistons Flat Top 2V
$74890
Ships on Sep 04, 2026
Lowest Price GuaranteeFord 289 / 302 / 393ciFlat Top Pistons
- Ford 289/302/393ci Forged Pistons
- Flat Top 2V
- 4.040'' Bore (+.040'')
- 289ci use w/5.155'' Connecting Rod & 2.870'' Stroke
- 302ci use w/5.090'' Connecting Rod & 3.000'' Stroke
- 393ci use w/5.956'' Connecting Rod & 3.850'' Stroke
- 8/pkg
This piston is based and intended for use on the Windsor-based Small Block Ford. 351W note, pre-1971 deck heights are .020' shorter. Insufficient stock for clean-up.
Technical Specs: - Alloy: Premium High Ductility 2618
- Bore: 4.040'
- Crankshaft Stroke: 2.870'(289ci); 3.000'(302ci); 3.850'(393ci)
- Connecting Rod Length: 5.155'(289ci); 5.090'(302ci); 5.956'(393ci)
- Deck Height: 8.206'(289/302ci); 9.500'(393ci - 351W Block)
- Compression Height: 1.608' (all)
- Pin Size: 0.912' x 2.750'
- Pin Location: Centered
- Flat Top: -4.8cc 2 Valve Reliefs
- Intake Valve Relief: .266' Depth / 2.120' Diameter
- Exhaust Valve Relief: .254' Depth / 1.880' Diameter
- Top Landing Height: 0.229'
- Ring Grooves: 1/16' Top; 1/16' Middle; 3/16' Bottom
- Gram Weight: 484/131
- Compression Ratio (289ci): 9.9:1 w/54cc Heads; 9.4:1 w/58cc Heads; 8.8:1 w/64cc
- Compression Ratio (302ci): 10.3:1 w/54cc Heads; 9.8:1 w/58cc Heads; 9.1:1 w/64cc
- Compression Ratio (393ci): 12.9:1 w/54cc Heads; 12.3:1 w/58cc Heads; 11.4:1 w/64cc
Part TypePiston
BrandUNITED ENGINE MACHINE
Part CategoryPerformance Parts
Vendor Part NumberIC719.040
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
