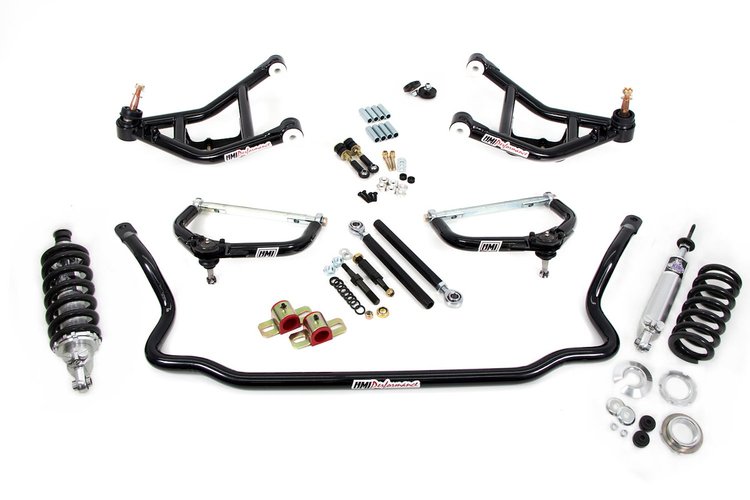

266501-B Corner Max Front End Kit for 1970-1981 Chevy Camaro, Pontiac Firebird [Black]

Name: 266501-B Corner Max Front End Kit for 1970-1981 Chevy Camaro, Pontiac Firebird [Black]
Brand: UMI PERFORMANCE
SKU: 236-266501-B
Price: 2998.99 USD
Availability: InStock

^$2,998⁹⁹

Ships on Sep 07, 2026

Lowest Price Guarantee

1970-1981 GM F-Body

Corner Max Front End Kit
1970-1981 Chevy Camaro, Pontiac Firebird
Geometry Corrected A-Arms
Tall Lower Ball Joints
Rebound Adjustable Coilover Shocks
1 5/16 in. Heavy-Duty Sway-Bar
Bump-Steer Kit
1 to 2 1/2 in. Lower Height
Black

UMI Performance 266501-B Corner Max Front End Kit:

Exceptional handling at 1 to 2-1/2 in. lowering

Uses factory GM spindle and lowering spindles that equal factory height

Up to 10 degrees static caster without moving the spindle pin

Up to 1.2 degrees per inch of camber gain

3/4 in. taller lower ball joints

standard upper ball joints

Easily change shocks and springs at the track using UMI’s unique quick change system

850 lb/in. race-proven spring rates for exceptional handling

UMI rebound adjustable monotube shock with road race valving, 40 clicks of adjustment

1 5/16 in. solid sway bar with swivel end links to balance kit properly
UMI Performance 266501-B Corner Max Front End Kit Notes:

This kit requires trimming of the spring pocket fingers to fit

If it is used on a 1970-71 car the center link and inner tie rods must be used from a 1972-81 car for the correct bump steer fitment

UMI Performance Corner Max Suspension Kits are a full front suspension package comprised of geometry corrected a-arms with tall ball joints, higher spring rates, UMI Performance rebound adjustable monotube shocks, heavy-duty sway bar, and a bump steer kit. The UMI Performance Corner Max utilizes the stock suspension mounting points, making this a complete bolt-on system. Each kit has been designed to work together for the best possible performance. UMI Performance Corner Max Suspension Kits improve the camber curve, allow for increased caster, correct bump steer, and reduce body roll all while maintaining the factory wheelbase!
Show More
Features:
Full Front Suspension Package
Heavy Duty DOM Tubing
Quick Change Lower Shock Mounts
Increased Camber and Caster
Corrects Bump Steer
Competition Sway Bars

Part TypeSuspension Kit
Product LineUMI Performance Corner Max Suspension Kits
BrandUMI PERFORMANCE
Package Width93.0
Weight93.0 PG
Part CategoryPerformance Parts
Front Shock TypeSingle-Adjustable
Part FitmentDirect Fit
Control Arm ColorBlack
Control Arm MaterialSteel
Vendor Part Number266501-B
Package Qty1
Package TypeEA

No Questions

No Reviews
