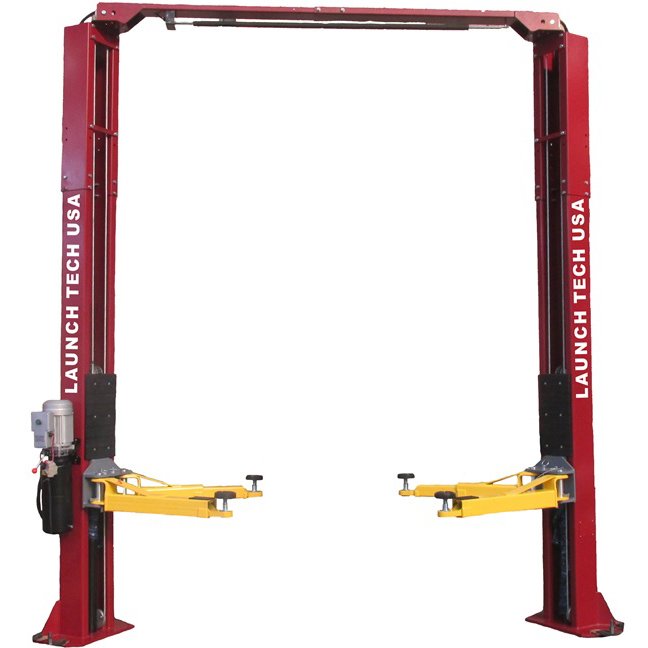

Features:

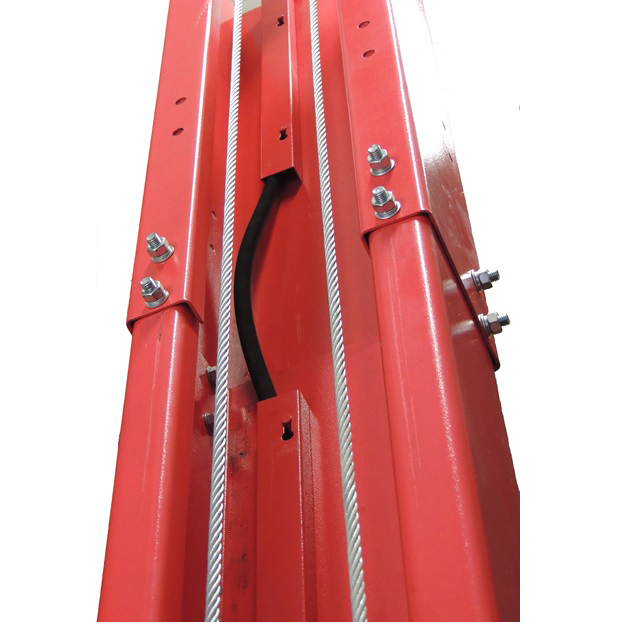

• Adjustable column width provides an additional 6 in. width adjustment, suitable for custom fitting narrow service bays
• Columns can be offset to allow Rotated Asymmetric and when facing each other Standard Asymmetric
• Power unit with an overhead safety shut-off mechanism
• Chain drive hydraulic cylinders
• Dual point lock release allows unlocking columns independently
• Durable powder-coated finish
• Dual telescoping screw pads allow 2.500 in. of adjustment
• Stackable footpad extensions
• Includes (4) 3.500 in extensions
• Rubber door guards for protecting vehicle doors
• Hose guards protect hydraulic hoses
• 3-stage front arms for adjustability
• Heavy-duty arm restraints using oversized steel gears, pins, and springs for reliable operation

Specs:

• Lifting Capacity: 9,000 lbs.
• Required Ceiling Height: 144 in.
• Overall Height: 151 in.
• Maximum Lifting Height: 73 in.
• Minimum Pad Height: 4 in.
• Overall Width: 141 in.
• Width Between Columns: 108 in.
• Drive-Thru Clearance: Symmetric 98 in./Asymmetric 95 in.
• Lifting Speed: 50 seconds
• Front Arm Reach Minimum: 23.600 in.
• Front Arm Reach Maximum: 43.500 in.
• Rear Arm Reach Minimum: 34 in.
• Rear Arm Reach Maximum: 54 in.
• Narrow Bay Setting: Deduct 5.900 in.
• Maximum Load Per Arm: 2,250 lbs.
• Cable Diameter: 3/8 in.
• Column Size: 11.340 in. x 7.500 in.
• Column Steel Thickness: 6 mm
• Carriage Steel Thickness: 6 mm
• Arm Steel Thickness: 6 mm, 8 mm
• Power: 208-230 V, 60hz, Single Phase
• Weight as Shipped: 1,600 lbs.
