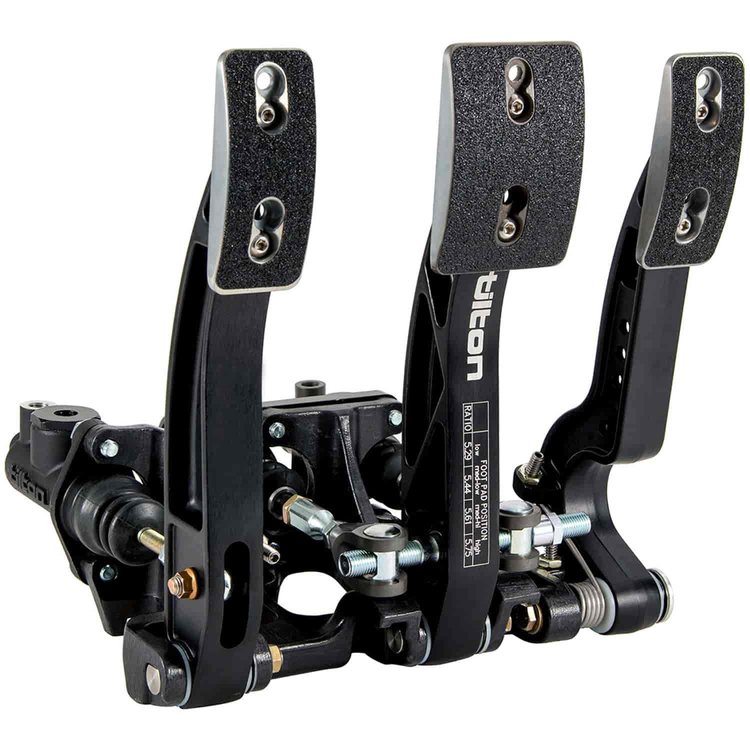

800-Series 3-Pedal Assembly Floor Mount

Name: 800-Series 3-Pedal Assembly Floor Mount
Brand: TILTON
SKU: 454-72-803
Price: 722.50 USD
Availability: InStock

^$722⁵⁰

2 left in stock

Ships Today

Lowest Price Guarantee

Floor Mount

Floor Mount

Tilton's 800-Series 3-pedal floor mount pedal assembly merges the performance of 900-Series pedal assembly technology and the renowned value of 600-Series pedal assemblies. Features high-efficiency spherical bearing type balance bar and pivot-mount master cylinder design.
Features:
High-efficiency balance bar and pivot-mount master cylinder design
Forged aluminum pedals with adjustable (vertical & horizontal) foot pads and anti-slip surfaces.
Adjustable pedal ratios (5.29:1, 5.44:1, 5.61:1, 5.75:1) enable the brake pedal to be tuned to driver preference without having to change master cylinder bore size.
Large diameter 7/16"-20 balance bar provides maximum rigidity. PTFE-coated aluminum clevises for increased durability and reduced friction.
Pedal pivots feature wave washers to reduce lateral pedal movement and oil impregnated bronze bushings decrease stiction.
Lightweight aluminum frame features guide "ramps" to reduce balance bar tipping, decreasing friction and improving brake repeatability.
Adjustable clutch pedal stop prevents clutch over-stroking.
Note: Master cylinders are sold separately
