Vehicle Info NeededTAYLORPART NUMBER: 895-48101

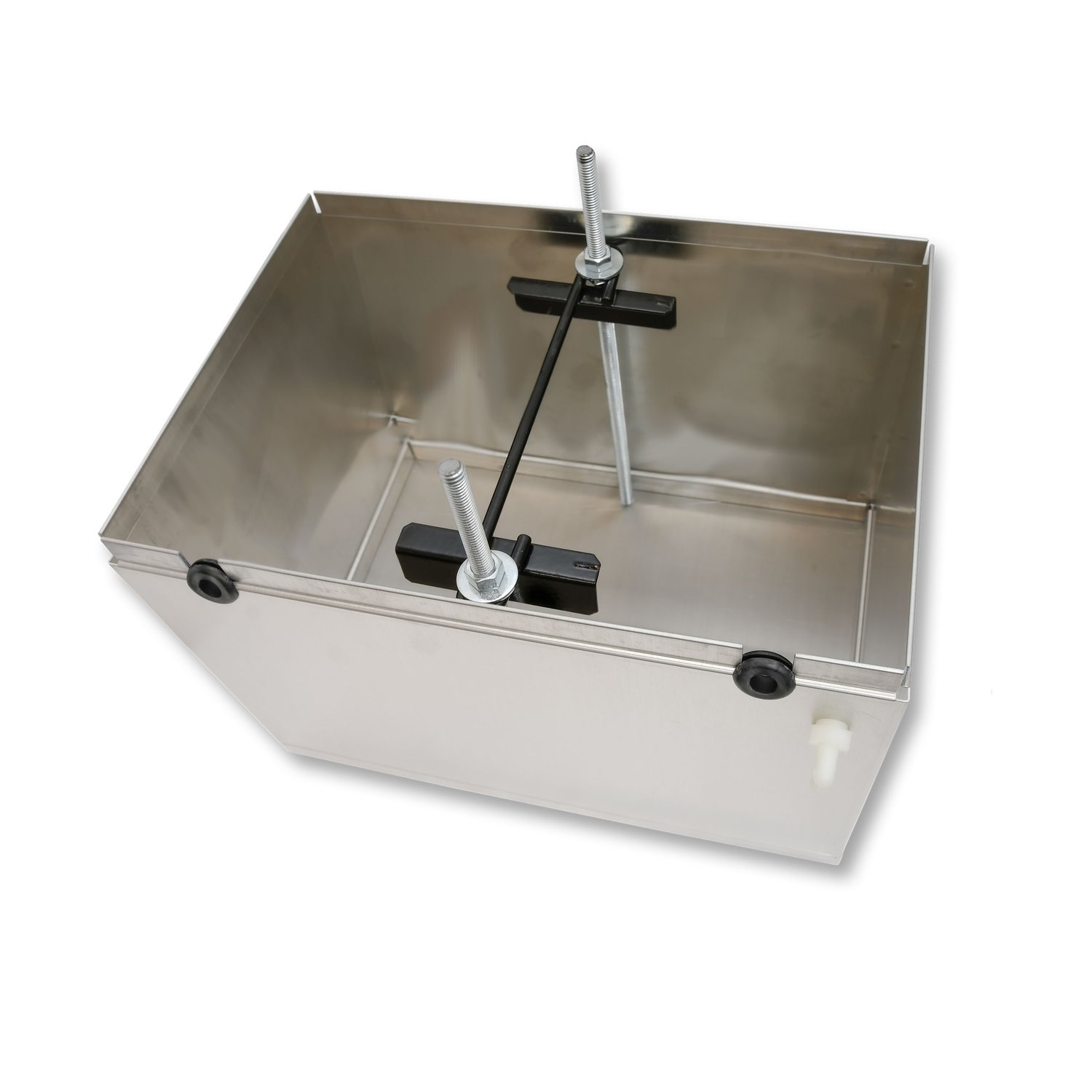

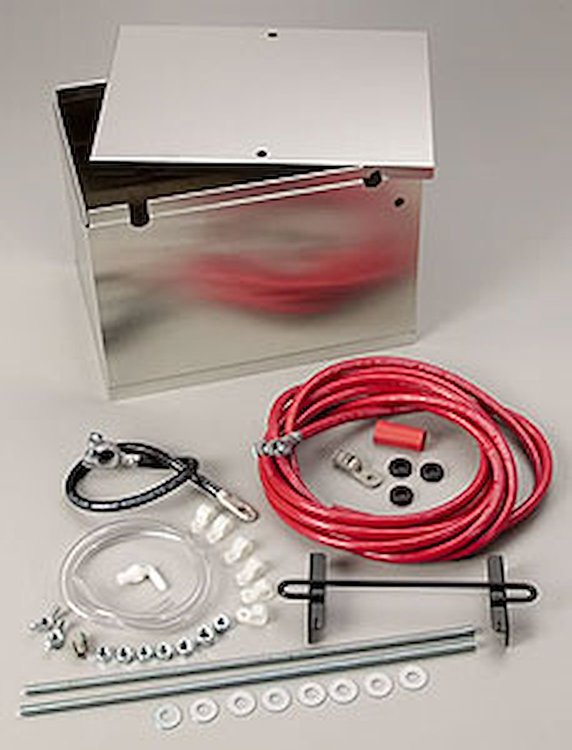

Aluminum Battery Box w/Cables 13.5" L x 9.5" W x 10" H
$35795
2 left in stock
Ships Today
Lowest Price Guarantee
100 Series
- Aluminum Battery Box w/Cables
- 13.5" L x 9.5" W x 10" H
- Heavy Duty 1-PC Battery Hold Down
- Mounting Hardware Included
- Ground Cable/16' Red Cable (2 Gauge)
100 Series - Complies with NHRA Rule 8:1.
- Required by NHRA when there is no firewall between driver's compartmentand battery.
- Fits most battery sizes.
- Embossed Taylor logo in lid.
- 3 piece 040" aluminum box design allows access without removing battery from box.
- Hard mounts battery to the frame with supplied 3/8" bolts.
- Heavy duty one-piece welded battery hold downand mounting hardware included.
- Dimensions: 13.5" long x 9.5" wide x 10" high.
Quality Battery Containers
Taylor Aluminum Battery Boxes are ideal for street rods, customs, and race applications where space is limited. These quality battery boxes are made from .0400 in. aluminum and the top lids have an embossed Taylor logo. Taylor offers three box types to compensate for the size and brand of battery application. All boxes include battery hold-downs and mounting hardware to complete your installation.
Show More
100 Series Battery Boxes
- Dimensions: 13.500 in. L x 9.500 in. W x 10 in.H
- Meets NHRA Rule 8:1
- NHRA requires use without a firewall between driver's compartment and battery
- Fits most sizes of battery
- 3-piece box design allows access without taking the battery out of the box
- Includes 3/8 in. bolts to mount the battery to the frame
- Includes a heavy-duty 1-piece welded battery hold-down and mounting hardware
200 Series Battery Boxes
- Dimensions: 11.250 in. L x 9.500 in. W x 8.750 in. H
- Meets NHRA Rule 8:1
- Fits Odyssey PC1500 Series, Optima Redtop and Yellowtop, and most Group 34/78 and 75/25 batteries
- Includes chrome acorn nuts for mounting the lid
- 3-piece box design allows access without taking the battery out of the box
- Includes 3/8 in. bolts to mount the battery to the frame
- Includes a heavy-duty 1-piece welded battery hold-down and spacers
300 Series Battery Boxes
- Dimensions: 9.500 in. L x 8.250 in. W x 7.750 in. H
- NHRA Rule 8:1 not applicable
- Fits Odyssey PC925 and PC1200 Series batteries
- Includes chrome acorn nuts for mounting the lid
- 3-piece box design allows access without taking the battery out of the box
- Includes 5/16 in. bolts to frame-mount the battery and 2-piece molded adjustable battery hold-down
Part TypeBattery Box
Product LineTaylor Aluminum Battery Boxes
BrandTAYLOR
Package Height10 in (254 mm)
Package Width9.5 in (241.3 mm)
Package Length14.2
Weight10.2 PG
Part CategoryPerformance Parts
Box MaterialAluminum
SealedYes
QuantitySold as a kit
Overall Length13.5 in (342.9 mm)
Hold-Down IncludedYes
Battery Tray IncludedNo
Relocation Kit StyleBox
Battery QuantityOne
Cable Gauge2-gauge
Battery Cable TypePositive or negative
Box FinishBrushed
Cable Length192 in (4876.8 mm)
Battery Box IncludedYes
Part FitmentUniversal
Vendor Part Number48101
Package Qty1
Package TypeEA
