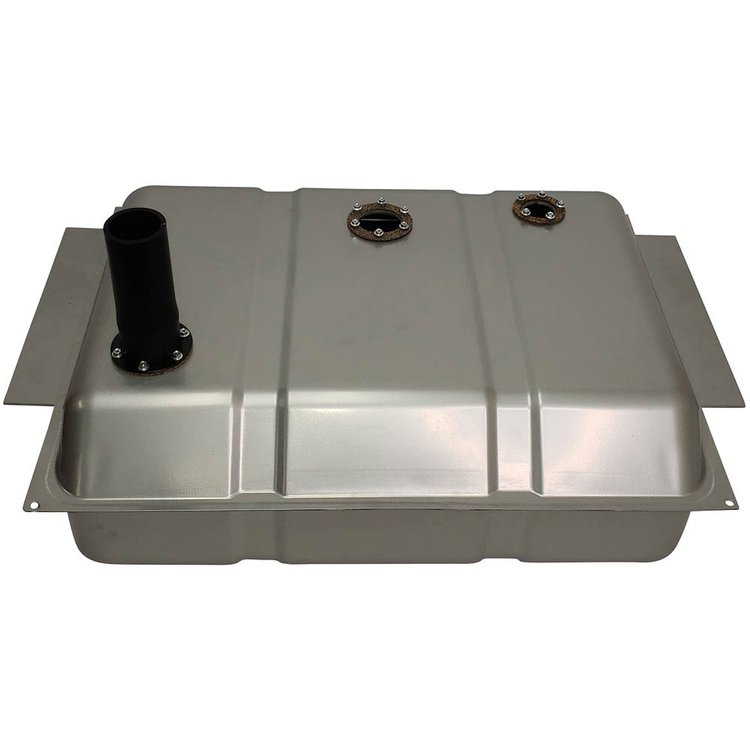

Tanks Inc. TM6372-HT Features:

This tank mounts under the truck bed using the flanges to bolt in place.  The tank is designed to bolt up to the bottom side of the frame rails but it can be mounted in different configurations including on top or even in-between the rails in some cases.  It is up to the installer to drill and locate the mounting holes.  Mounting hardware not included.

• 1963-72 Chevy and GMC Trucks Under Bed Frame Mount Gas Tank
• Bed Fill Filler Neck with 2 in. ID Connection Hose
• Die Die-stamped galvanized Steel then Powder Coated Silver
• Fuel Injection Ready!
• Utilizes Tanks Inc. GPA series fuel pumps, available in sizes from 109 to 450 liters per hour.
• Uses aftermarket 5-bolt senders. Multiple Ohm ranges available to work with factory or aftermarket gauges. (Factory ohm range was 0-30 for 1963-66 and 0-90 ohms for 1967-72). If using a tube sender or reed sender, length is 9 in..
• EFI style internal baffling with extra large 4.8 liter dual tube baffled fuel tray to prevent fuel pump starvation.
• If using on a carbureted application, use part# PTA-G
• 18 Gallon Capacity
• Size is 32-1/4 in. x 20-1/2 in. x 9-3/4 in. (including the mounting flange)
• Size is 28 in. x 20-1/2 in. x 9-3/4 in. (measured without the mounting flange)
