Vehicle Info NeededTANKS INC.PART NUMBER: 246-GPA-A-U2

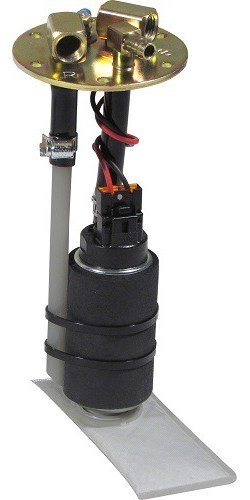

GPA-A-U2 GPA Series Fuel Pump Assembly No Pump, Sock, or Sleeve FOR U2 & U9 Tanks
$10499
2 left in stock
Ships Today
Lowest Price GuaranteeFuel Pumps
GPA Series Fuel Pump Assembly No Pump, Sock, or SleeveFor U2 & U9 Tanks
Tanks Inc. GPA-A-U2 Features:
- Heavy 10 gauge no-warp mounting plate
- 1/4 in. NPT Supply and Return Line
- Barbed Vent Fitting
- Oven brazed fittings
- Up to 100 PSI
- In-tank wire harness
- Genuine Walbro Fuel Pumps
- These Gerotor style pumps cannot be used with Pulse Width Modulation. For pumps that are compatible with PWM click here .
- If using with a FiTech system be sure to turn off PWM. For instructions click here.
- Note: Designed for use with Tanks Inc. U2 Series tanks. Includes gasket, strainer, and wiring harness. -6AN is the largest fittings that can be used due to tight clearance to mounting plate.
Part TypeFuel Pump
BrandTANKS INC.
Package Height4.0
Package Width4.0
Package Length22.0
Weight1.7 PG
Part CategoryReplacement Parts
Wiring Harness IncludedYes
Sending Unit IncludedNo
Pulley IncludedNo
Outlet Size1/4 in. NPT
Inlet Size1/4 in. NPT
Outlet Quantity1
Fuel Pressure Regulator IncludedNo
QuantitySold as a Kit
Mounting Hardware IncludedNo
RemanufacturedNo
Inlet AttachmentFemale threads
Fuel Pump TypeElectric In-tank
Gasket IncludedNo
Mounting Bracket IncludedNo
Flow Rate50 gph/190 lph
Outlet AttachmentFemale threads
Voltage12 V
Inlet Quantity1
Part FitmentUniversal
Fuel Pressure100 psi
Vendor Part NumberGPA-A-U2
Package Qty1
Package TypeEA
