Vehicle Info NeededSUNEXPART NUMBER: 344-6622

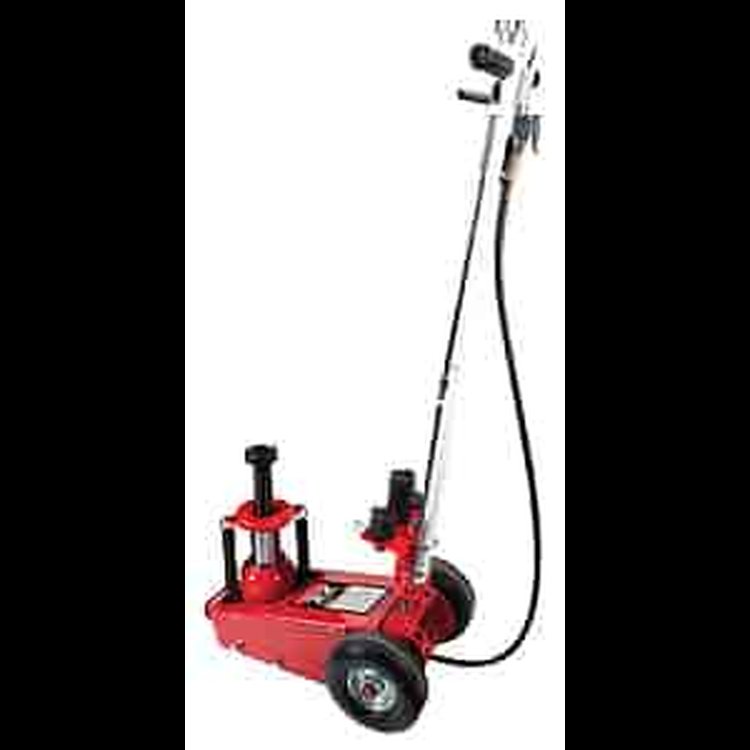

22 Ton Air/Hydraulic Truck Jack
$78299
Ships on Sep 03, 2026
Lowest Price Guarantee
Truck Jacks
22 Ton Air/Hydraulic Truck Jack
- Designed for heavy duty truck and trailer shop use, rail and bus work, and portable for roadside service calls.
- Narrow chassis design fits easlity between tandem wheels.
- Chassis base is contoured so wheels make contact with ground when jack is not under load and raises them off the ground when under load to prevent damage.
- Wiper seals protect hydraulic system from contaminants.
- Overload and bypass safety valves prevent the jack from being used beyond its rated capacity and ram over extension.
- Self-retracting ram
- Lever on
- Release knob on top of handle operates independently of handle locking lever.
- Integrated filter protects air motor.
- Four adaptors (1.875)
- Capacity (Tons) 22@100 PSI
- Chassis Length (in.) 23.25
- Extension Screw Travel (in.) 4.25
- Handle Length (in.) 41.25
- Low Height (in.) 8.375
- Maximum Height Adapter (in.) 21.125
- Overall Height (in.) 13.25
- Overall Width (in.) 7.75
- Ram Travel (in.) 4.75
- Saddle Diameter (in.) 1.75
- Shipping Weight (lbs.) 110
- Wheel Diameter (in.) 8
Part TypeFloor Jack
BrandSUNEX
Package Height10.75
Package Width15.5
Package Length25.75
Weight115.0 PG
Part CategoryAccessories
Jack Overall Length (In.)24.72 in.
Jack Overall Width (In.)15.12 in.
Maximum Lift Height21.125 in (536.575 mm)
Part FitmentUniversal
Minimum Height8.75 in (222.25 mm)
Vendor Part Number6622
Package Qty1
Package TypeEA
