Spohn Performance D94-99-209B-D94-99-604B Features:

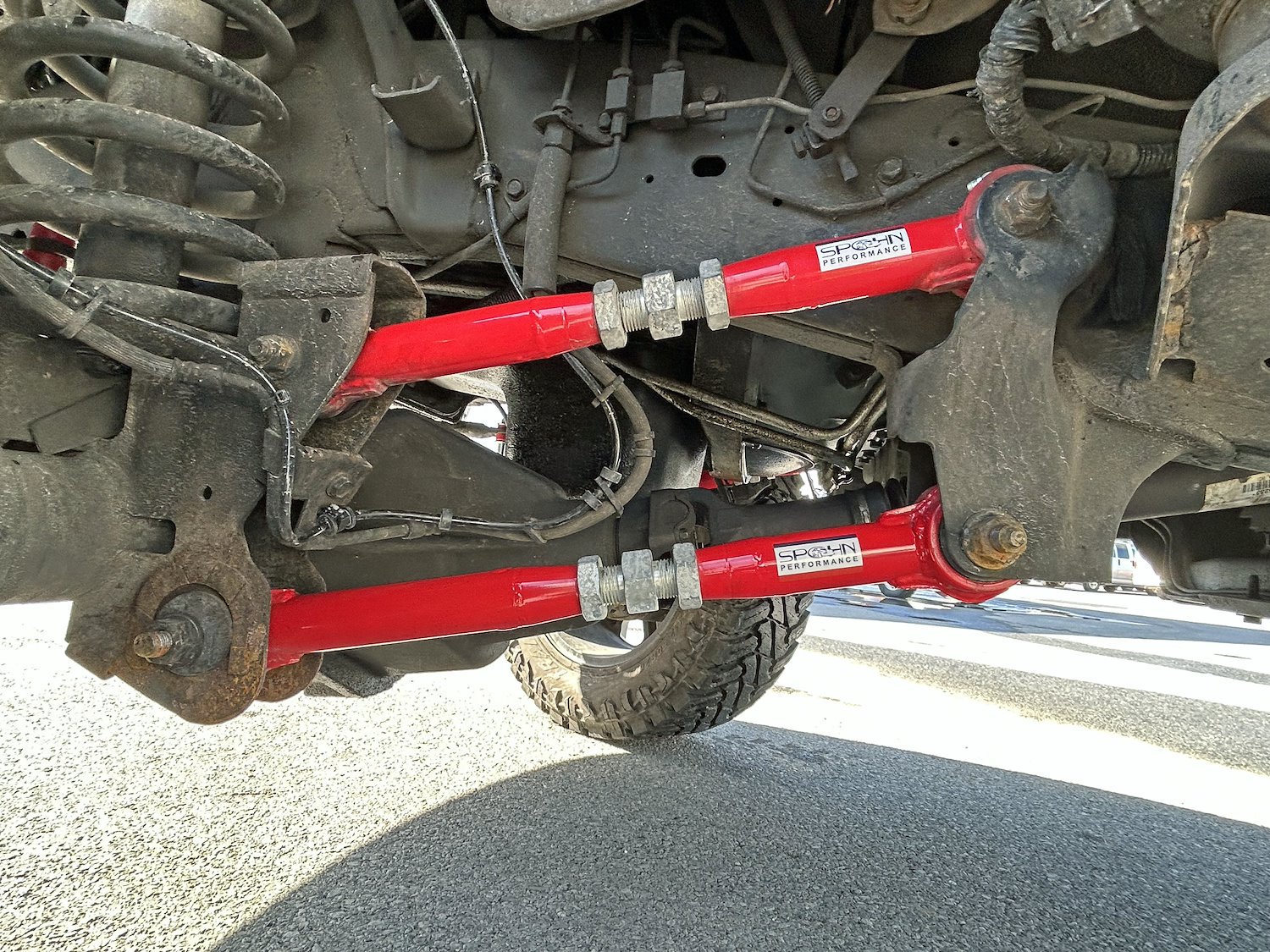

Replace the factory front lower and upper control arms on your 1994-1999 Dodge Ram truck with our extreme duty adjustable units! Increase traction and correct front end alignment after lifting the ride height with an easy bolt-on installation.

Our tubular adjustable front control arms are built to take a beating, provide for serious handling performance, and greatly increase the front housing's fore and aft stability.

The adjustability feature is designed for lengthening of the control arms, up to 1.00 in. longer than the factory control arms to maintain proper front end alignment after lifting your truck.

Our massive forged 4130 chrome moly 1 in.-12 right hand and left hand threaded CNC machined double male adjusters allow for easy on-the-truck adjustments, there's no need to unmount the control arms to make adjustments!

The front lower control arms feature our 100% maintenance-free Vulcan Series extreme-duty vulcanized natural rubber bushings that provide for a ride as smooth and quiet as factory, as well as long term durability and the front upper control arms feature low deflection polyurethane bushed (fluted) ends equipped with grease fittings for easy lubrication.

Front Position Eccentric Cam Bolts Included: We have yet to put these on a truck that we did not have to cut off the front position mounting cam bolts. Due to the design of the factory's front cam bolts, water can enter through the side of the bolt causing it to rust fast to the bolt sleeve inside of the front bushing. This front control arms package includes two (2) new Grade 12.9 adjustable eccentric cam bolts, two (2) cam washers, and two (2) flanged top lock nuts. Remember that when looking at our price!

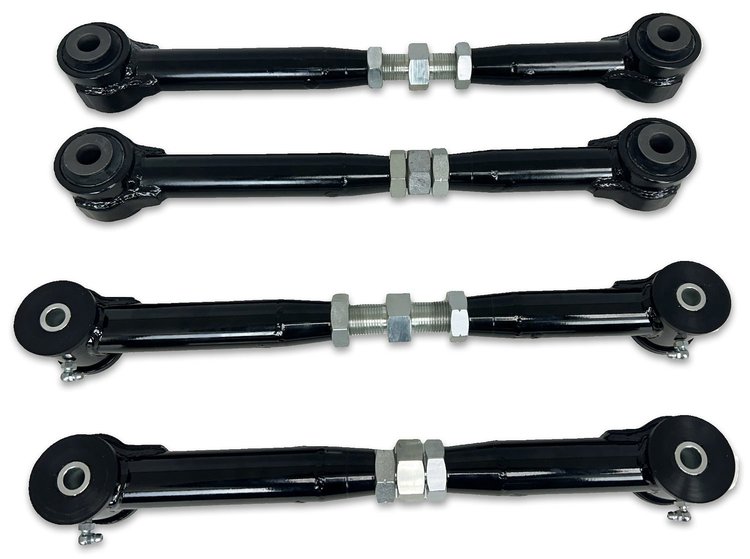

This package includes two (2) front lower control arms and two (2) front upper control arms.

• LCAs: 1.50 in. x 0.120 in. wall DOM tubing
• LCAs: 2.50 in. x 0.25 in. wall DOM bushing housing tubes
• LCAs: CNC laser cut and formed 3/16 in. thick steel bushing housing gussets top and bottom for maximum strength and durability
• LCAs: Vulcan Series extreme-duty vulcanized natural rubber bushings
• LCAs: Can be safely lengthened up to 1.50 in. to maintain proper front end alignment on lifted trucks
• LCAs: Massive 1 in.-12 right hand and left hand threaded silver zinc plated forged 4130 chrome moly double male adjusters
• LCAs: TIG welded 4130 chrome moly threaded tube adapters for maximum thread strength
• LCAs: Ships fully assembled and jig set at OEM length. Center-Center Lengths - OEM: 18.50 in. - Compressed: 18.00 in. - Extended: 20.00 in.
• LCAs: Includes new Grade 12.9 front position adjustable eccentric cam bolts, cam washers, and flanged lock nuts
• UCAs: 1.50 in. x 0.120 in. wall DOM tubing
• UCAs: Polyurethane bushed (fluted) ends equipped with grease fittings for easy lubrication
• UCAs: CNC laser cut and formed 3/16 in. thick steel bushing housing gussets top and bottom for maximum strength and durability
• UCAs: Can be safely lengthened over 1.00 in. to maintain proper front end alignment on lifted trucks
• UCAs: Massive 1 in.-12 right hand and left hand threaded silver zinc plated forged 4130 chrome moly double male adjusters
• UCAs: TIG welded 4130 chrome moly threaded tube adapters for maximum thread strength
• UCAs: Ships fully assembled and jig set at OEM length. Center-Center Lengths - OEM: 17.1875 in. - Compressed: 16.00 in. - Extended: 18.25 in.
• These are the highest quality, easiest to adjust on-the-truck front control arms on the market!
• Easy 100% bolt-in installation using factory hardware with the use of basic hand tools
• Powder coated for a brilliant and durable finish
• Color: Black
• Adjustable: Yes
• Construction: Tubular
• Finish: Powder Coated
• Bushings Included: Yes
• Control Arm Material: Steel
• Grade Type: Performance
• LCA Bushing Color: Black
• LCA Bushing Material: Rubber
• LCA Cam Bolts Included: Yes
• LCA Compressed Length: 18.00
• LCA End 1 Type: Bushing
• LCA End 2 Type: Bushing
• LCA Extended Length: 20.00
• LCA Mounting Hole Diameter: 14
• LCA OEM Length: 18.50
• UCA Bushing Color: Black
• UCA Bushing Durometer: 95
• UCA Bushing Material: Polyurethane
• UCA Bushings Greaseable: Yes
• UCA Bushings Included: Yes
• UCA Compressed Length: 16.00
• UCA End 1 Type: Bushing
• UCA End 2 Type: Bushing
• UCA Extended Length: 18.25
• UCA Grease Fittings Included: Yes
• UCA Mounting Hole Diameter: 12
• UCA OEM Length: 17.1875
• UCA Pre-Greased: Yes
