Made in USA

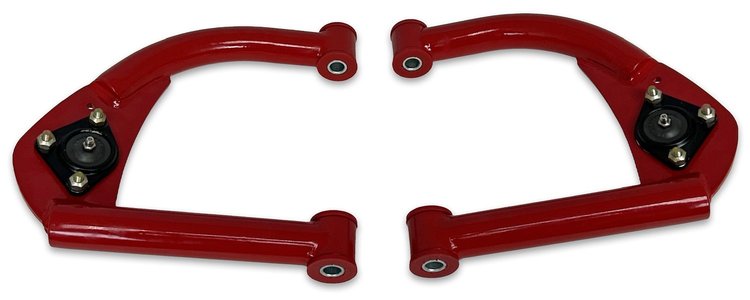

742-4130R-K6462 Tubular Front Upper A-Arms w/ Poly Bushings, 1993-2002 GM F-Body [Bright Red]
InfoVehicle Info Needed
SPOHN PERFORMANCEPART NUMBER: 267-J000010

742-4130R-K6462 Tubular Front Upper A-Arms w/ Poly Bushings, 1993-2002 GM F-Body [Bright Red]

$42700
ShippingShips on Sep 03, 2026
Lowest PriceLowest Price Guarantee

GM F-Body

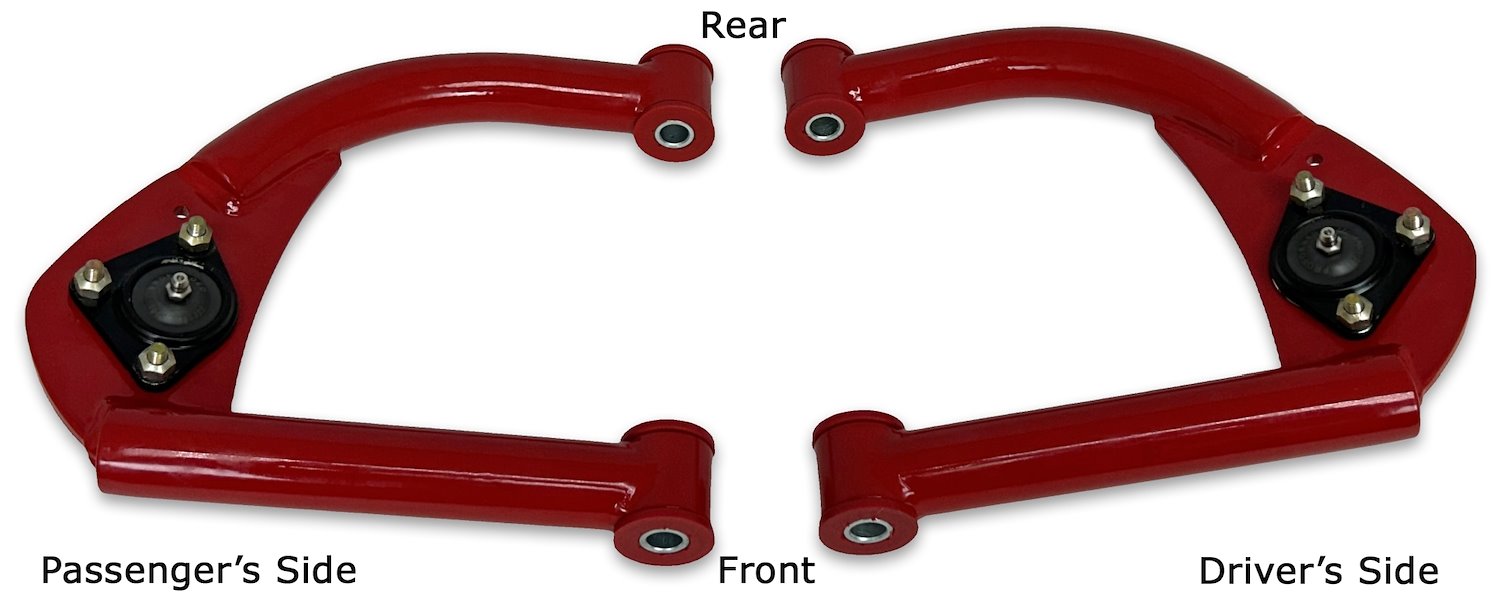

Tubular Front Upper Control A-Arms w/ Polyurethane Bushings
  • 1993-2002 GM F-Body
  • 4130N Chrome Moly
  • Includes Ball Joints
  • Bright Red

    Spohn Performance 742-4130R-K6462 Features:

    Spohn Performance's 4130N chrome moly tubular front upper control a-arms for the 1993-2002 GM F-Body Camaro & Firebird set a new, higher standard of performance and quality. When we designed our upper a-arms, we had two goals in mind.
    One was to provide the performance capabilities needed for the toughest race tracks, the second was to provide the strength and durability required for the demands of a daily driven vehicle. We're proud to say that we have accomplished both.
    They decrease overall weight, and more importantly, in.unsprung in. weight. These feature low deflection greaseable fluted polyurethane bushings for smooth rotation, resulting in increased rigidity and a precise steering feel.
    This package includes premium greaseable ball joints installed with high quality Grade 8 mounting hardware.
    Powder coated for a brilliant and durable finish.
    Priced per Pair -- Qty. 1 = 1 Pair

    • 1.25 in. x 0.095 in. wall 4130N Chrome Moly tubing
    • CNC laser cut and machined 1/4 in. thick steel ball joint mounting plate with -3º improved ball joint angle for lowered ride height
    • Polyurethane bushings (fluted) with grease fittings for easy lubrication
    • Powder coated for a brilliant and durable finish
    • Stronger, yet lighter than stock
    • Premium greaseable ball joints are included
    • Ship fully assembled and ready to install
    • Your Choice for Best-Performing Tubular Control Arms

      Spohn Performance Tubular Control Arms and Components redefine performance and quality, setting a higher standard. Engineered from aerospace-level technology and design tools, these control arms deliver exceptional handling, responsiveness, weight savings, strength, and durability for daily driving or track days. Upgrade your outdated OE factory control arms and hardware for a remarkable blend of precision performance and superior ride comfort. Available in front and rear, upper and lower applications.

    Part TypeControl Arm
    Product LineSpohn Performance Tubular Control Arms and Components
    BrandSPOHN PERFORMANCE
    Package Height6.0
    Package Width10.0
    Package Length10.0
    Weight11.0 PG
    Part CategoryPerformance Parts
    Grease Fitting IncludedYes
    Pre-GreasedYes
    ConstructionTubular
    Bushing FinishRed
    Bushing MaterialPolyurethane
    Mounting Hardware IncludedNo
    Material4130N Chrome Moly
    Mounting TypeBushing
    AdjustableNo
    Mounting Hole Diameter12 mm
    GreaseableYes
    Ball Joints IncludedYes
    Part FitmentDirect Fit
    FinishBright Red
    Bushings IncludedYes
    Vendor Part Number742-4130R-K6462
    Package Qty1
    Package TypeEA
    No Questions
    No Reviews
