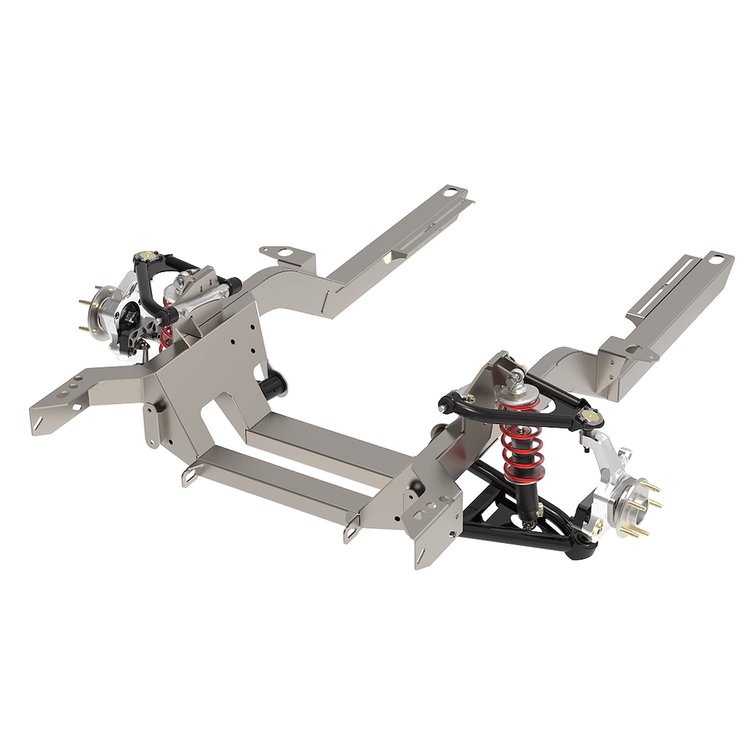

For maximum handling and performance, upgrade to Speedtech's High Clearance tubular control arm set to hold up to a P275 tire on a 10'' wheel. The subframe accepts small and big block Chevy engines using the stock oil pan as well as the popular GM LS series engines using most after market oil pan and motor mount adaptors.

• Strong Box type laser cut and jig welded construction, reduced weight over factory frame, only 125 lbs.
• Factory alignment holes offer ease in the installation and alignment of the subframe to the body and bumper.
• Guldstrand mod geometry already built-in, upper control arm mounts feature additional camber curve adjustability.
• Set up for true coil over shocks and rack and pinion type steering.
• Accepts Air Ride Shockwave systems.
• Directly bolt on any factory replacement tubular control arms that worked with your original frame
• Will also work with factory style spring set up
• Extra adjustments built into the frame to fine tune your suspension.
• Built-in tow/ tie down hooks eliminate strapping around painted frames.
• Can reuse your existing sway bar if using any factory replacement tubular control arms
• Motor stands accept small or big block engines with stock type oil pan.
• Accepts LSX engines with Speedtech fabricated oil pan and motor mounts.
• Increased header and exhaust clearances
• Fully adjustable rear cross member fits all GM transmissions as well as T-56 and TKO.

  The Bare Subframe works with the following required/optional parts:
• Unisteer Power Rack and Pinion System p/n 668-8010540-01 or Unisteer Manual Power Rack and Pinion System p/n 668-8000770-01 (required)
• QA1 Coil-Over shocks p/n 122-DS402 (or equivalent - optional)
• QA1 T-bar Kit for shocks p/n 122-BAR350K (required if QA1 shocks are used)
• Speedtech Sway Bar exclusively for use with Speedtech High Clearance Control Arms p/n 967-233505 (required only if Speedtech High Clearance Control Arms are used)

  Complete Bare Subframe Packages also include:
• Speedtech geometry correcting High Clearance upper and lower tubular control arms, powder coated gloss black and fully assembled. Speedtech High Clearance control arms have been tested to fit a 18'' x 10'' wheel with a 7'' back space
• Heat treated high clearance tubular 1 1/4" sway bar kit, powder coated gloss black.
• Power rack and pinion unit with steering arms for use with GM Camaro spindles or optional ATS AFX spindles.
• Viking Double adjustable coilover shocks, including thrust washers and adjusting wrench.
• Adjustable engine frame stands.
• Mounting hardware, instructions, and custom alignment specs.






  Note: Custom Show Quality Powder Coated Frame and Components Shown for Illustration Purposes. Speedtech offers optional Subframe Powder coating in Flat Black, Semi-Gloss Black and Gloss Black for an additional $500.00 charge or in Gunmetal Grey and Silver for an additional $550.00 charge.
